Whole Home Mesh Wireless AC1200 Kit

Wireless network coverage for the whole house

Work and play are easier and more enjoyable when your laptops, smartphones and tablets can connect to your wireless network from nearly anywhere in your home. The Intellinet Solutions Whole Home Mesh Wireless AC1200 Kit offers hassle-free connections to your home network in spaces that range from 280 to 418 m² (3,000 to 4,500 sq. ft.) so you can get online quickly with the best connection every time. With one advanced router and two powerful repeaters, this kit uses intelligent mesh technology to help your devices find the quickest path to the network, promoting better coverage than a standard wireless repeater or extender can achieve.

Easy touch-and-connect function for guests

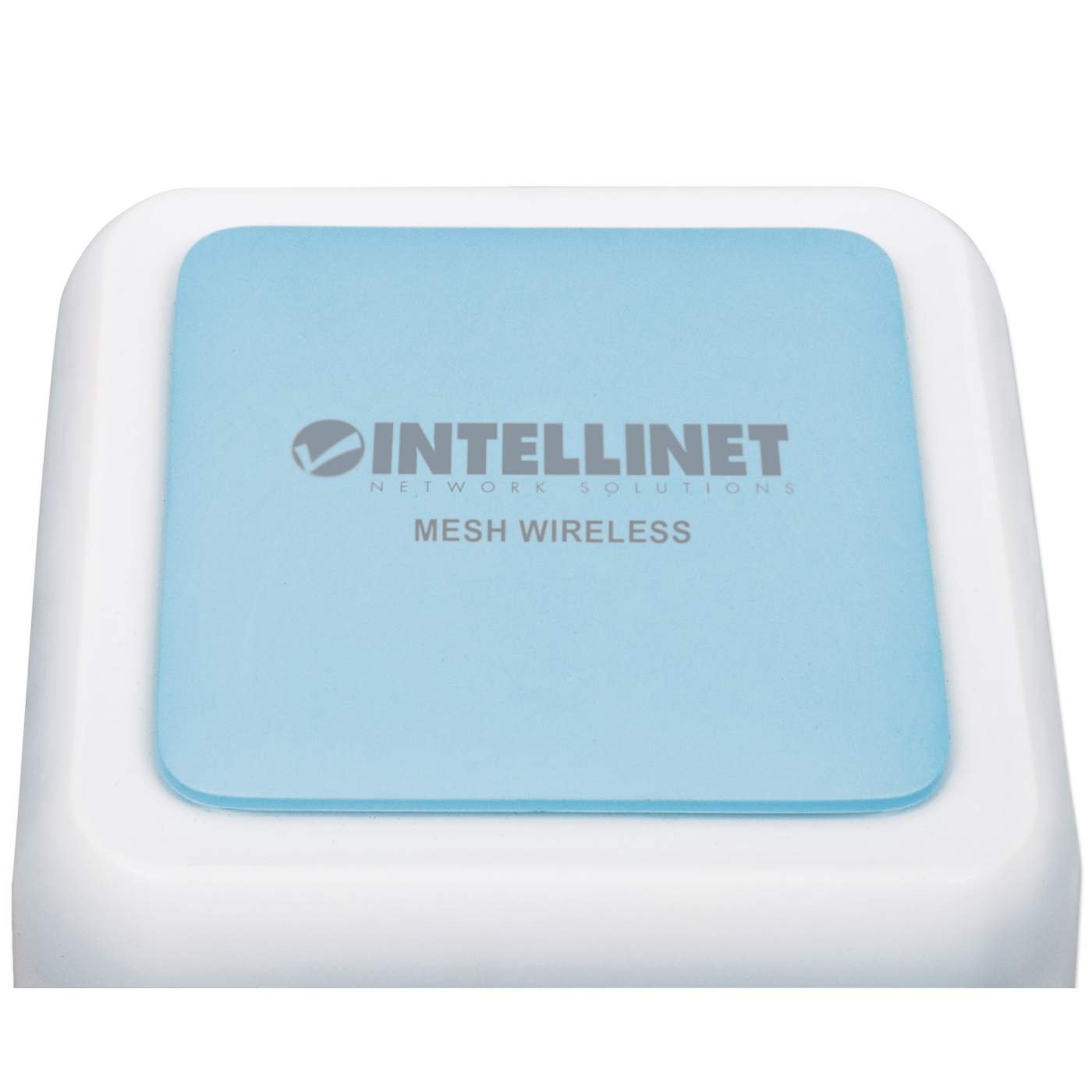

The Mesh Wireless Kit offers a unique touch-and-connect feature you activate that grants wireless access to guests who are within the wireless mesh network you have created. All you need to do is touch the sensing area on the router or repeaters, and your guests are quickly connected to your network without needing a password.

Setup and management across multiple devices

The Whole Home Mesh Wireless AC1200 Kit works on Windows and Mac OS X systems. Setup and management of the mesh network are made easy by using the Intellinet App — available through Google Play, Android Market or Apple App Store — or through a wired or wireless Ethernet connection. And in just a few easy steps, you're ready to enjoy better wireless access throughout your home.

Standards

• IEEE 802.11b (11 Mbps Wireless LAN)

• IEEE 802.11g (54 Mbps Wireless LAN)

• IEEE 802.11n (300 Mbps Wireless LAN)

• IEEE 802.11ac (1200 Mbps Wireless LAN)

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3ab (1000Base-T Gigabit Ethernet)

  Certifications

• FCC Class C & E

• CE

• RoHS

  General

• Flash: 64 MB

• Memory: 512 MB DDR2 RAM

• Chipset: MT7620A + MT7612E + RTL8211F

  Wireless

• Wireless frequency range: 2.4 – 5 GHz

• Link speed:
  5 GHz – up to 867 Mbps
  2.4 GHz – up to 300 Mbps

• Output power:
  2.4 G – 20 dBm max.
  5 G – 23 dBm max.

• Security: WPA/WPA2, WPA-PSK/WPA2-PSK encryption


• Antennas:
  Four 3-dBi omni-directional internal antennas per unit

  LEDs

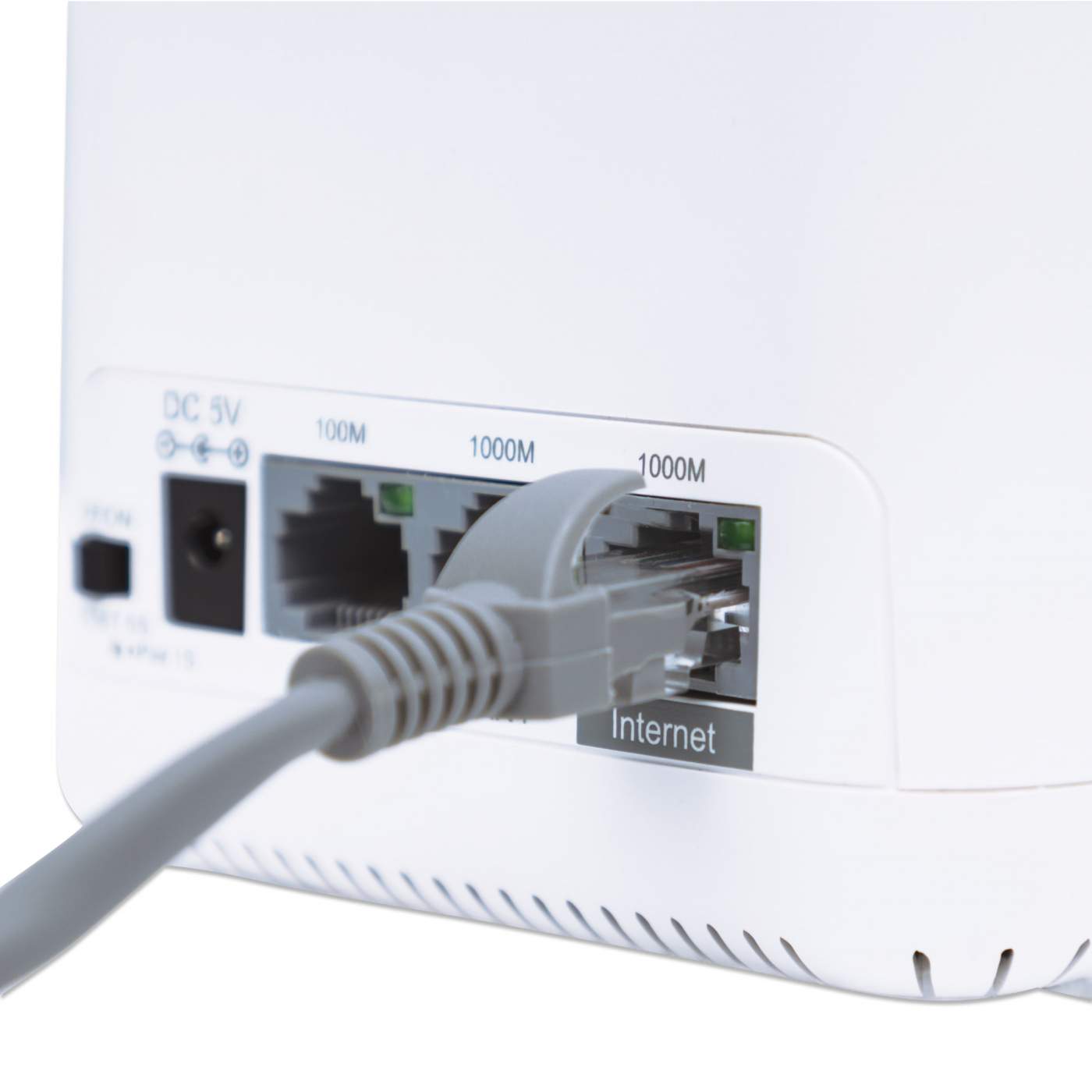

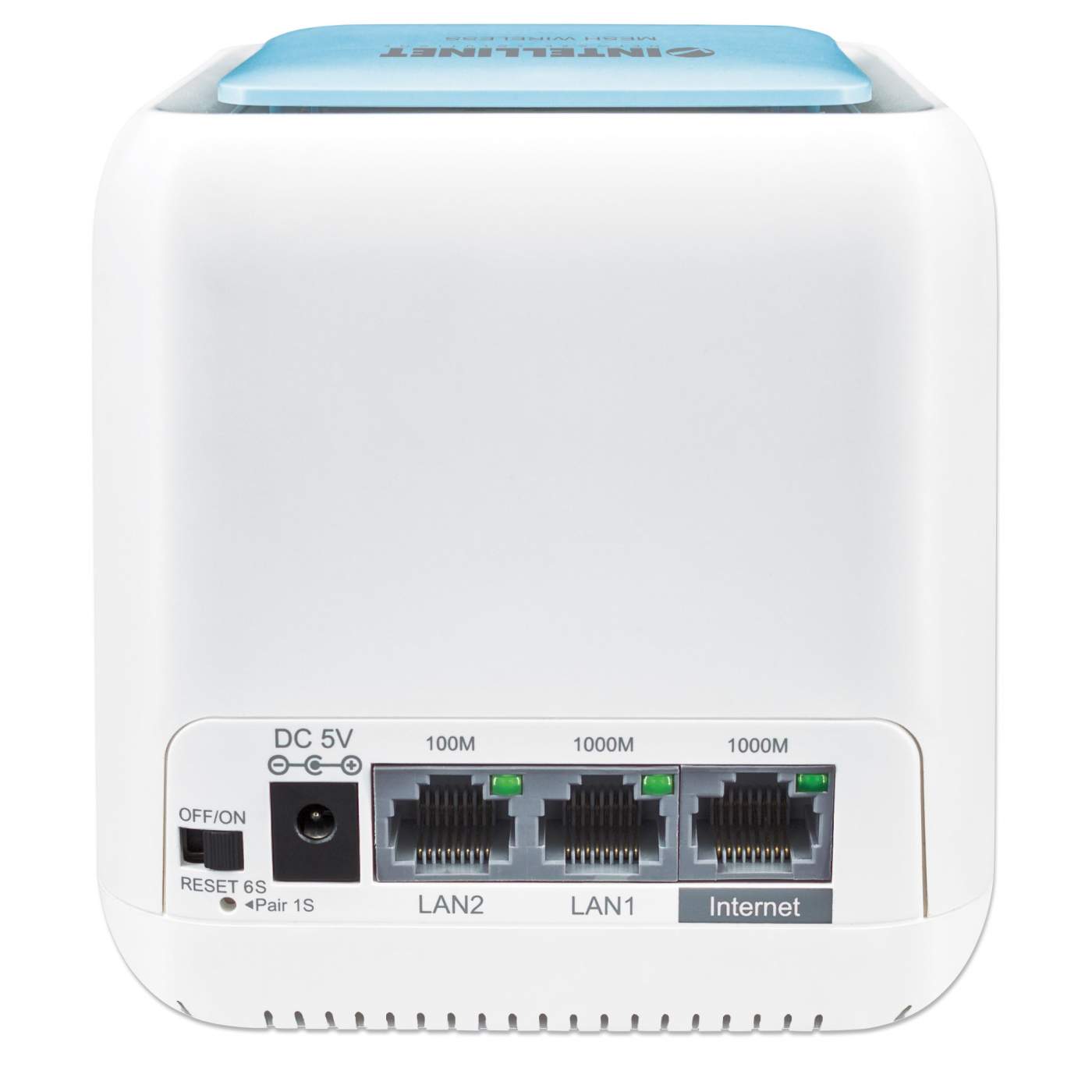

• Data activity on LAN and WAN ports

• Router and repeater status
  One dynamic-lighting status indicator:
  - Red: No Internet access;
  - Blue: On — normal access to the Internet; Flashing — pairing function in progress or guest access connection is in operation

  Physical

• Dimensions (per unit): 100 (L) x 100 (W) x 105 (H) [mm] / 3.94 (L) x 3.94 (W) x 4.13 (H) [in.]

• Weight (per unit): 315 g (0.7 lb.)

  Environmental

• Operating temperature: 0 – 40°C (32 – 104°F)

• Operating humidity: 10 – 90% RH, non-condensing

• Storage temperature: -10 – 70°C (14 – 158°F)

  Power

• External power adapter (each): 5 V DC, 2 A

  Package Contents

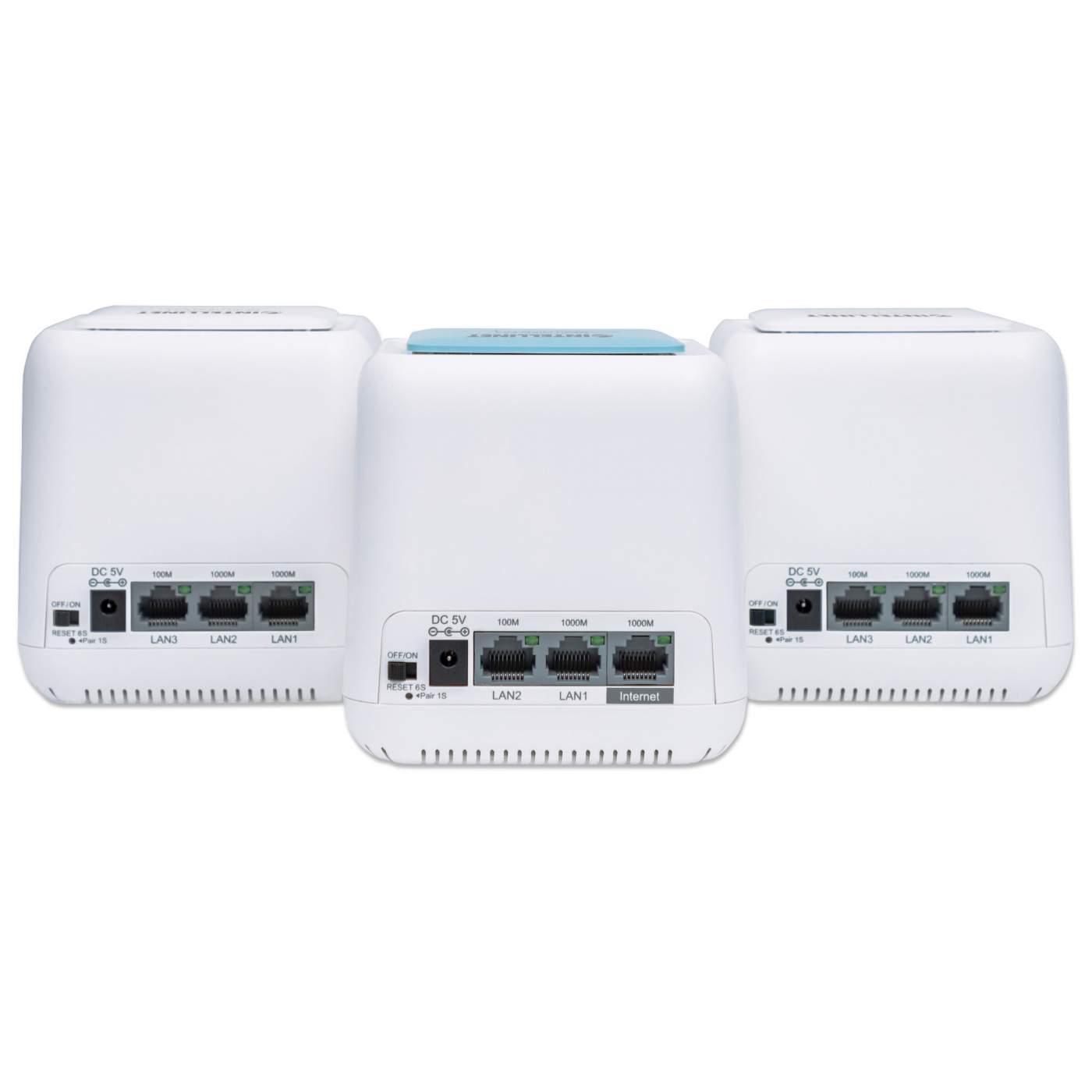

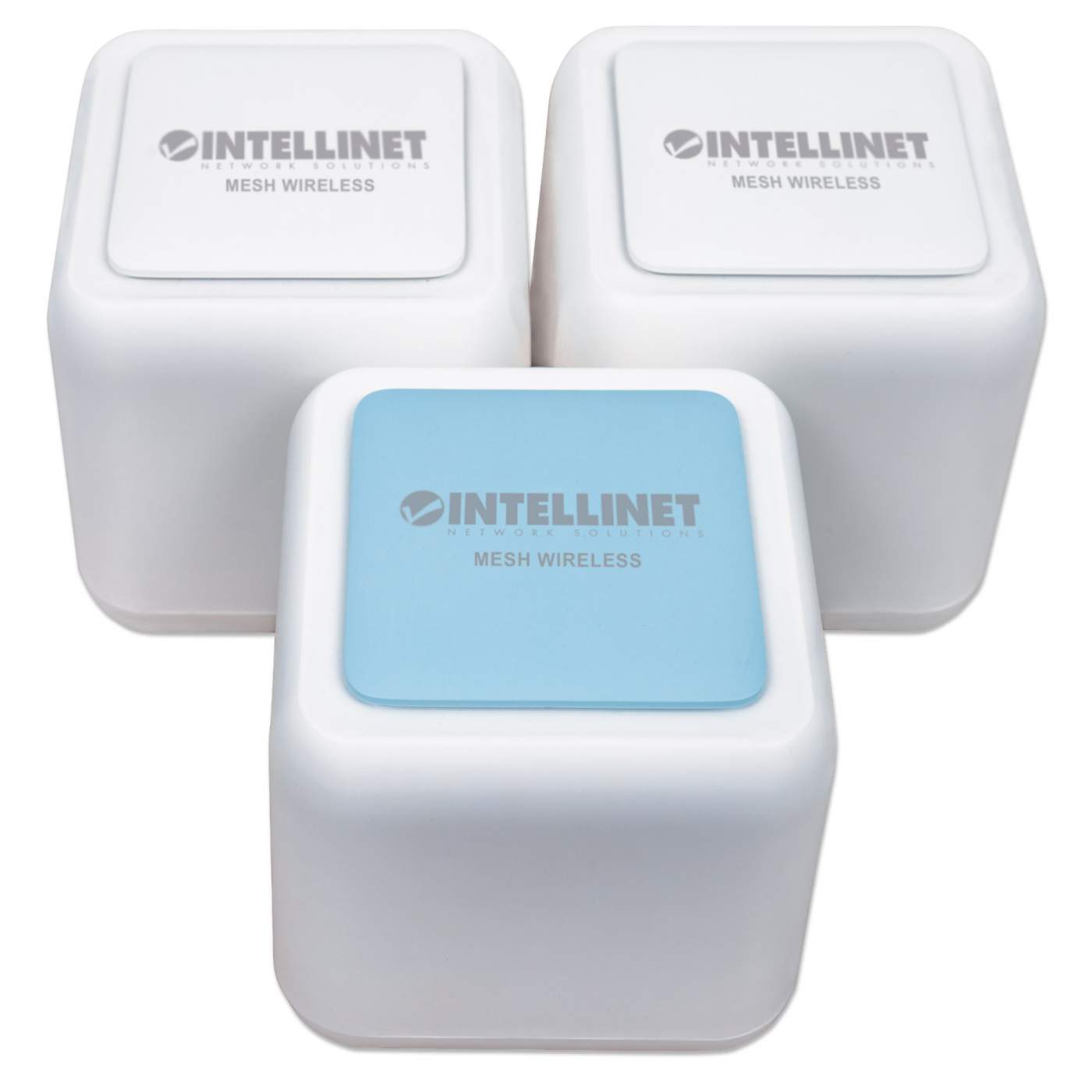

• Whole Home Mesh Wireless AC1200 Kit with one router and two repeaters

• Three power adapters

• One patch cable

• Quick Instruction Guide

• Additional SKUs

• Alphanumeric Part#: IW-MESH1200
• Amazon ASIN: B07VWRY85J
• EAN: 0766623525725
• UPC: 766623525725



• Physical Specifications

• Product net weight: 1.13 kg
• Dimensions: 100 (L) x 100 (W) x 105 (H) [mm]
• Packaging: Retail Box
