Outdoor Gigabit PoE++ Extender
Outdoor Gigabit PoE++ Extender
IEEE 802.3bt (4PPoE) Compliant, One PD Port up to 65 W, IP67 Waterproof and Dustproof Aluminum Housing, Extends PoE from 100 m (328 ft.) to 200 m (656 ft), Daisy-chainable up to Five Units, Wall-Mountable
SKU: 562348 IPE-ODG65
In stock
Request access to B2B pricing here.
Couldn't load pickup availability
Highlights
- Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
- Delivers up to 65 W to a connected PoE device

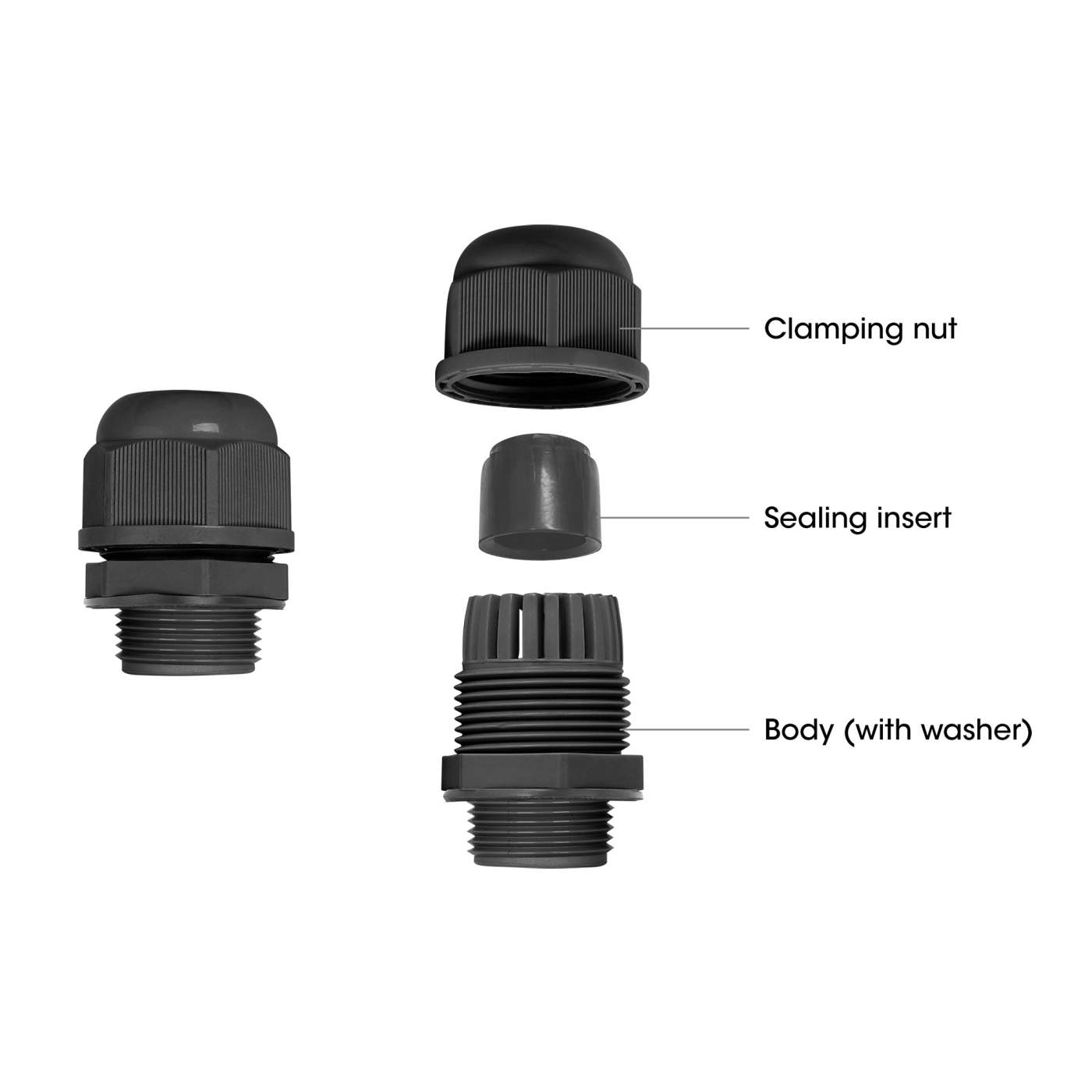

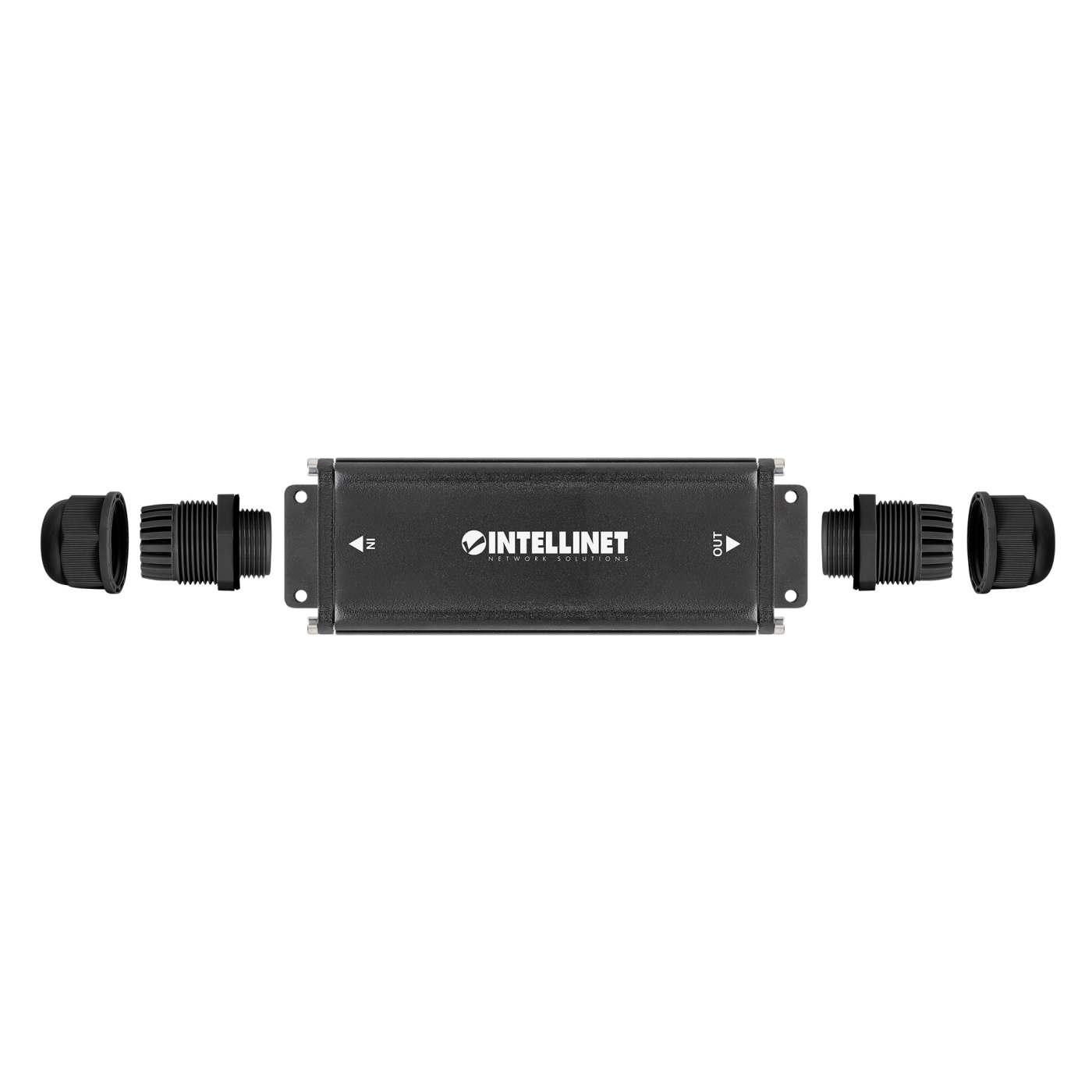

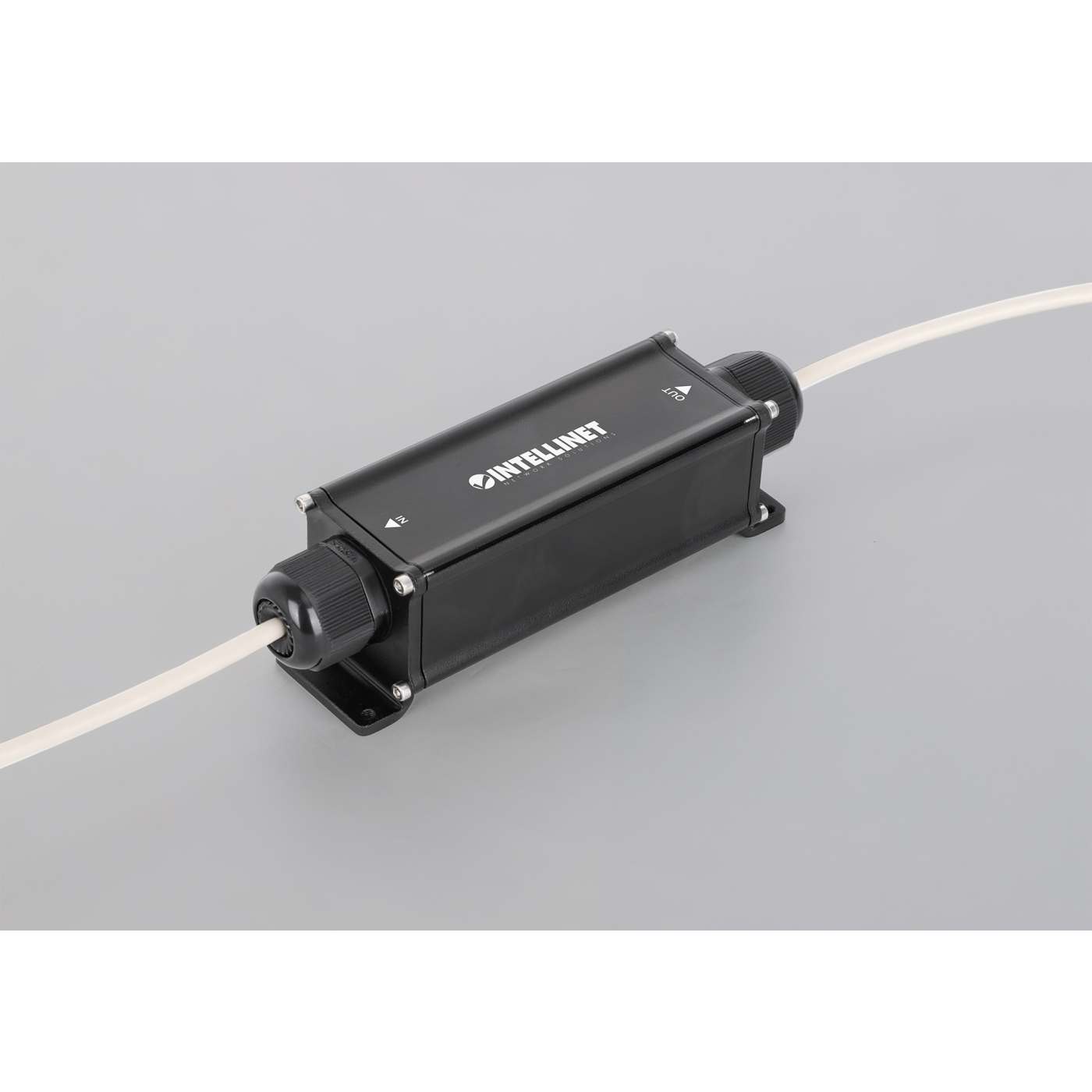

- IP67-rated aluminum housing, dustproof and waterproof with cable glands for secure outdoor installation
Outdoor PoE++ Extender Repeater - double the range of your Gigabit Power over Ethernet connection, even in harsh conditions
The Intellinet Network Solutions Rugged Gigabit PoE++ Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to one output device via network patch cable. This PoE++ (4PPoE) extender does not need an additional power supply since it draws its power from the PoE input.

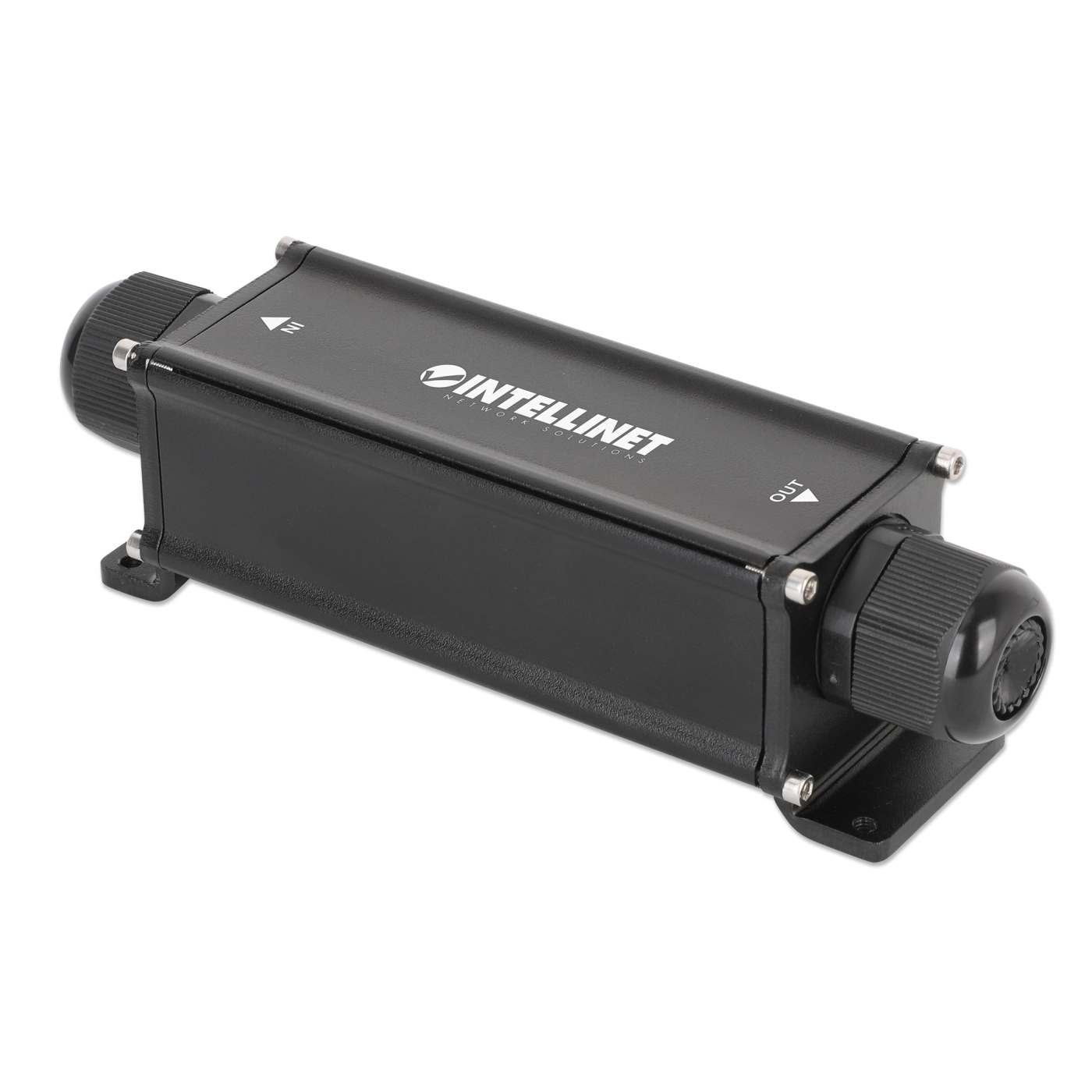

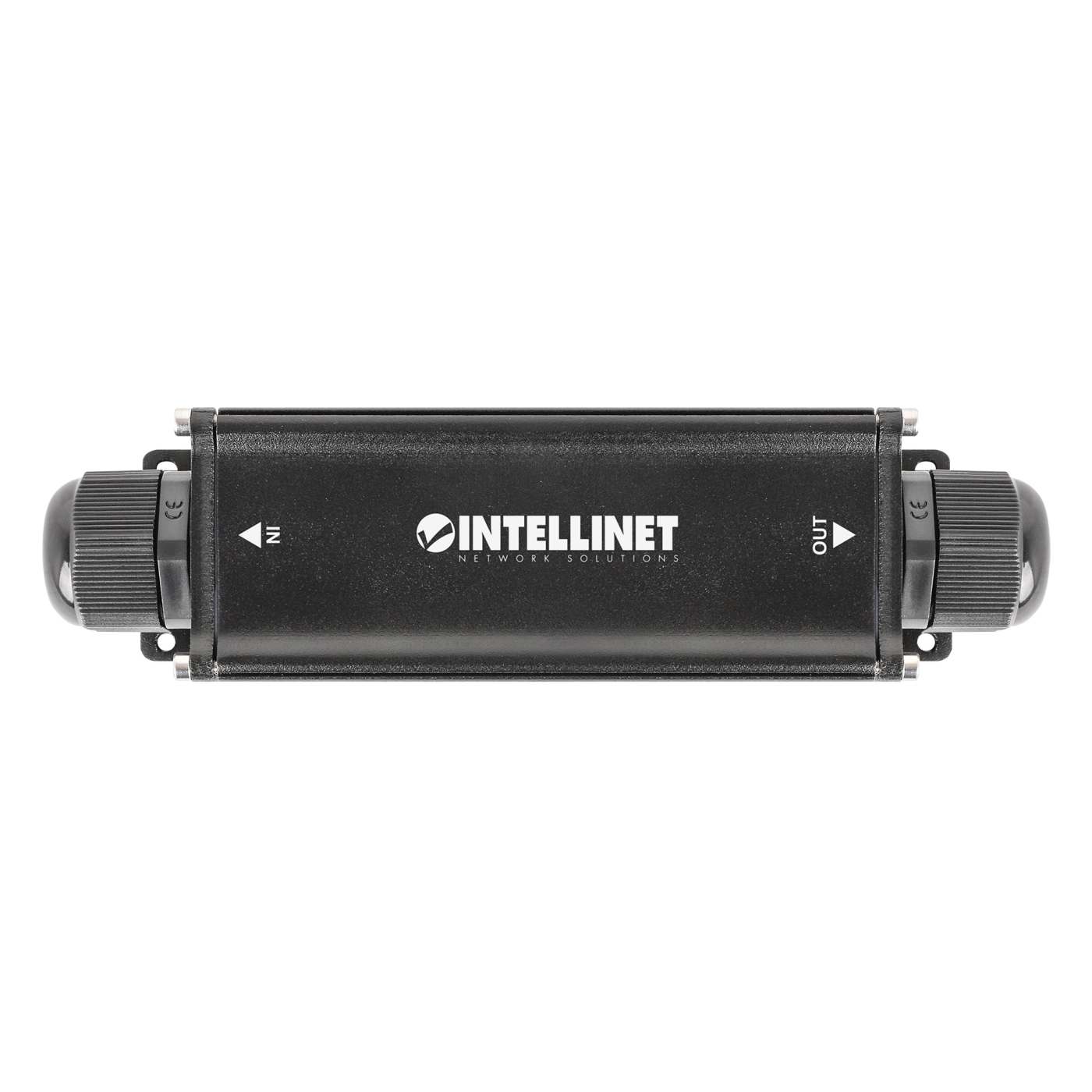

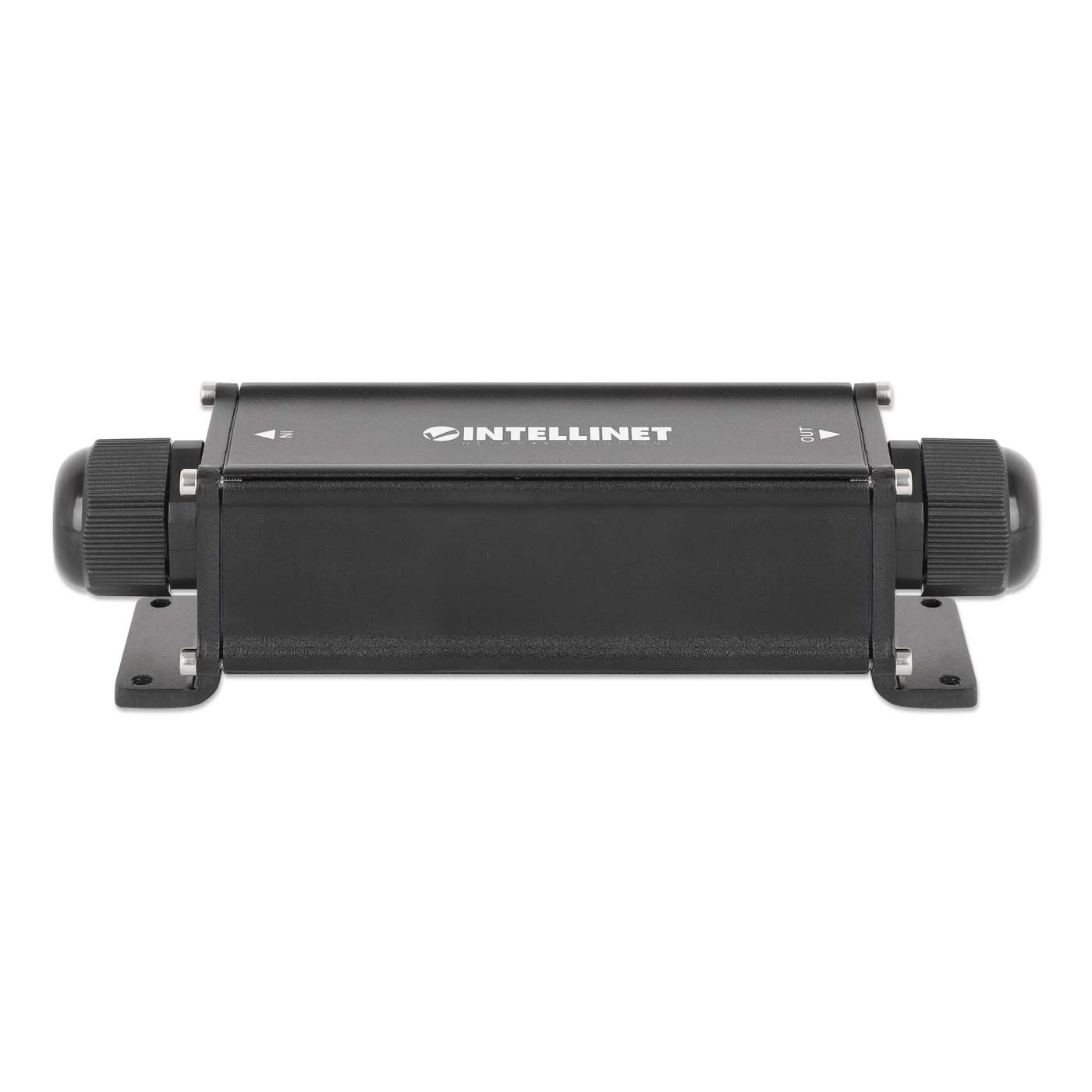

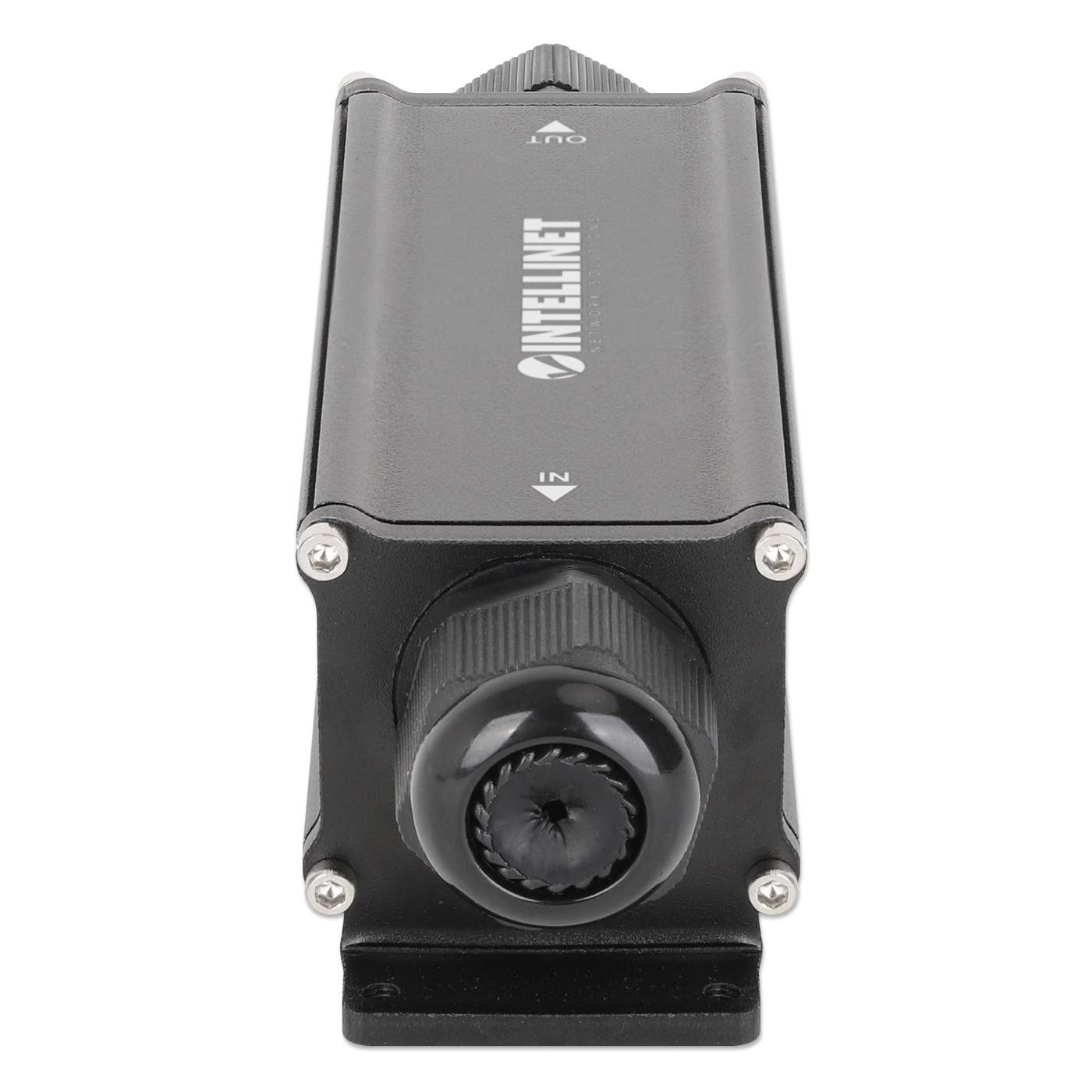

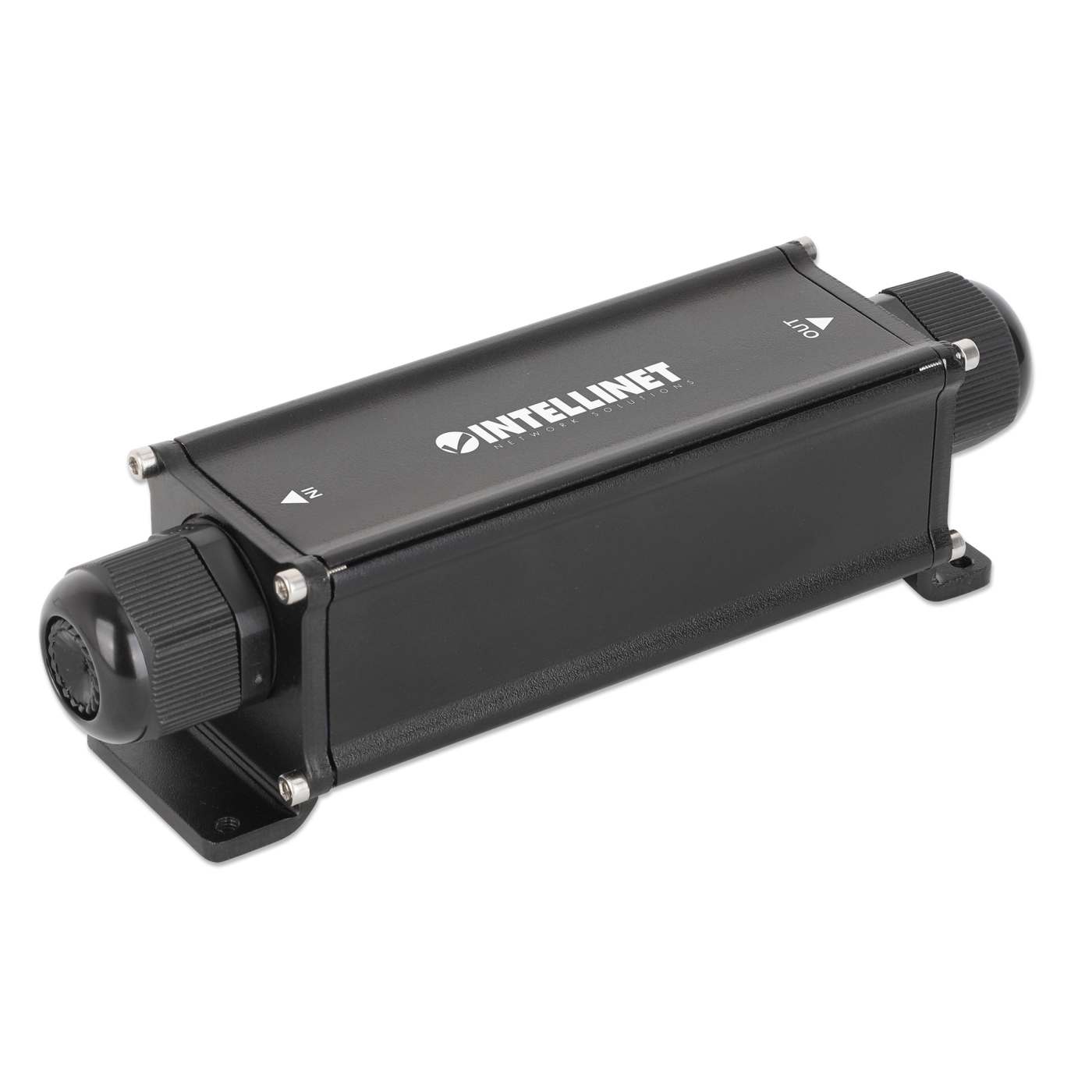

IP67-rated Rugged Aluminum housing for outdoor and industrial use
This Power over Ethernet extender was designed to give you the network connections you need in places that are less than calm or temperate. Its weatherproof IP67 (waterproof and dustproof) rating and vast operating temperature range of -40 to 75°C (-40 to 167°F) make it able to withstand harsh conditions and industrial environments.
Reduced Wiring Costs
It helps avoid the expense of running AC power lines for a wireless access point, network camera, IP phone, or other compatible device. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver power as well as transfer data.
Power over Ethernet 802.3bt Compliant
The 4PPoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 95 W. It forwards data at Gigabit speeds and offers up to 65 watts to a connected, IEEE 802.3bt-, IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 m (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).
Simple Installation

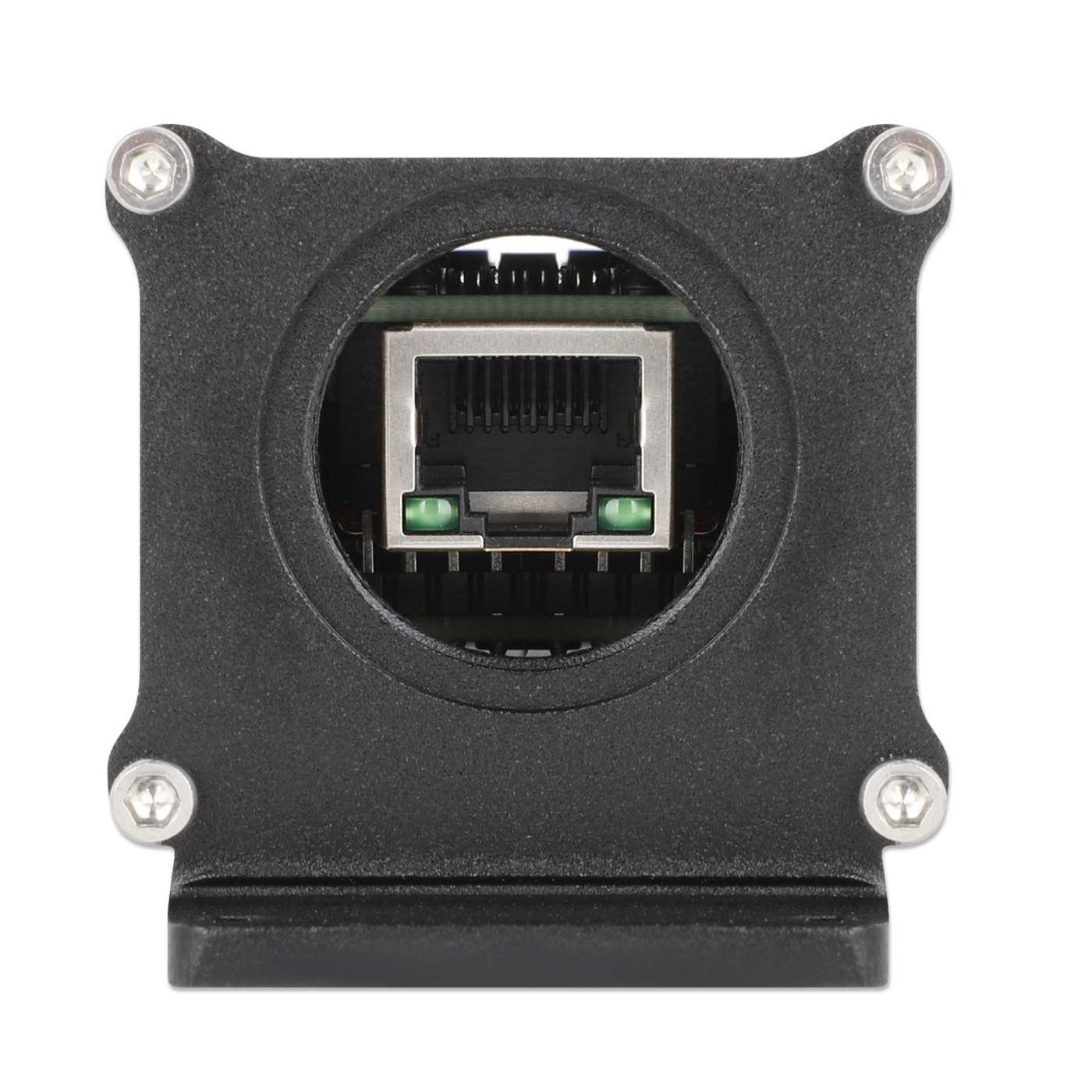

This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its PoE In port to your PoE injector or PoE switch and to connect the PoE Out ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).
Cascading Power
For larger deployments, up to five extenders can be daisy-chained to achieve a total PoE distance of up to 600 meters (1969 ft.). This makes it ideal for network cameras, wireless access points, VoIP phones, and other IEEE 802.3bt/at/af-compliant devices in warehouses, factories, campuses, or commercial buildings.
