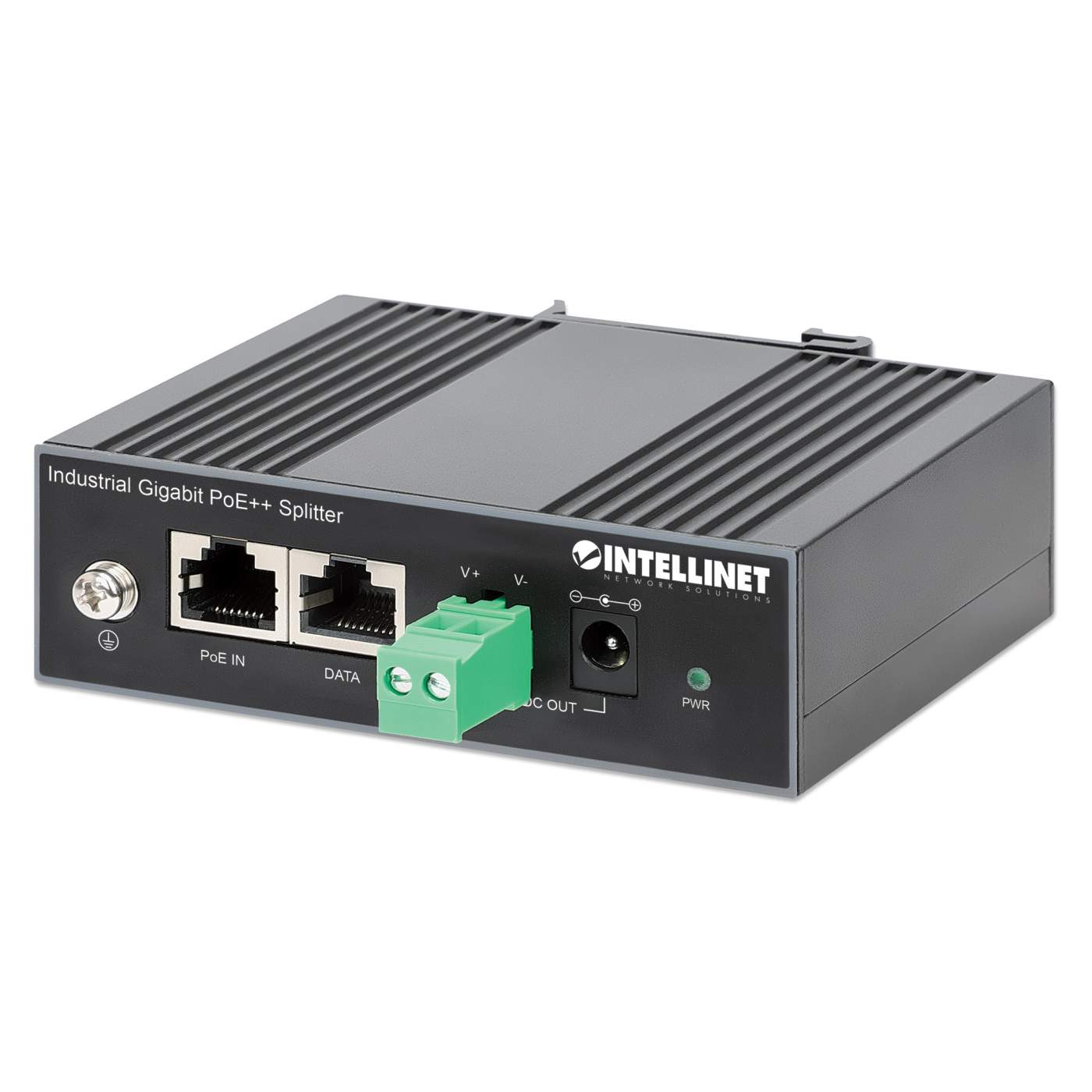

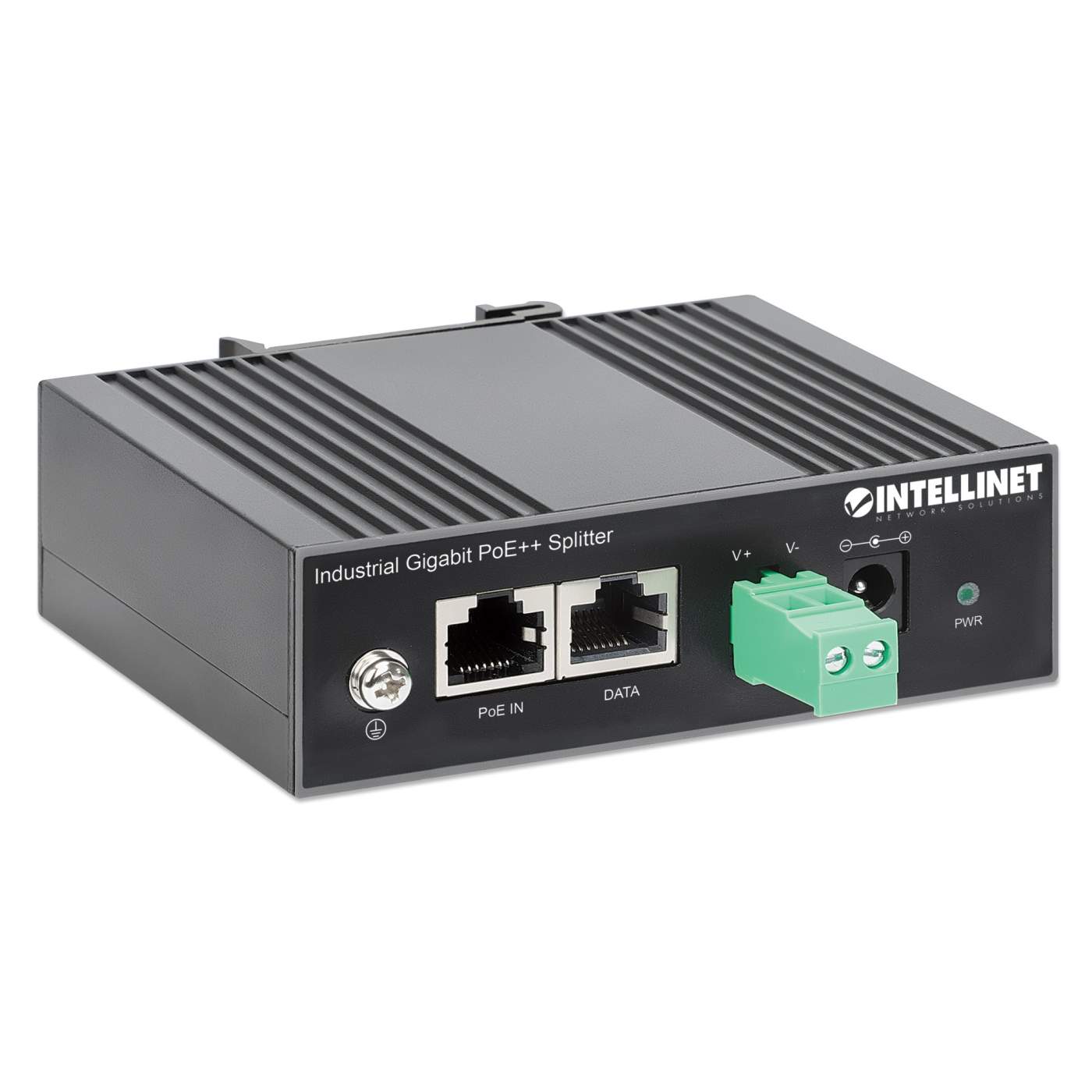

Industrial Gigabit PoE++ Splitter 60 W

Turn a higher-power PoE link into separate DC/terminal-block power and Gigabit data connections

Need power but don’t have an outlet? Take it from your PoE network with the Intellinet Industrial Gigabit PoE++ Splitter. With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 51 W to a non-PoE device in tough or industrial environments via your choice of output — a 2-pin terminal block or a DC jack — and still provide a gigabit network connection. It’s a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it’s cheaper in both time and money than hiring an electrician.

• Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
• Two DC outputs with power up to 12 V / 4.25 A / 51 W via 2-pin terminal block or DC jack
• One RJ45 input port up to 60 W from an IEEE 802.3bt/at/af-compliant PoE injector or PoE switch (PSE)
• One RJ45 output port with 10/100/1000 data rates
• IP30-rated metal housing to withstand harsh industrial conditions
• Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF)

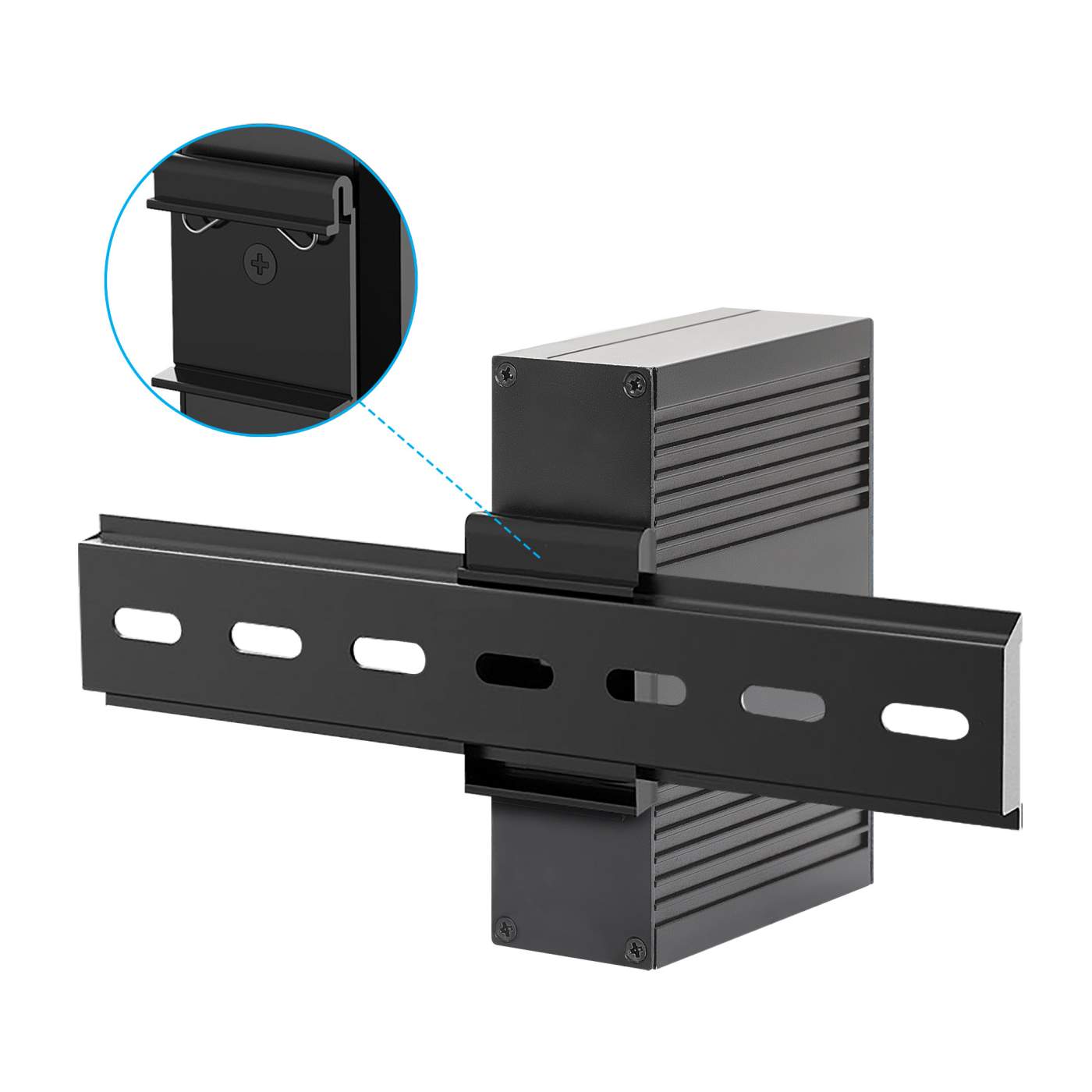

• Option for DIN-rail installation
• Distance support: up to 100 m (328 ft.)
• Short-circuit, overload and high-voltage protection
• Grounding point to protect equipment from external electrical surges
• ESD protection up to 8 kV (air) and 6 kV (contact)
• Port surge protection up to 2 kV
• Fully NDAA-compliant
• Three-year warranty

Standards

• IEEE 802.3af (Power over Ethernet)

• IEEE 802.3at (High-Power PoE+ Power over Ethernet)

• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3ab (1000BASE-T Gigabit Ethernet)

  General

• Media support:
  - 10Base-T Cat5e/6/6a UTP/STP RJ45
  - 100Base-TX Cat5e/6/6a UTP/STP RJ45
  - 1000Base-T Cat5e/6/6a UTP/STP RJ45

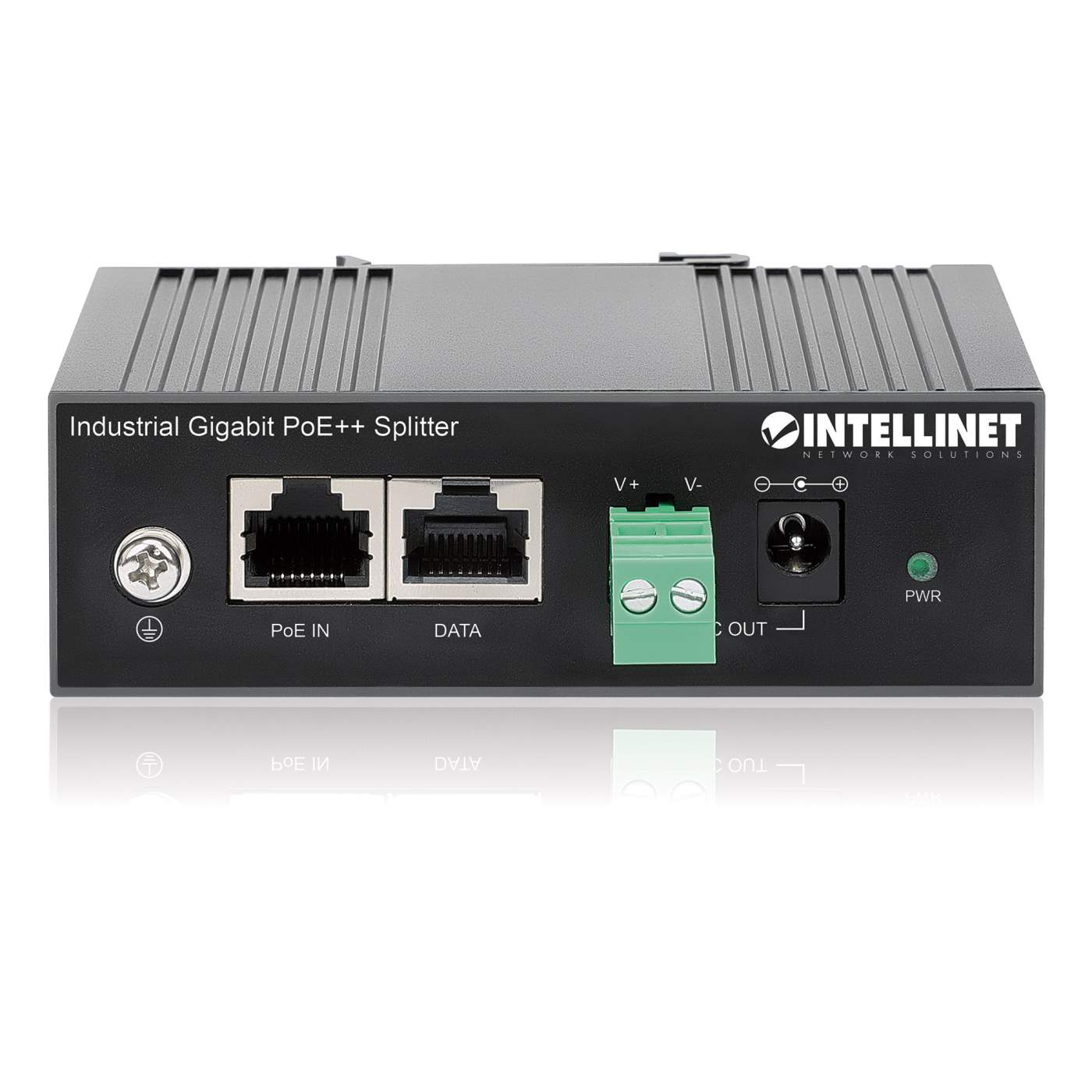

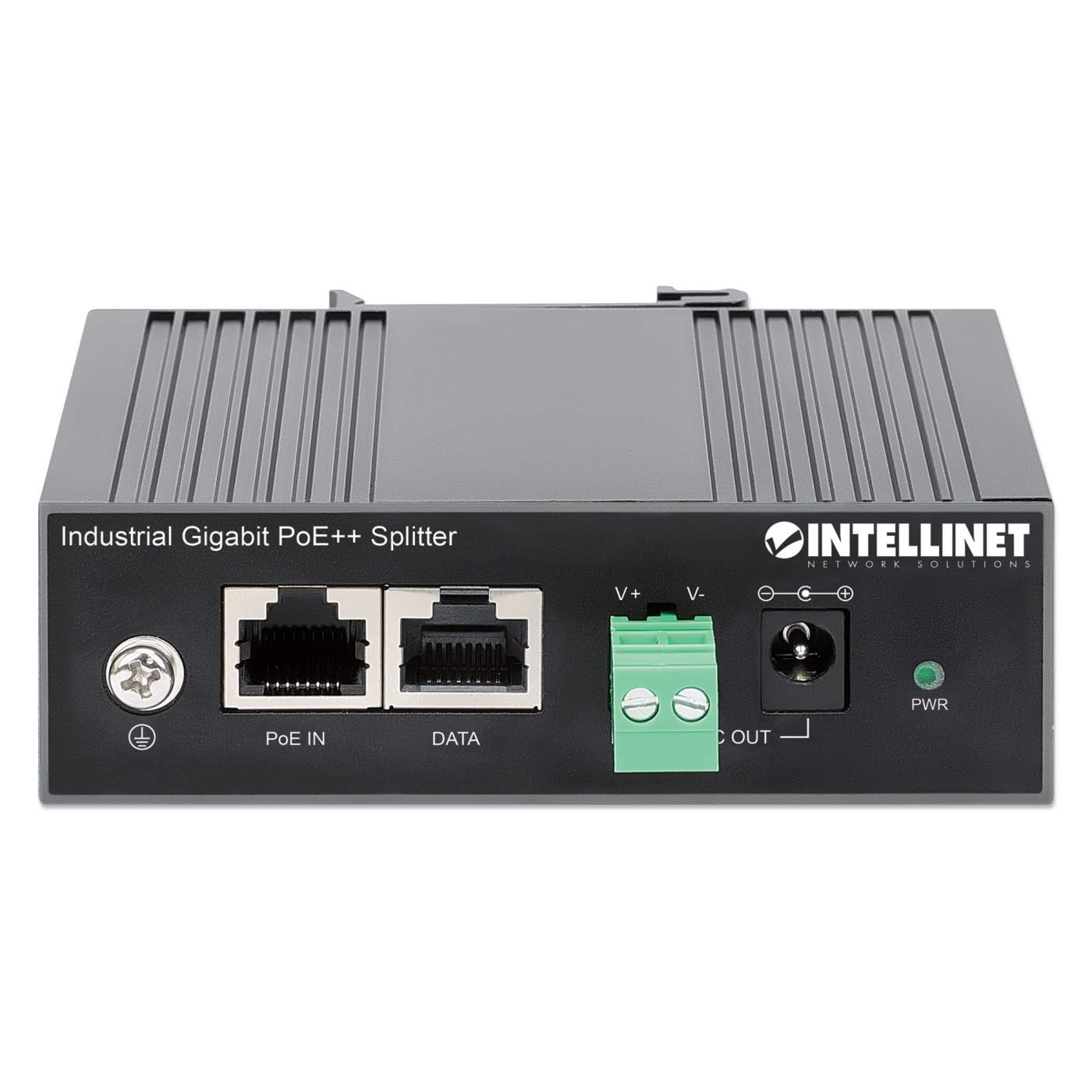

• Ports:
  - One RJ45 10/100/1000 Mbps PoE input port
  - One RJ45 10/100/1000 Mbps data output port
  - One DC output port
  - One DC output with 2-pin terminal block

• Certifications: FCC Class A, CE, RoHS, UKCA, NDAA

  Power

• Input power: IEEE 802.3bt/at/af compliant PSE, 60.0 W max., 36.0 - 57.0 V DC

• Max. output power: 51.0 W, 12.0 V DC, 4.25 A

• Power consumption: 60.0 W (max.)

  PoE Pinout
  - Pin 1: DC (+)
  - Pin 2: DC (+)
  - Pin 3: DC (-)
  - Pin 4: DC (+)
  - Pin 5: DC (+)
  - Pin 6: DC (-)
  - Pin 7: DC (-)
  - Pin 8: DC (-)

  LED

• Power

  Physical

• IP30-rated metal housing

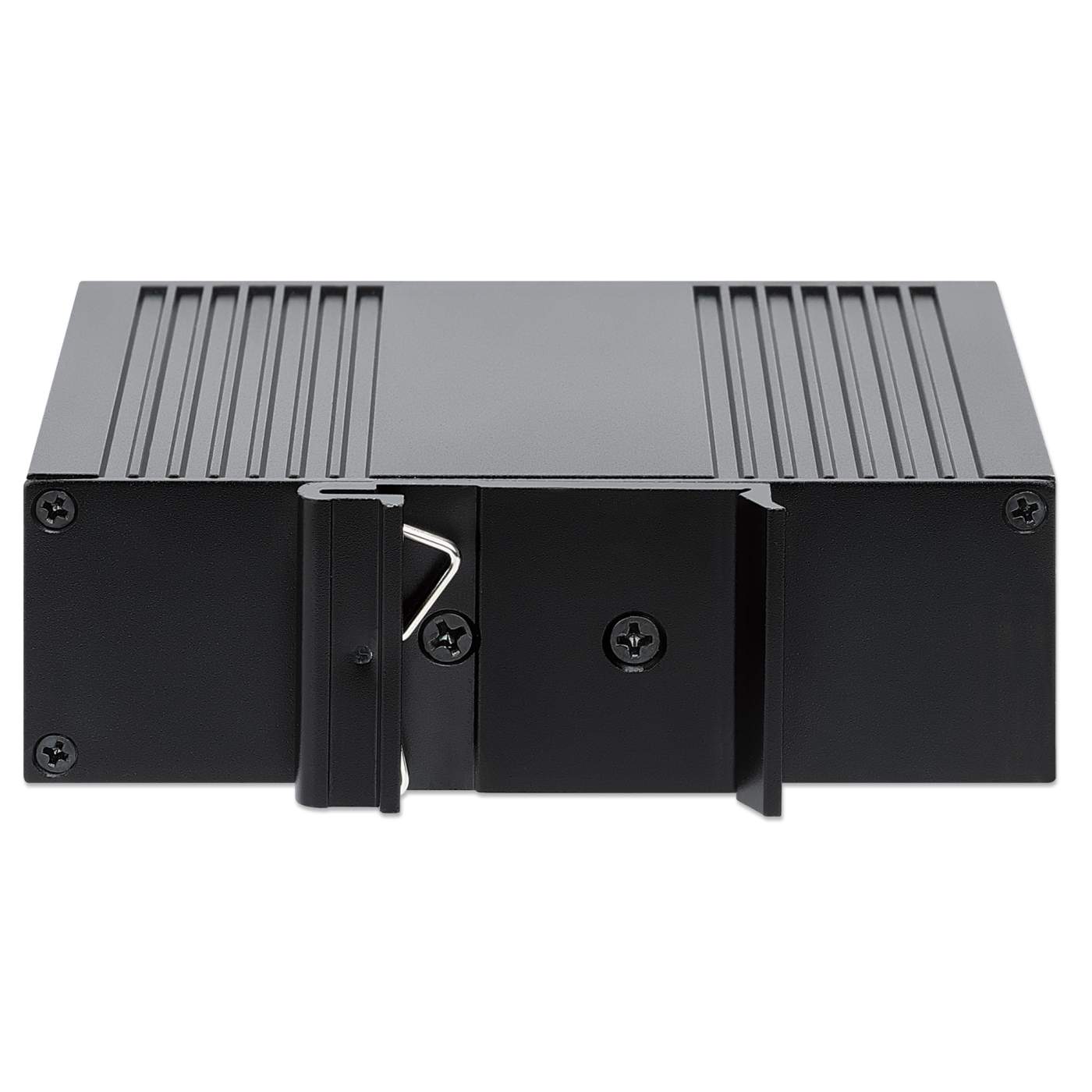

• DIN-rail: In accordance with IEC/EN 60715 (top hat)

• Dimensions (L x W x H): 103 x 78 x 32 mm (4.06 x 3.07 x 1.26 in.)

• Net weight: 330 g (0.73 lbs.)

• Gross weight: 382 g (0.84 lbs.)

• Operating temperature: -40 - 75°C (-40 - 167°F)

• Storage temperature: -40 - 85°C (-40 - 185°F)

• Operating humidity: 5 - 95% RH, non-condensing

• Storage humidity: 5 - 95% RH, non-condensing

• Recommended AWG for terminal block: 12 - 24

  Package Contents

• Industrial Gigabit PoE++ Splitter

• DIN-rail mount bracket

• Instructions

Warning

This product can expose you to chemicals including Bisphenol-A, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: IPIK-60G
• Amazon ASIN: B0BYPGHDXG
• EAN: 0766623508940
• UPC: 766623508940



• Physical Specifications

• Product net weight: 0.33 kg
• Product gross weight: 0.38 kg
• Dimensions: 103 (L) x 78 (W) x 32 (H) [mm]
• Packaging: Brown Box
