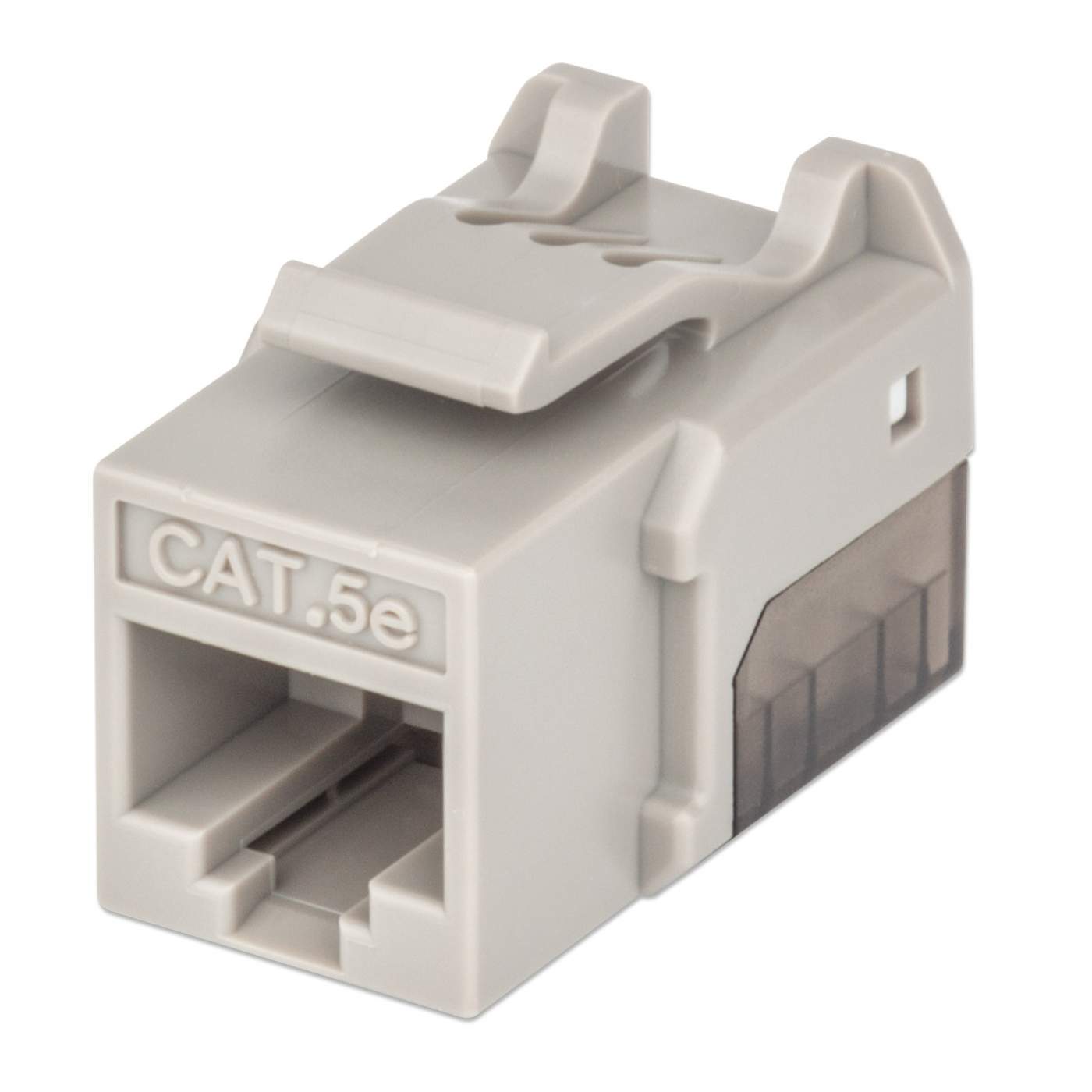

FastPunch Cat5e Keystone Jack

An intuitive keystone jack design for faster and easier terminations

The Intellinet FastPunch Keystone Jack is designed to help you terminate your infrastructure cabling quickly and easily. With standard jacks, positioning and trimming can be tricky. You might have to re-align and cut several times to get all eight conductors right. The intuitive design of the FastPunch keystone jack lets you seat all the wires properly before you cut them in one smooth motion with the Intellinet FastPunch Keystone Jack Punchdown Tool (#771276). Save time and energy with the additional peace of mind that you've done the termination right the first time.

• Makes terminations fast and easy by seating and cutting all wires in one smooth motion
• 50-µ gold-plated contacts
• Supports 23 to 26 AWG stranded and solid wire
• For unshielded twisted pair applications
• Cat5e performance, in compliance with ANSI/TIA/EIA 568-C.2 standard
• UL listed
• For use with Intellinet FastPunch Keystone Jack Punchdown Tool (#772402)
• Lifetime warranty

General

• For use with 23 to 26 AWG stranded and solid wire

• Connection type: IDC

• Certifications: RoHS, UL, ETL

  Physical

• Housing material: ABS and polycarbonate

• Contacts: 50-µ gold-plated

• Dimensions: 34 (L) x 19.5 (W) x 18 (H) [mm] / 1.34 (L) x 0.77 (W) x 0.71 (H) [in.]

• Weight: 8 g (0.28 oz.)

  Environmental

• Operating temperature: -10 – 60°C (14 – 140°F)

• Operating humidity: 20 – 85% RH, non-condensing

• Storage temperature: -10 – 70°C (14 – 158°F)

  Package Contents

• FastPunch Cat5e Keystone Jack

• Cable tie

• Instructions

• Additional SKUs

• Alphanumeric Part#: IKJ-C5E-GYEZ
• Amazon ASIN: B07X5B7HTQ
• EAN: 0766623772266
• UPC: 766623772266



• Physical Specifications

• Product net weight: 0.01 kg
• Product gross weight: 0.01 kg
• Dimensions: 34 (L) x 19.5 (W) x 18 (H) [mm]
• Packaging: Bag
