Cat6a 10G 48-Port Patch Panel, 1U
Cat6a 10G 48-Port Patch Panel, 1U
19-inch Rackmount Panel for High-density Installations, UTP, 180° Entry Punch-Down Blocks, for Solid Wire, Gold-plated Contacts, Black
SKU: 720526 IPP-19C6A48-1U
Out of stock
Request access to B2B pricing here.
Couldn't load pickup availability
Highlights
- Cat6a Class EA with 10G and 500 MHz in accordance with ISO/IEC 11801, IEC 60603-7-51, and ANSI/TIA-568-D
- 48 ports using only 1U of rack space for high-density installations
- Numbered and labeled RJ45 ports with 180° straight IDC terminals for easy cable termination
- Estimated Availability: 07/2026
48-Port Cat6a 19-inch Rack Mount Patch Panel for 10G High-Density Installations - Maximize Connectivity in Minimal Space
With its slim 1U installation height, this Cat6a 48-Port Patch Panel from Intellinet Network Solutions provides you with more connectivity options in limited rack space. It is designed to support modern high-performance networks with dependable 10 Gigabit Ethernet capability. Compliant with Cat6A Class EA requirements and supporting frequencies up to 500 MHz, it meets key international standards including ISO/IEC 11801, IEC 60603-7-51, and ANSI/TIA-568-D. This ensures consistent signal integrity and future-ready infrastructure for demanding data environments.
Efficient and Installer-Friendly Cable Termination
Equipped with 48 RJ45 ports, it enables structured and organized cable management. The 180° straight IDC punch-down blocks allow for easy and intuitive cable termination, particularly in installations where accessibility is important. Compatibility with both 110 and Krone punch-down tools provides flexibility for installers, while support for 23 to 26 AWG solid wire ensures broad application compatibility.
Durable Construction and High-Quality Materials
Built from sturdy, cold-rolled SPCC steel and finished with an antistatic powder coating, this patch panel is engineered for long-term durability in professional environments. The gold-plated contacts (50 micro-inch) provide corrosion resistance and reliable conductivity with stable connections even in demanding conditions.
Flexible Installation and Clean Cable Management

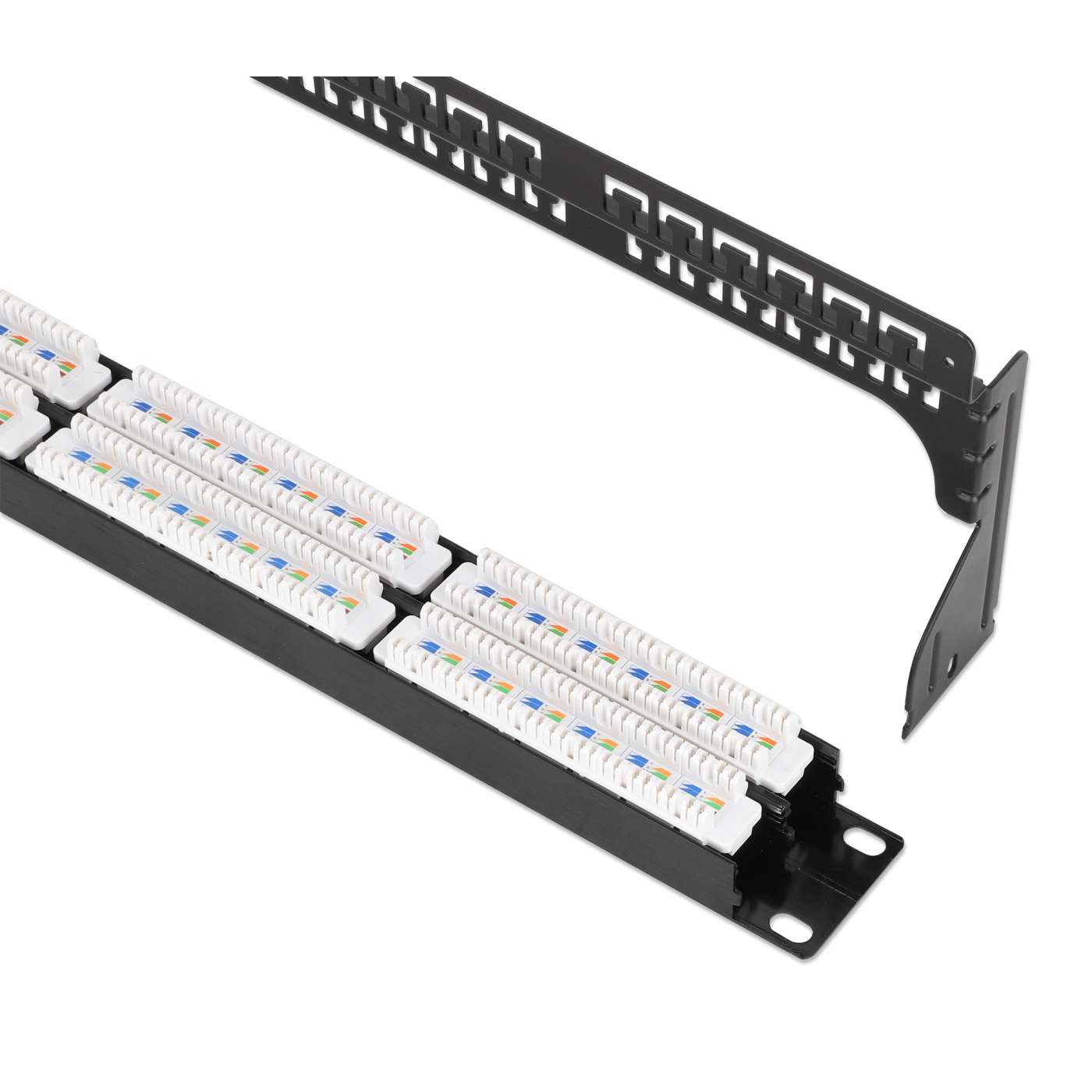

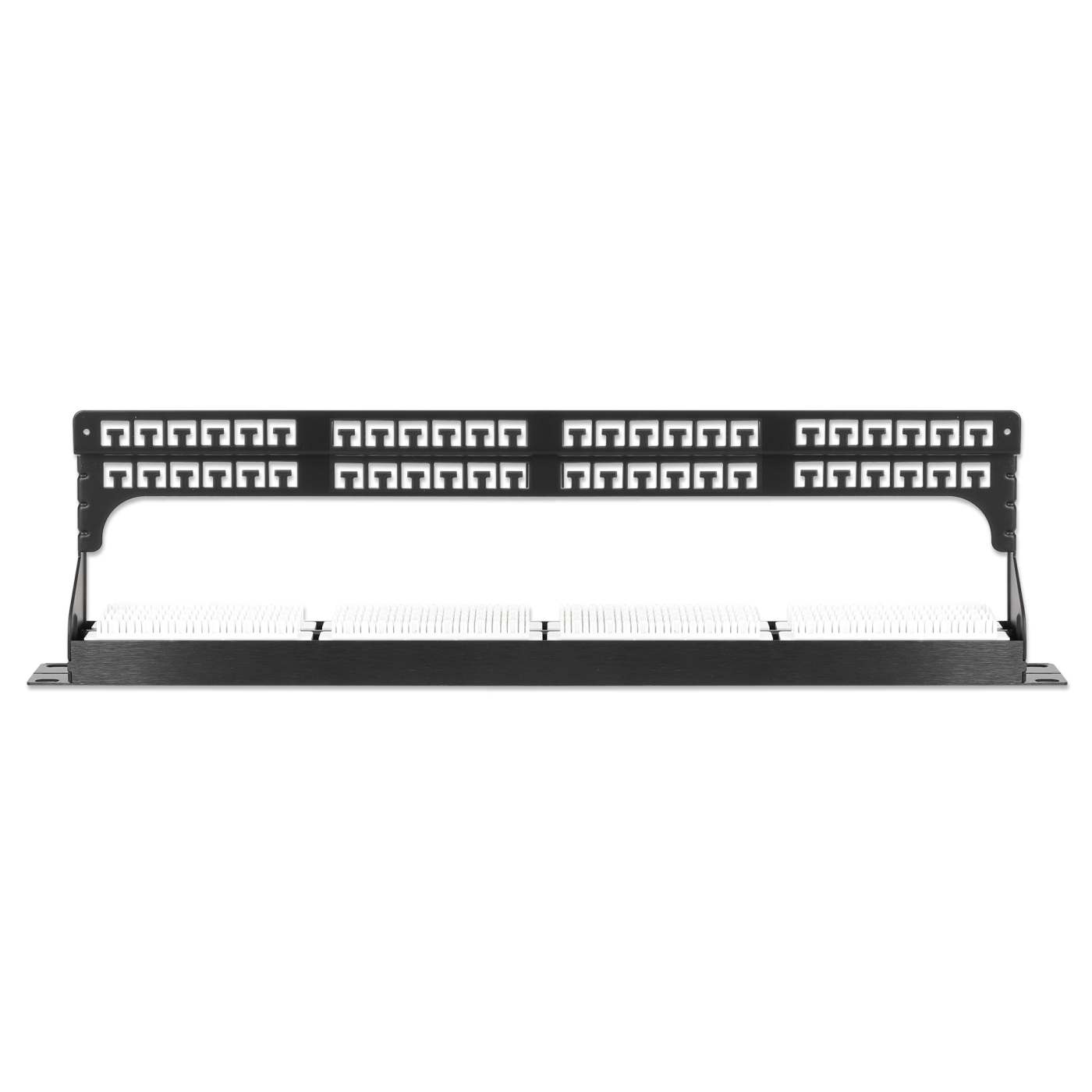

The integrated, removable cable management bar allows for neat and adaptable cable routing, simplifying both initial installation and future maintenance. Designed to IEC 60297 and EIA 310 standards, the panel fits seamlessly into all standard 19-inch (482.6 mm) racks, making it a versatile solution for a wide range of installations.
Optimized for Modern Network Applications
This unshielded (UTP) patch panel is ideal for high-speed data and power applications, including support for PoE technologies up to IEEE 802.3bt (PoE++, 4PPoE, Ultra PoE). Its standard 8P8C design ensures full compatibility with all RJ45 network connections, while color-coded wiring supports both T568A and T568B configurations for maximum deployment flexibility.
