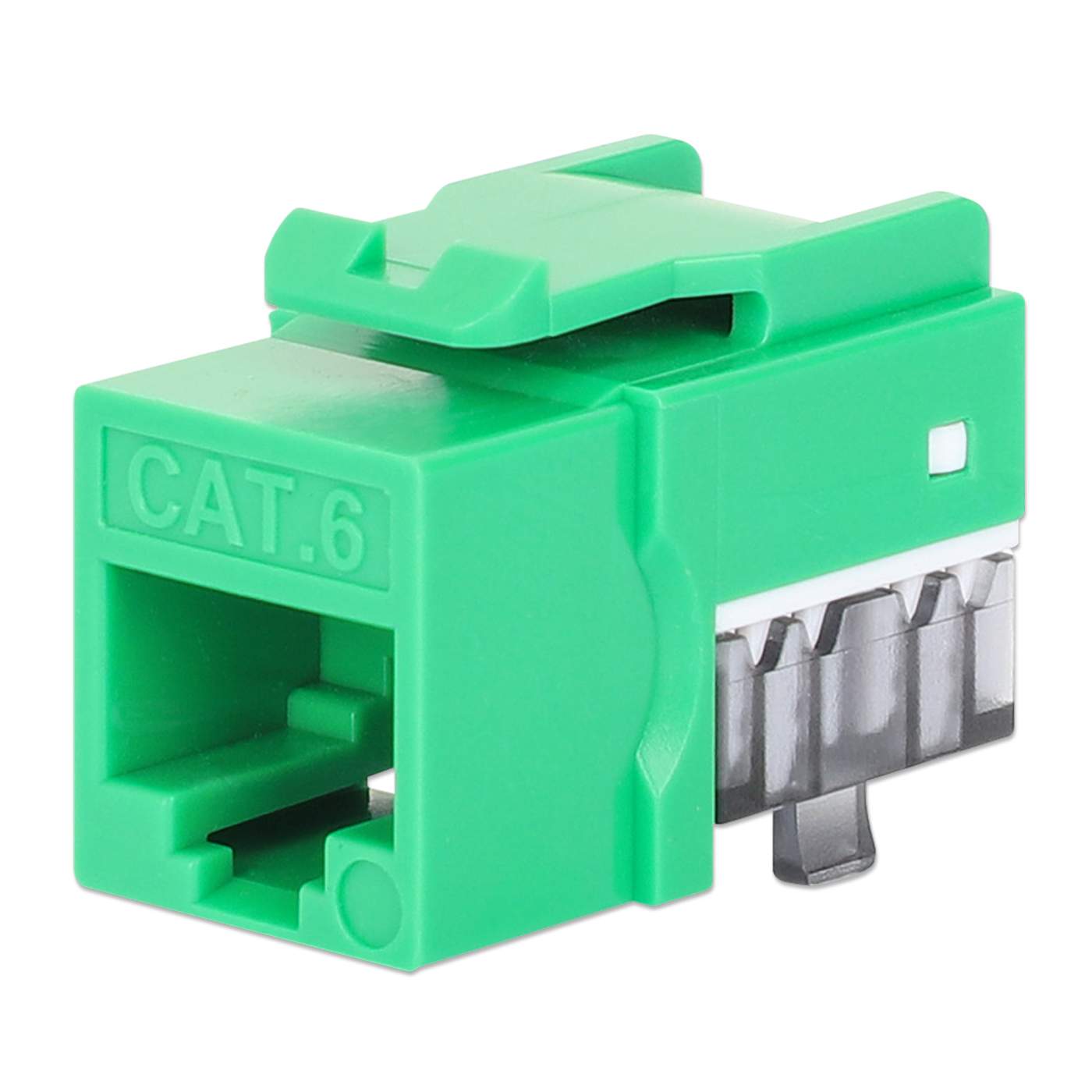

Cat6 Slim Keystone Jack with Punch-Down Stand, Green, 25-Pack

Slimline, space-saving Cat6 UTP Gigabit Keystone Jack Module, 25 pcs - for comfortable fit in high-density patch panels

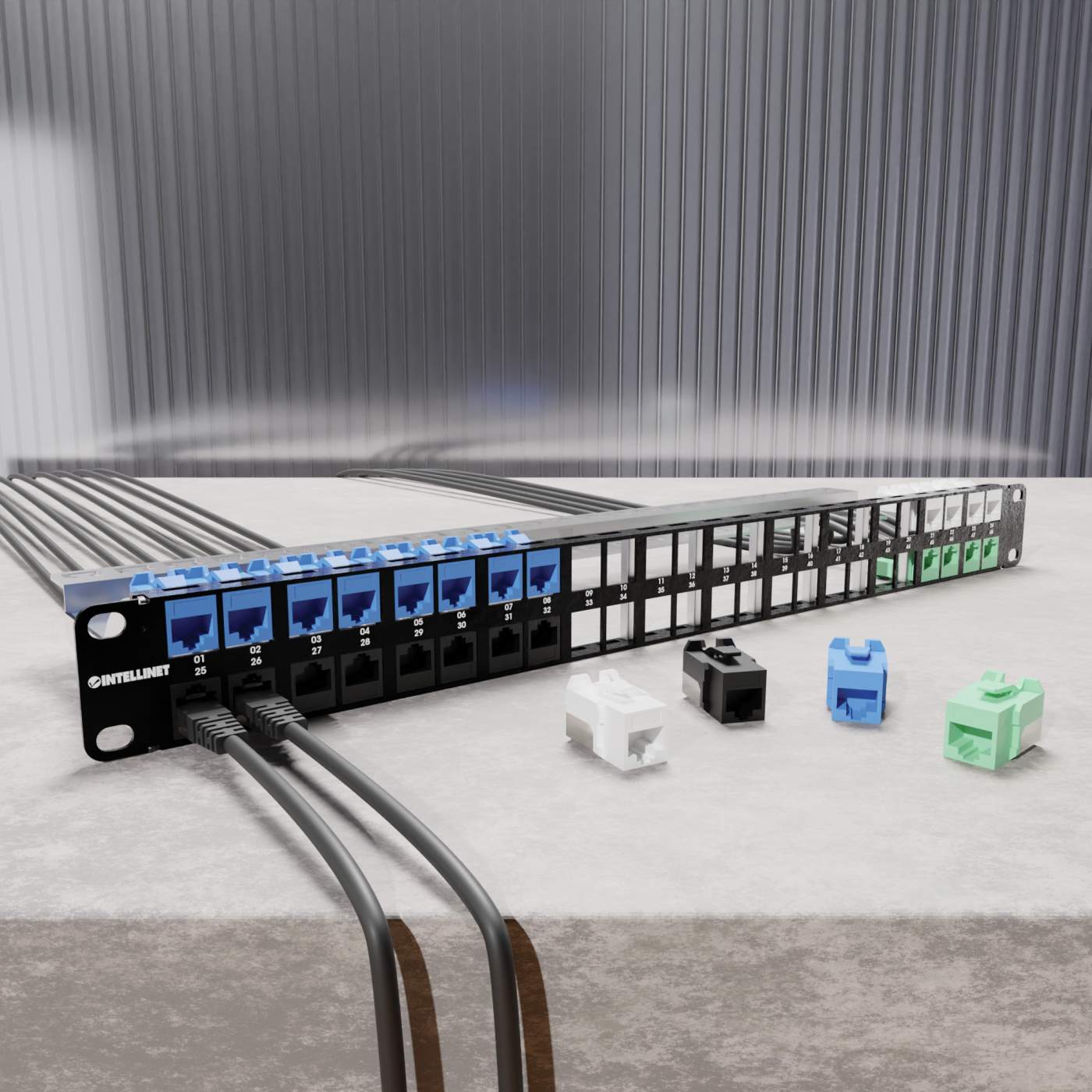

The Slim Cat6 Punch-Down Keystone Jack from Intellinet Network Solutions is designed for easy side-by-side deployment in blank patch panels, wall plates or surface connection boxes. This keystone jack is suitable for solid conductor cables for high-performance network applications up to 10GBASE-T over 55 m (180 ft.) or 1000BASE-T over 100 m (328 ft.) with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For high signal integrity, it is equipped with gold-plated contacts.

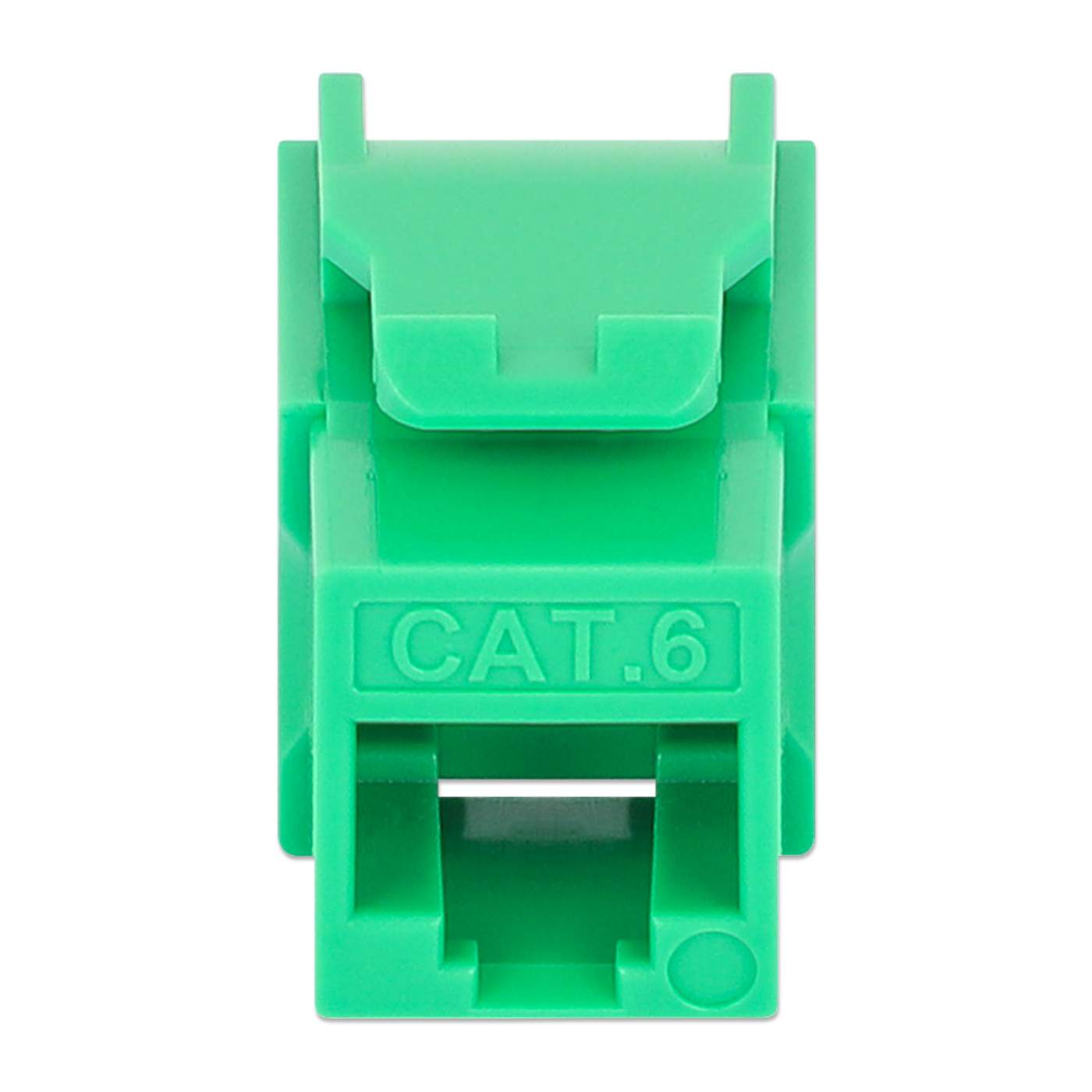

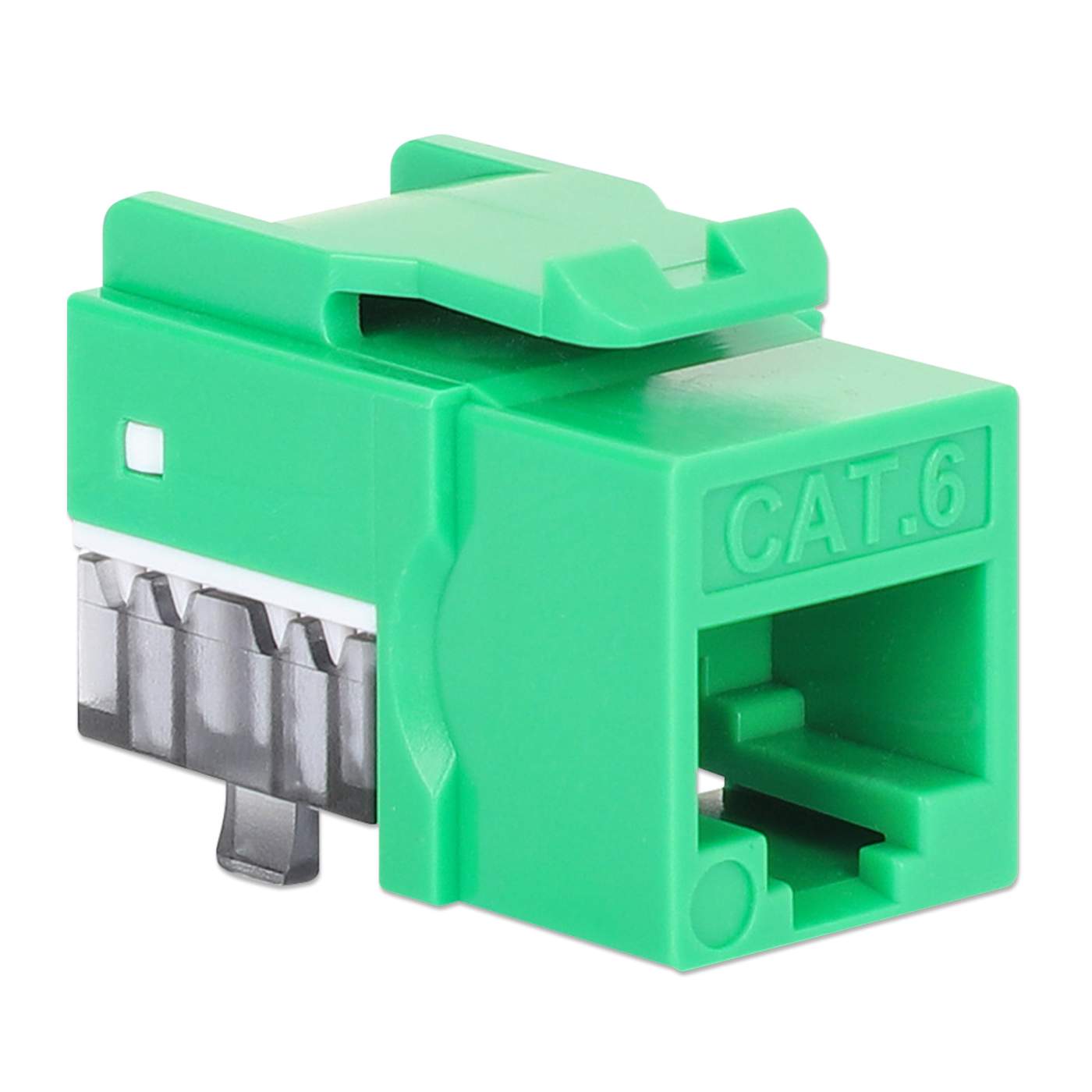

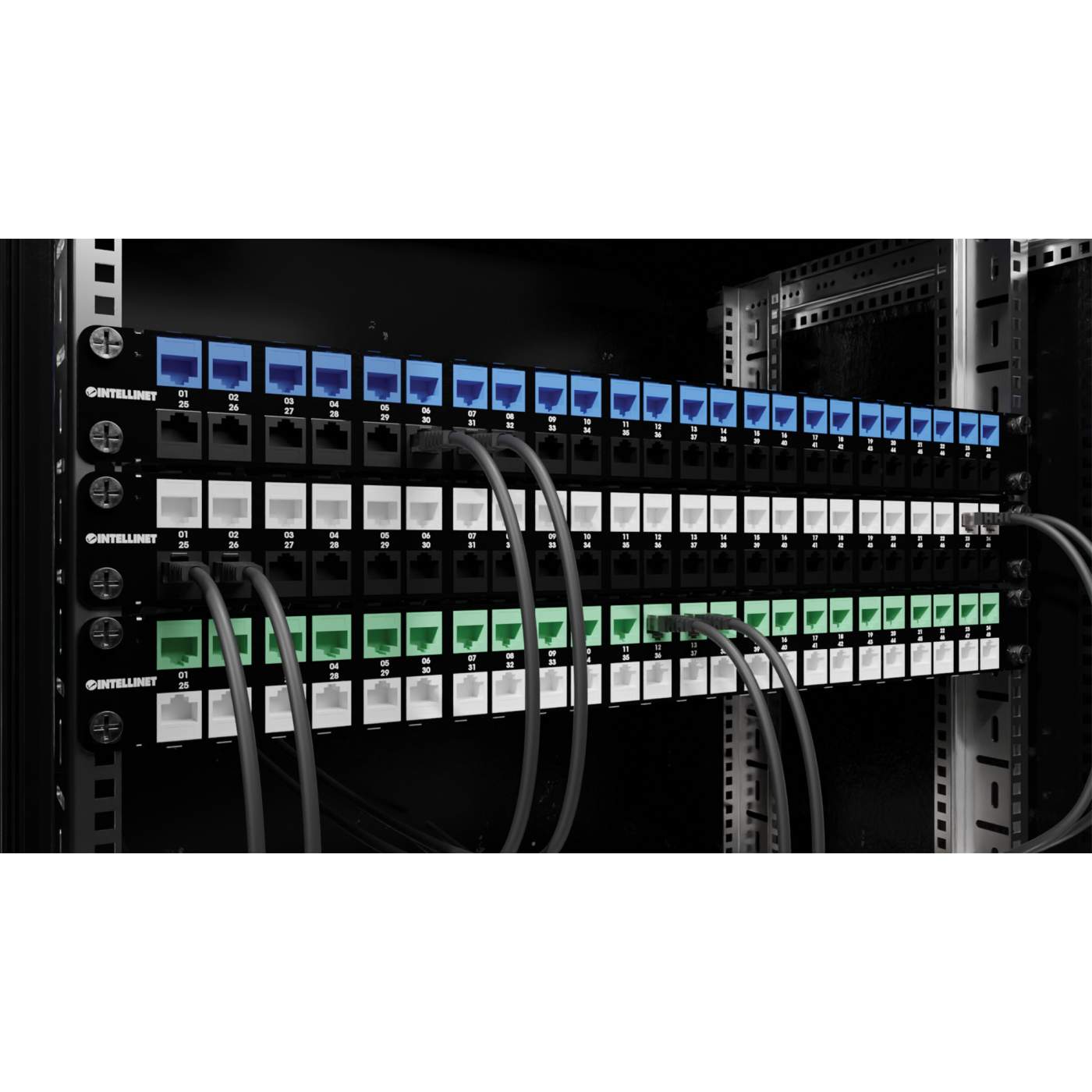

• Slimline design, only 16.5 mm (0.65 in.) wide for comfortable side-by-side deployment in blank patch panels, wall plates or surface connection boxes
• Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
• Gold-plated contacts for corrosion-free connections
• Supports solid wire with AWG 26/1 to 23/1

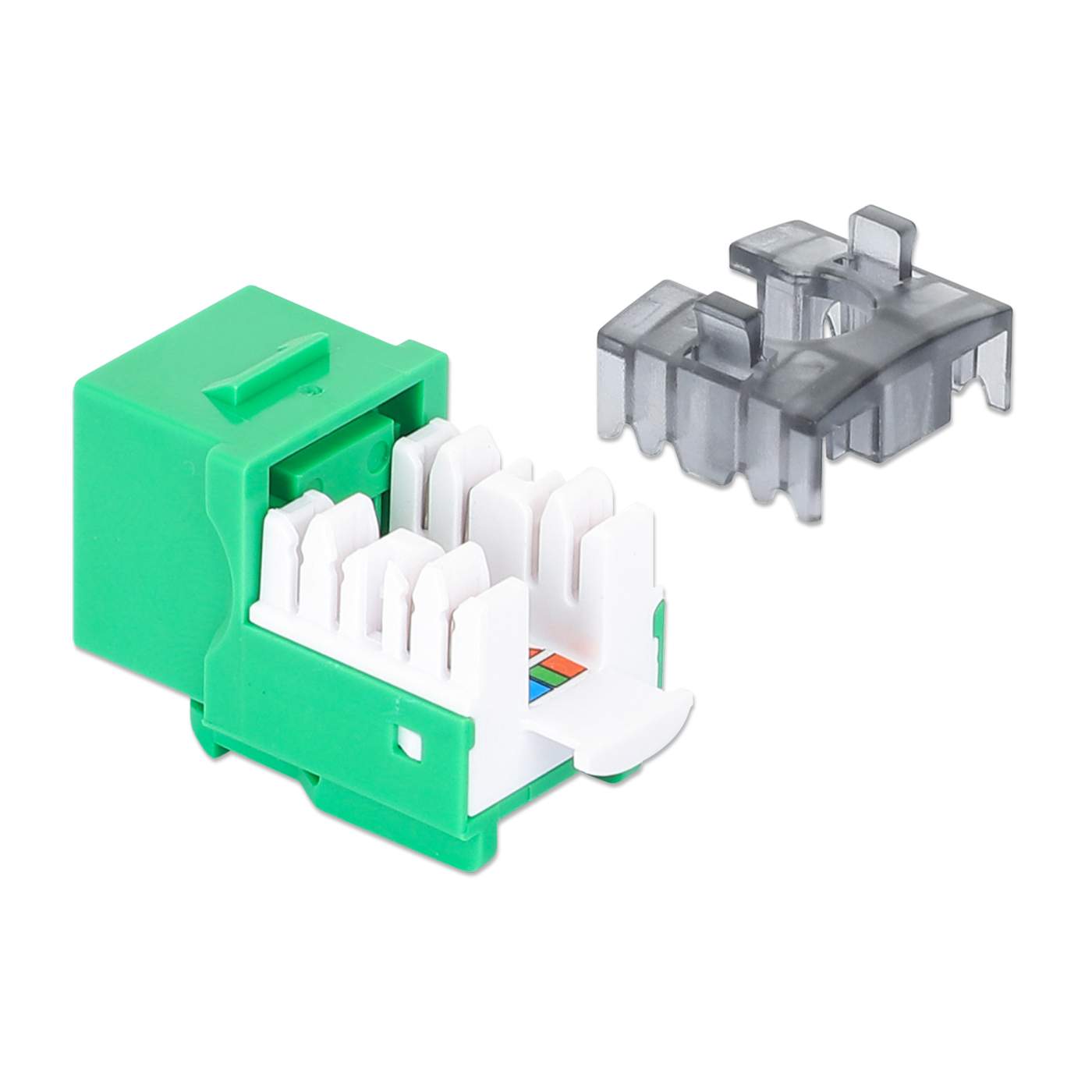

• LSA punch-down type, compatible with 110, Krone, and other punch-down tools
• Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Standard 8P8C design, compatible with all network RJ45 connections

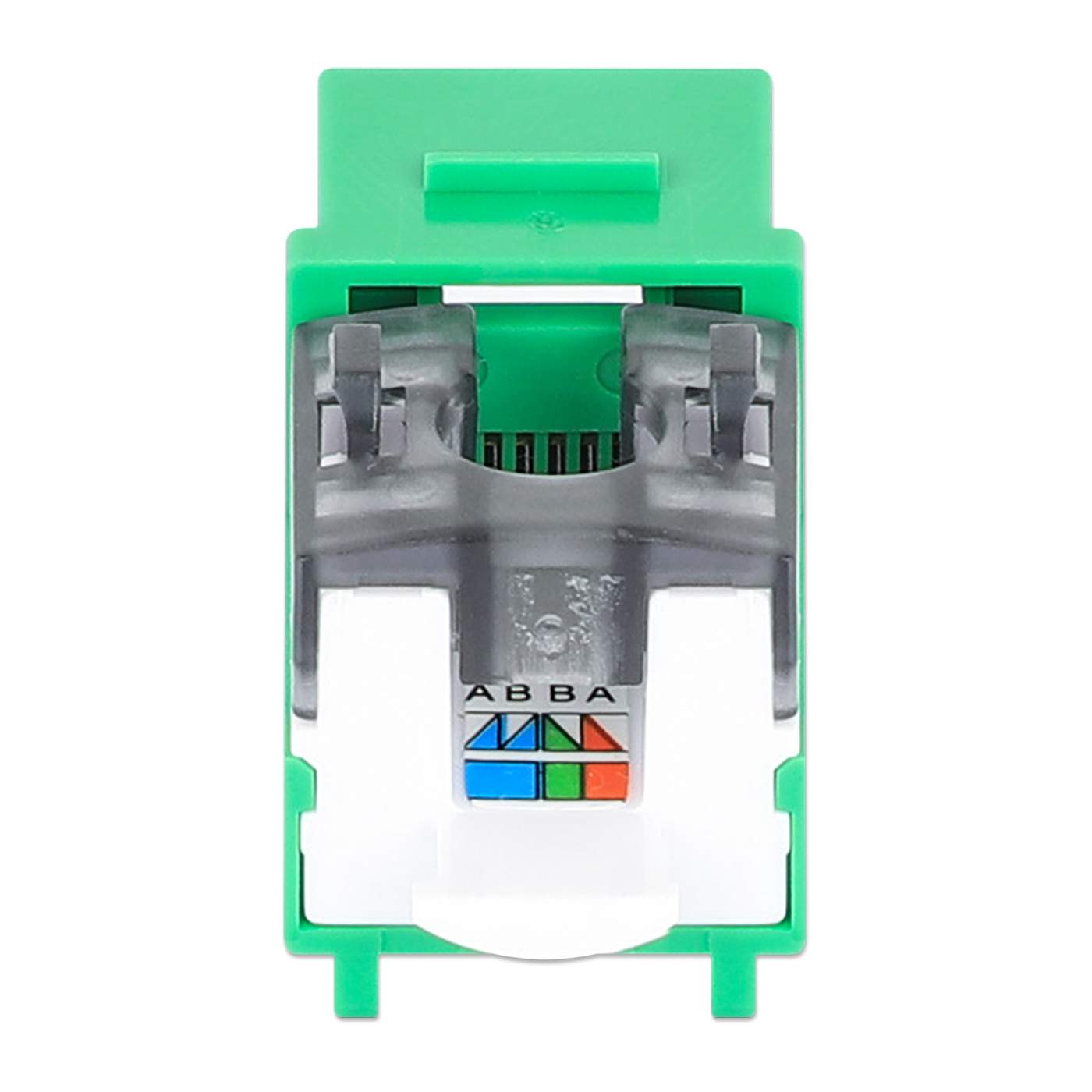

• Compatible and color-coded with T568A and T568B
• Durable and fire-resistant housing

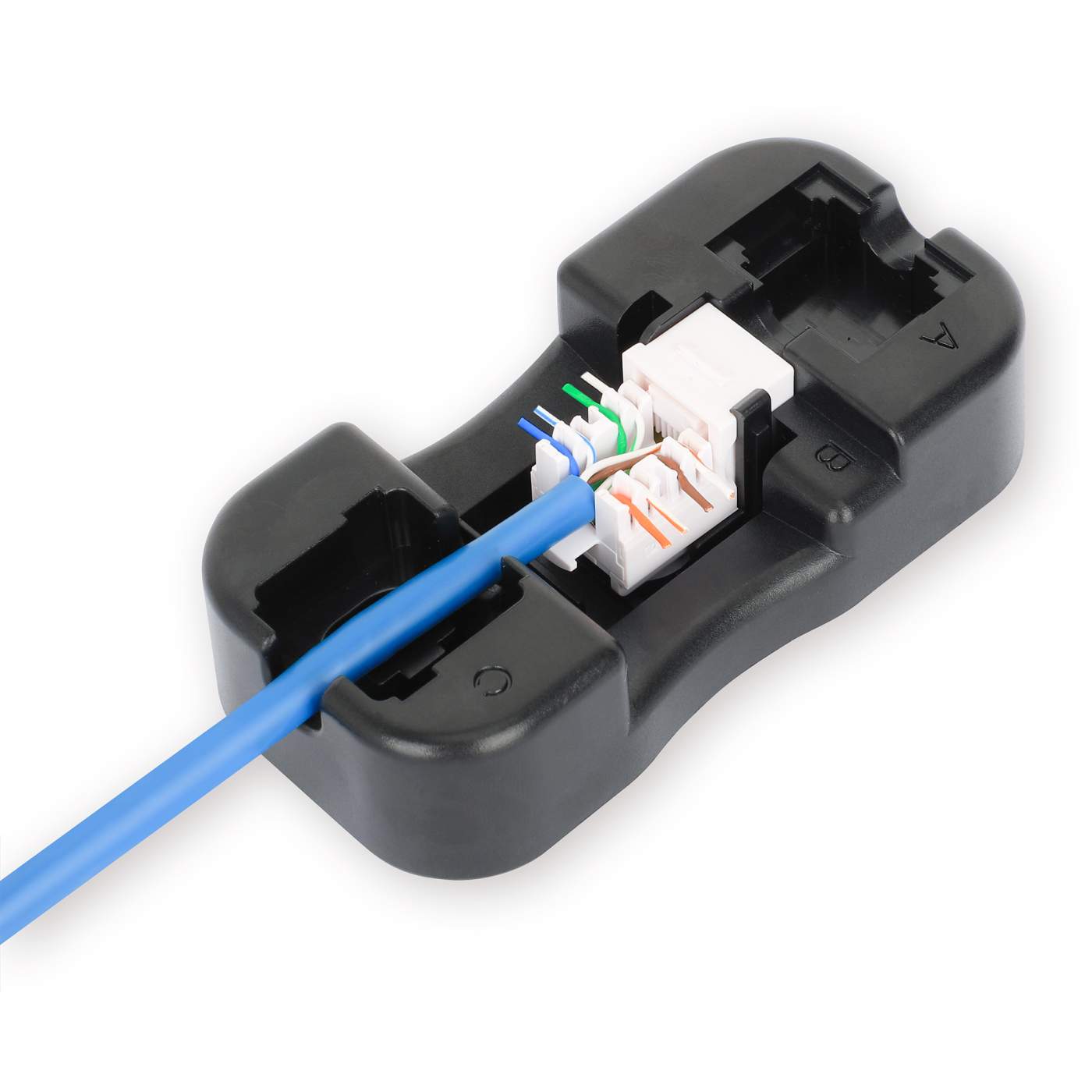

• Included punch-down stand provides a firm base for cutting and terminating with protection from sharp impact tools
• 25 dust covers and cable ties included
• UL approved
• Lifetime warranty

Standards and Certifications

• ISO/IEC 11801

• UL

• CE

• RoHS

• REACH

  General

• Supports transfer speeds up to 10 Gbps

• Max. operating frequency: 250 MHz

• Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE

• Mating cycles: ≥750

• Insertion force: 30N max.

• Retention strength: 17 lbs (7.7 kg) between jack and plug

  Material

• Contacts: phosphor bronze

• Contact plating: gold

• IDC: phosphor bronze

• Housing: PC

• Flammability: tested and rated in accordance with UL 94 V-0

  Electrical

• Insulation resistance: ≥500 MOhm

• Dielectric withstanding voltage: 1,000 V DC/750 V AC

• Contact resistance: ≤20 MOhm

• DC resistance: ≥0.3 Ohm

• Current rating: 1.5 A

  Physical

• Dimensions per module (L x W x H): 1.27 x 0.65 x 0.87 in. (32.3 x 16.5 x 22 mm)

• Net weight per module: 0.26 oz. (7.5 g )

• Gross weight 25-pack: 0.6 lbs. (270 g)

  Environmental

• Operating temperature: 14 - 140ºF (-10 - 60ºC)

• Storage temperature: -40 - 158°F (-40 - 70°C)

• Operating humidity (non-condensing): 10 - 90% RH

  Package Contents

• 25 x Cat6 Slim Punch-Down Keystone Jack

• 25 x dust cover

• 25 x cable tie

• 1 x punch-down stand

• Instructions

  This product is part of a group; the complete list of variations follows:

• #772105 - Cat6 Slim Keystone Jack with Punch-Down Stand, 25-Pack, White

• #772129 - Cat6 Slim Keystone Jack with Punch-Down Stand, 25-Pack, Black

• #772136 - Cat6 Slim Keystone Jack with Punch-Down Stand, 25-Pack, Blue

• #772143- Cat6 Slim Keystone Jack with Punch-Down Stand, 25-Pack, Green

• Additional SKUs

• Alphanumeric Part#: IKJ-C6U-PD-GR-25P
• Amazon ASIN: B0CP6HPX73
• EAN: 0766623772143
• UPC: 766623772143



• Physical Specifications

• Product net weight: 0.01 kg
• Product gross weight: 0.28 kg
• Dimensions: 32.3 (L) x 16.5 (W) x 22 (H) [mm]
