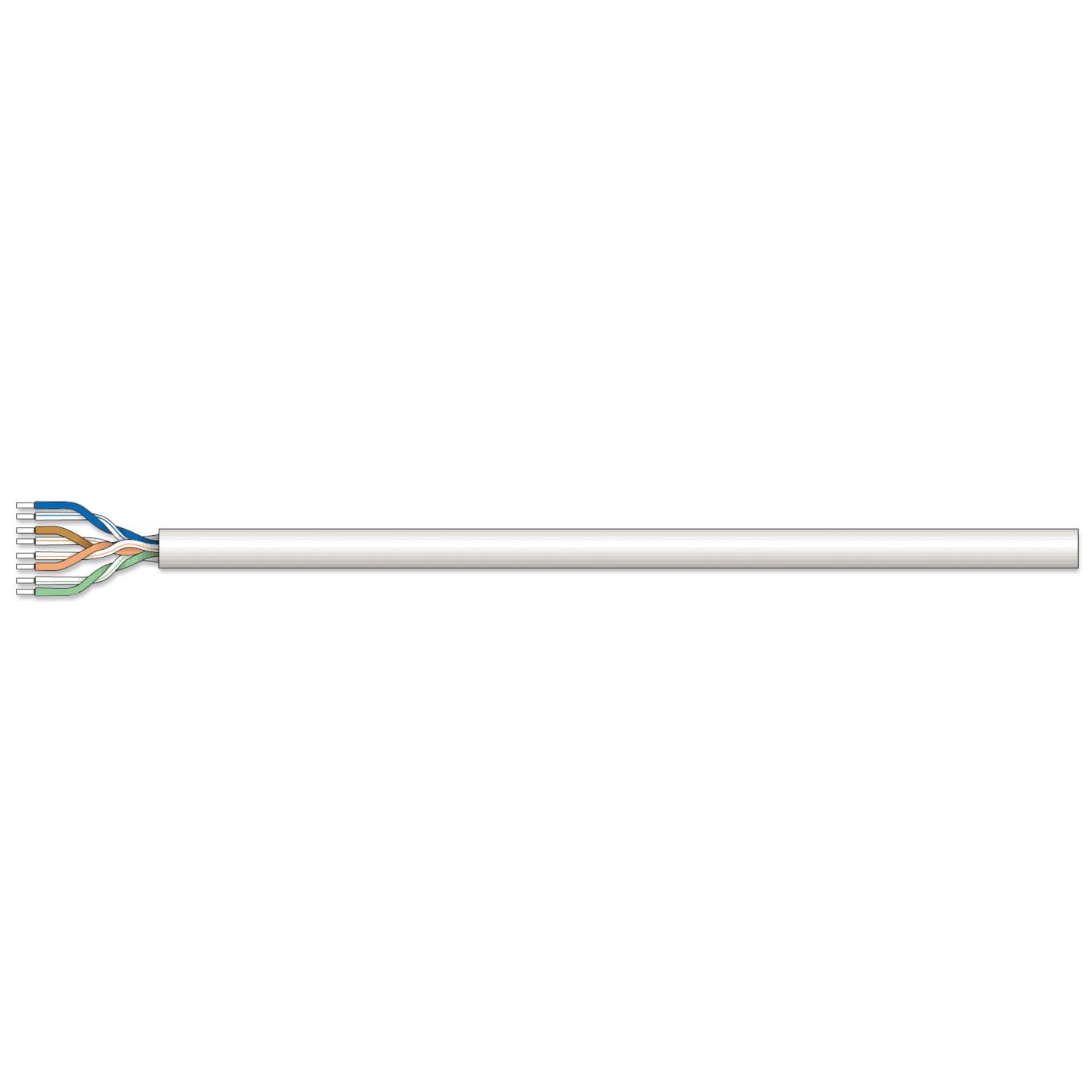

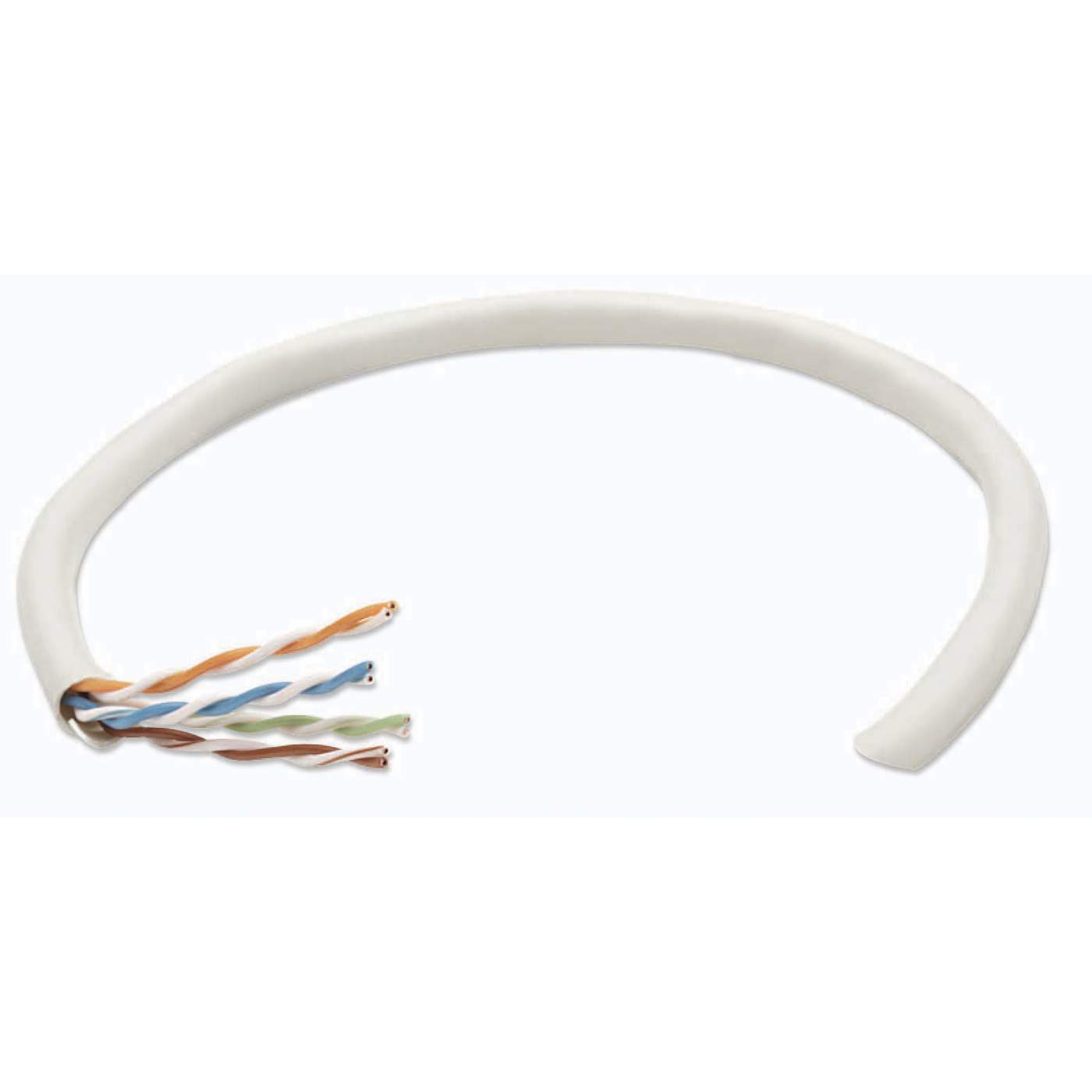

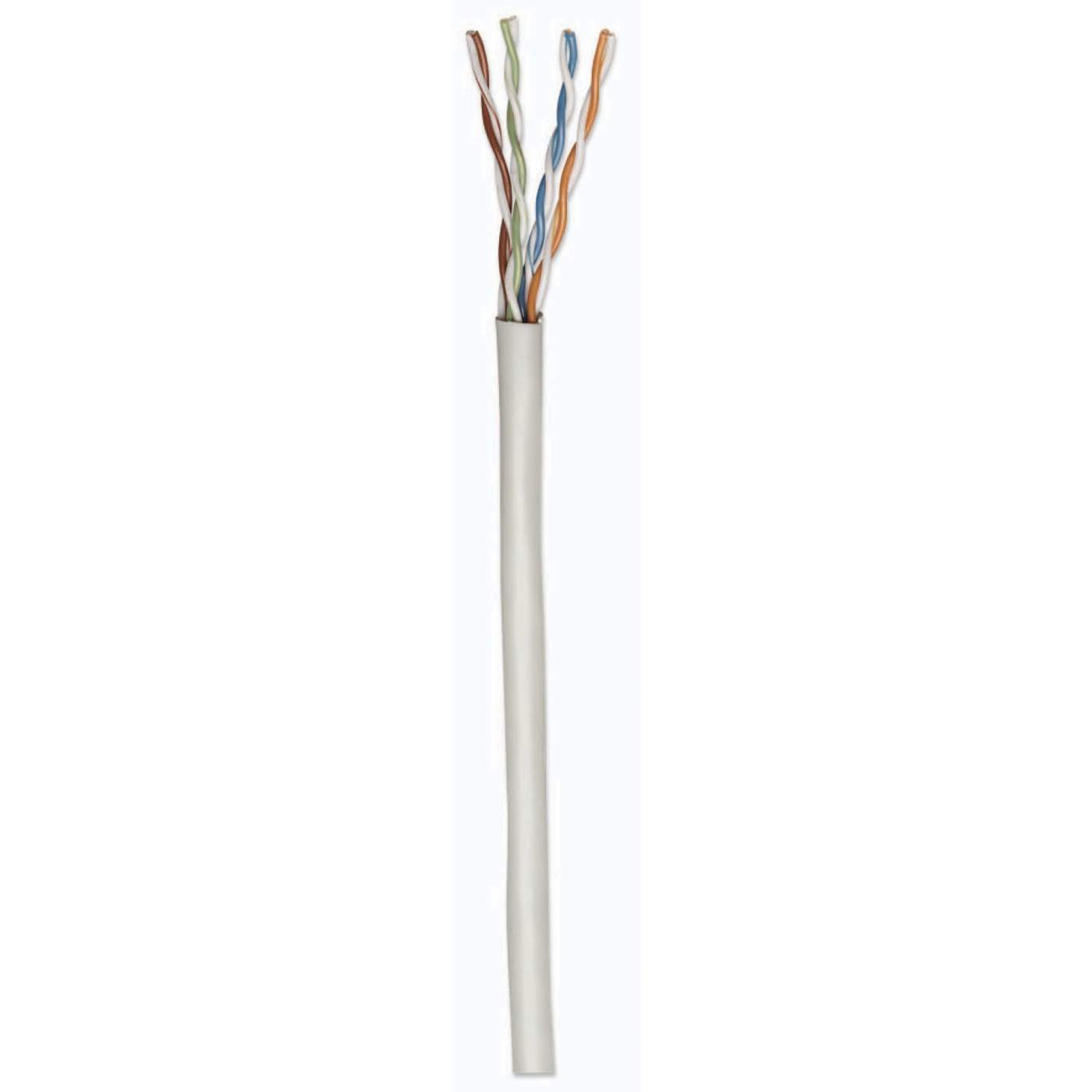

Cat6 Bulk Cable, Solid, 23 AWG

Designed for today’s applications

Intellinet Network Solutions Cat6 Bulk Cable allows for a better signal-to-noise ratio with minimal loss, which translates to faster and reliable networks for today’s applications.

• Cat6 with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801 and EN 50288
• Pure bare copper wire for maximum conductivity
• ETL approved
• Flame Retardant Rating: CM
• UTP, Unshielded Twisted Pair
• Can be used in riser with raceway/fireproof shaft
• Standards tested; meets or exceeds current Cat6 proposed standards
• Length usage log on box tracks remaining cable available for next job
• Lifetime Warranty

General

• Gray

• Unshielded twisted 4-pair w/ pair separator

• 23 AWG

• Solid core

• PVC jacket

• Rated to 250 MHz

• Meets or exceeds Cat6 specifications

• Ideal for for carrying data, audio and video

• Flame Retardant Rating: CM

• In-wall rated; permitted in 1-2 family residential riser applications, or in riser with raceway/fireproof shaft; not permitted in plenums

• Jacket
  - Material: PVC
  - Outer diameter: 6 mm ±0.3 mm
  - Average thickness 0.5 mm ±0.3 mm

• ETL approved

  Technical Specifications

• TIA Cat6 channel test 250 MHz:
  - Return loss (db) = 17.32
  - Attenuation (db/100) = 33.04
  - Near-end crosstalk (db) = 38.3
  - Power sum-NEXT (db) = 36.3
  - Equal level-FEXT (db) = 19.8
  - Power sum-ELFEXT (db) = 16.8

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B00176NMTC
• EAN: 0766623334136
• UPC: 766623334136



• Physical Specifications

• Product net weight: 14.25 kg
• Product gross weight: 16.35 kg
• Dimensions: 305 m

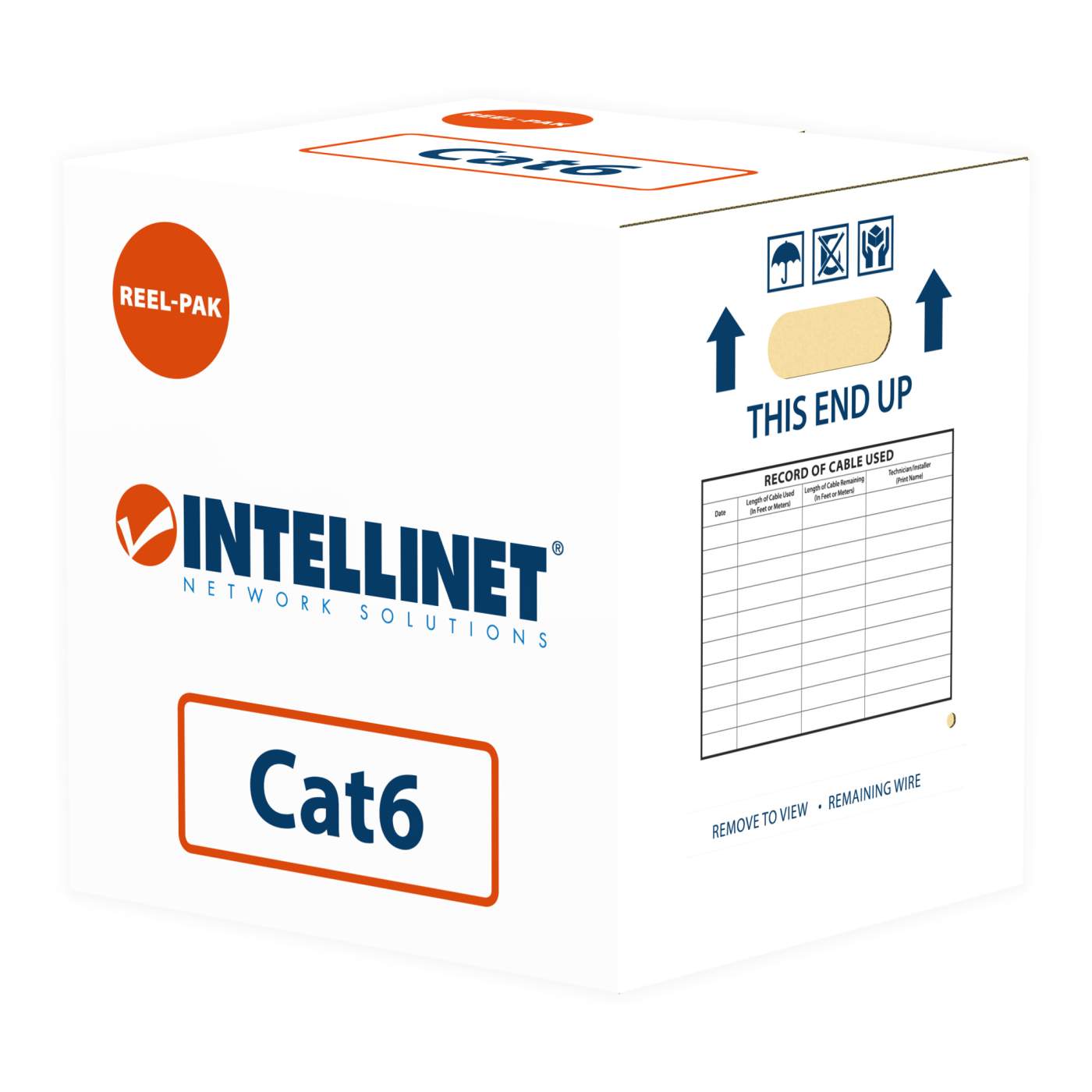

• Packaging: White Box
