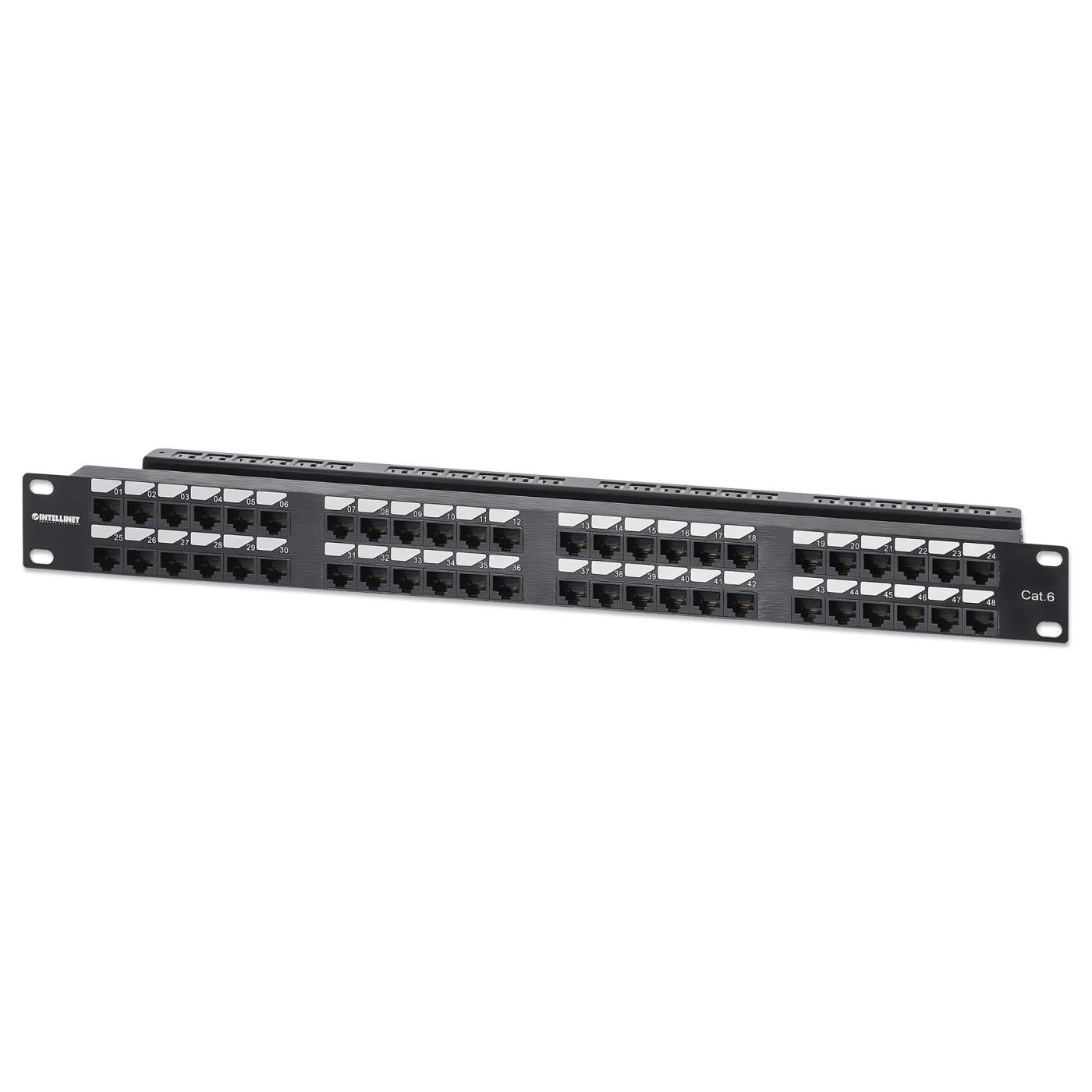

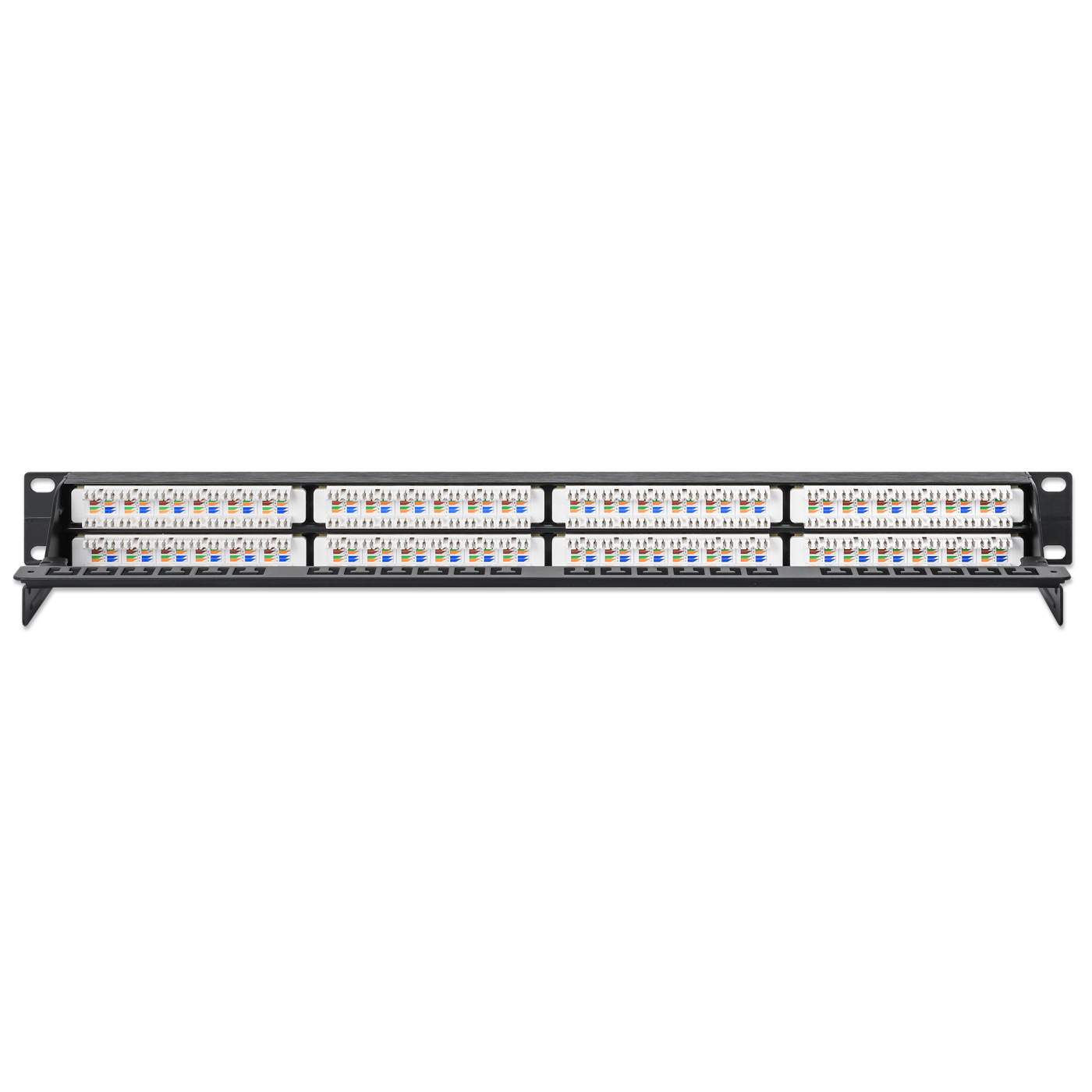

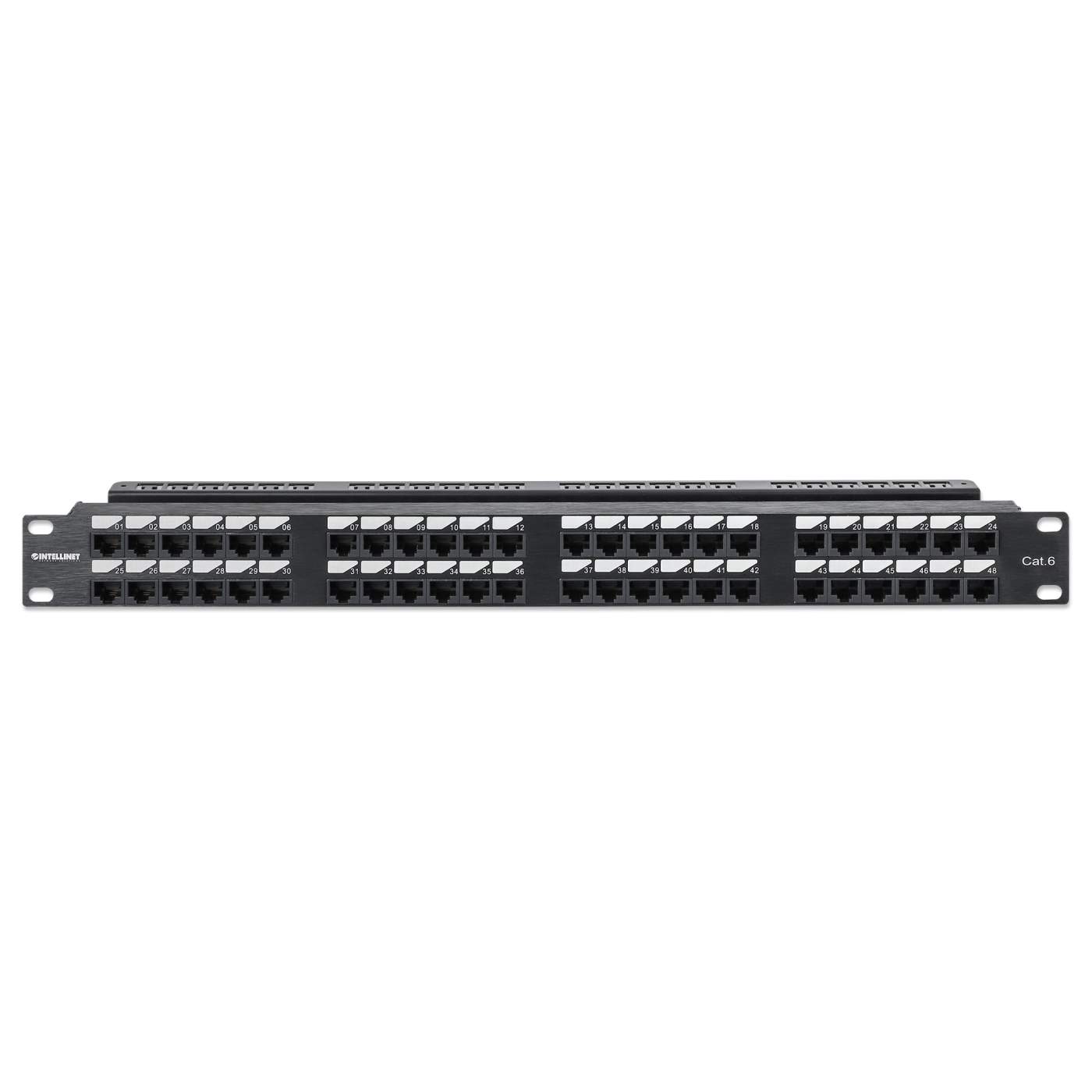

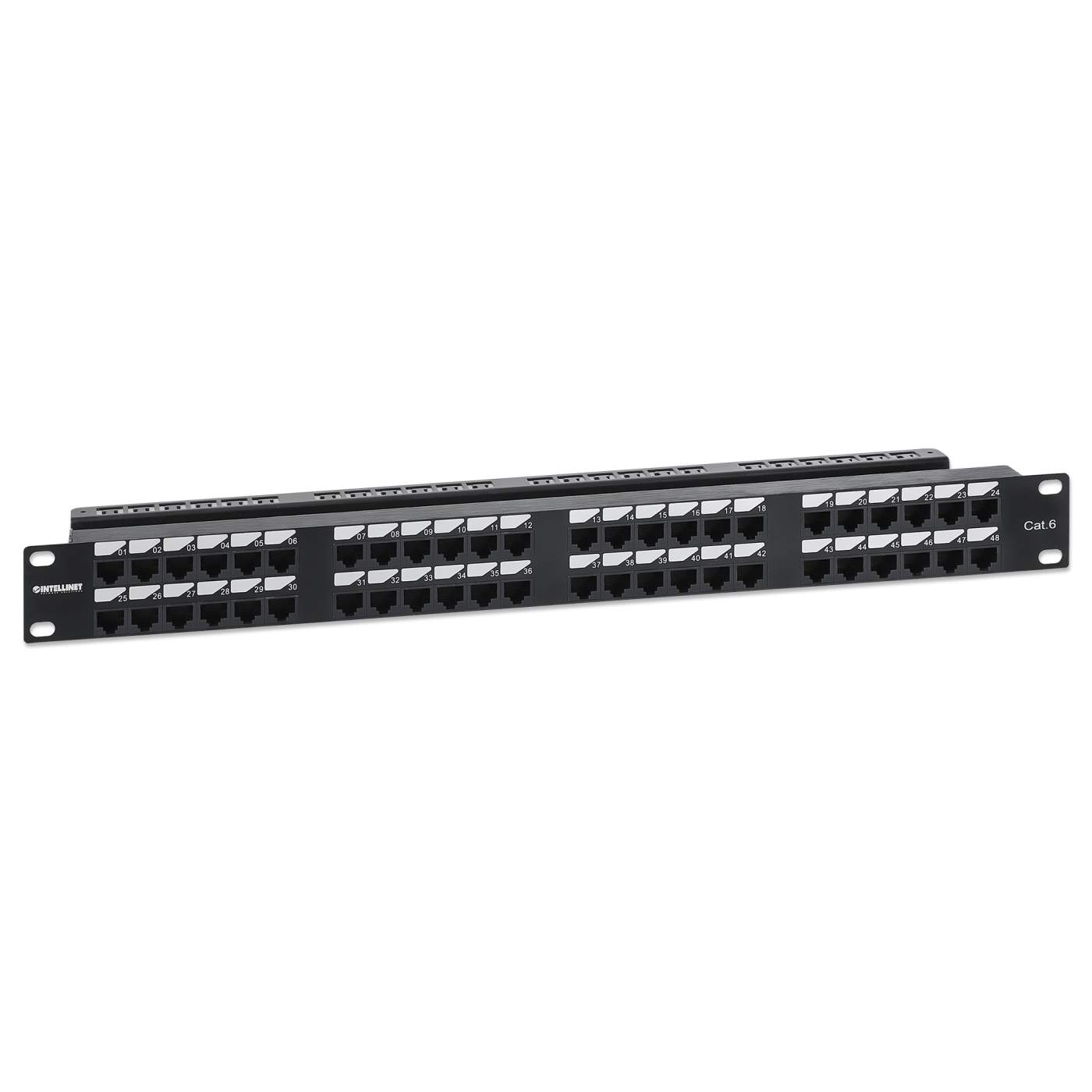

Cat6 48-Port Patch Panel, 1U

48-Port Cat6 UTP 1U Cat6 RJ45 Ethernet Patch Panel - Maximize Connectivity in Minimal Space

With its slim 1U installation height, this rack-mount patch panel from Intellinet Network Solutions combines solid and reliable terminations with a space-saving form factor. The numbered and labeled RJ45 ports allow for easy identification and organization of copper cables. A removable cable-management bar ensures a tidy installation, minimizing clutter and simplifying maintenance. IEC 60297 / EIA 310-compliant and compatible with all standard 19 in. / 482.6 mm racks, our patch panel is designed to seamlessly integrate into your existing network setup.

High-Quality Construction with UL 94 V-0 Flame Retardant Rating

Crafted with quality materials, this panel features 50 micro-inch gold-plated contacts, supporting 23 to 26 AWG solid wire. The anodized aluminum frame and cold-rolled SPCC steel bracket with antistatic powder coating ensure durability and reliability. It is ideal for advanced applications like HDBaseT and PoE up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. Enhancing safety measures, it has a flame-retardant rating in accordance with UL 94 V-0 and FR-4 standards, providing an extra layer of protection against fire hazards.

• Solid and reliable terminations with numbered and labeled RJ45 ports for copper cable
• 48 ports using only 1U of rack space for more connectivity
• Compatible with Krone punch-down tools

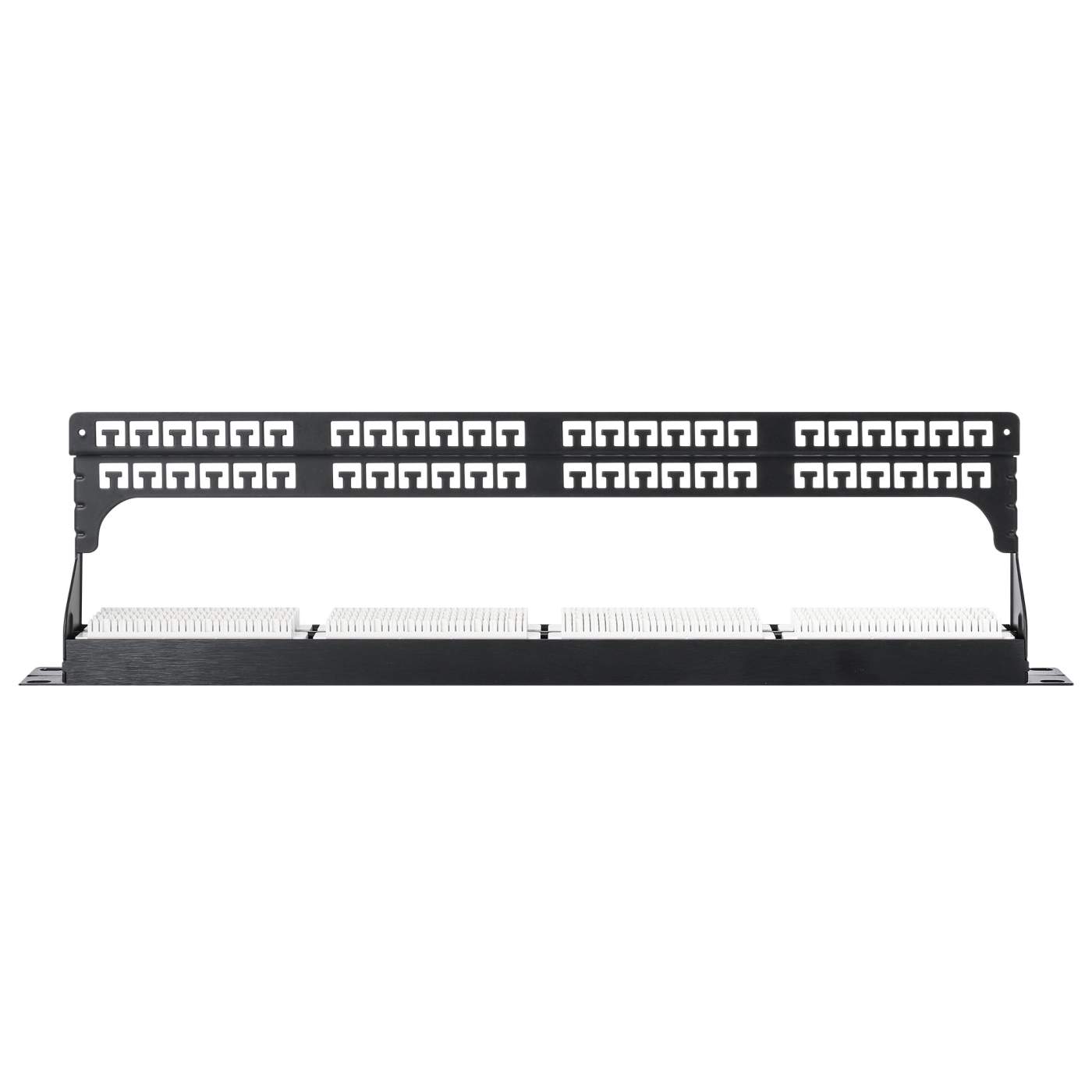

• Removable cable-management bar
• 50 micro-inch gold-plated contacts
• Supports 23 to 26 AWG solid wire
• IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
• Flame retardant rating in accordance with UL 94 V-0 and FR-4
• Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• For use with unshielded twisted pair (UTP) Cat6 network cable
• High-quality anodized aluminum frame and cold-rolled SPCC steel bracket with antistatic powder coating
• Standard 8P8C design, compatible with all network RJ45 connections
• Compatible and color-coded with T568A and T568B
• UL listed
• Lifetime warranty

Standards and Certifications

• RoHS

• ISO/IEC 11801

• IEC 60603-7-41

• Cat6 (ANSI/TIA-568-D)

• UL

• REACH

• UKCA

  General

• Supports transfer speeds up to 10 Gbps over distances up to 180 ft. (55 m)

• Max. operating frequency: 250 MHz

• Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE

• Mating cycles: ≥750

  Material

• Frame: aluminum

• Bracket: steel

• Contacts: phosphor bronze

• Contact plating: 50 micro-inch gold

• IDC: phosphor bronze with tin plating

• Flammability:
  - PCB: tested and rated in accordance with FR-4 and UL 94 V-0

  Electrical

• Insulation resistance: ≥500 MOhm

• Dielectric withstanding voltage: 1,000 V DC/750 V AC

• Contact resistance: ≤20 MOhm

• DC resistance: ≥0.3 Ohm

• Current rating: 1.5 A

  Physical

• Dimensions (L x W x H): 5 x 19 x 1.75 in. (127 x 482.6 x 44.4 mm)

• Net weight: 1.68 lbs. (760 g)

• Gross weight: 1.92 lbs. (870 g)

  Environmental

• Operating temperature: 14 - 140°F (-10 - 60°C)

• Storage temperature: -40 - 158°F (-40 - 70°C )

• Operating humidity (non-condensing): 10 - 90% RH

  Package Contents

• Cat6 48-Port Patch Panel, 1U

• 48 x cable tie

• Cage nut set (2 x cage nut, 2 x M6 screw, 2 x plastic washer)

• Instructions

• Additional SKUs

• Alphanumeric Part#: IPP-19C648-1U
• Amazon ASIN: B0CZB87HFN
• EAN: 0766623721066
• UPC: 766623721066



• Physical Specifications

• Product net weight: 0.76 kg
• Product gross weight: 0.87 kg
• Dimensions: 127 (L) x 482.6 (W) x 44.4 (H) [mm]
• Packaging: Brown Box
