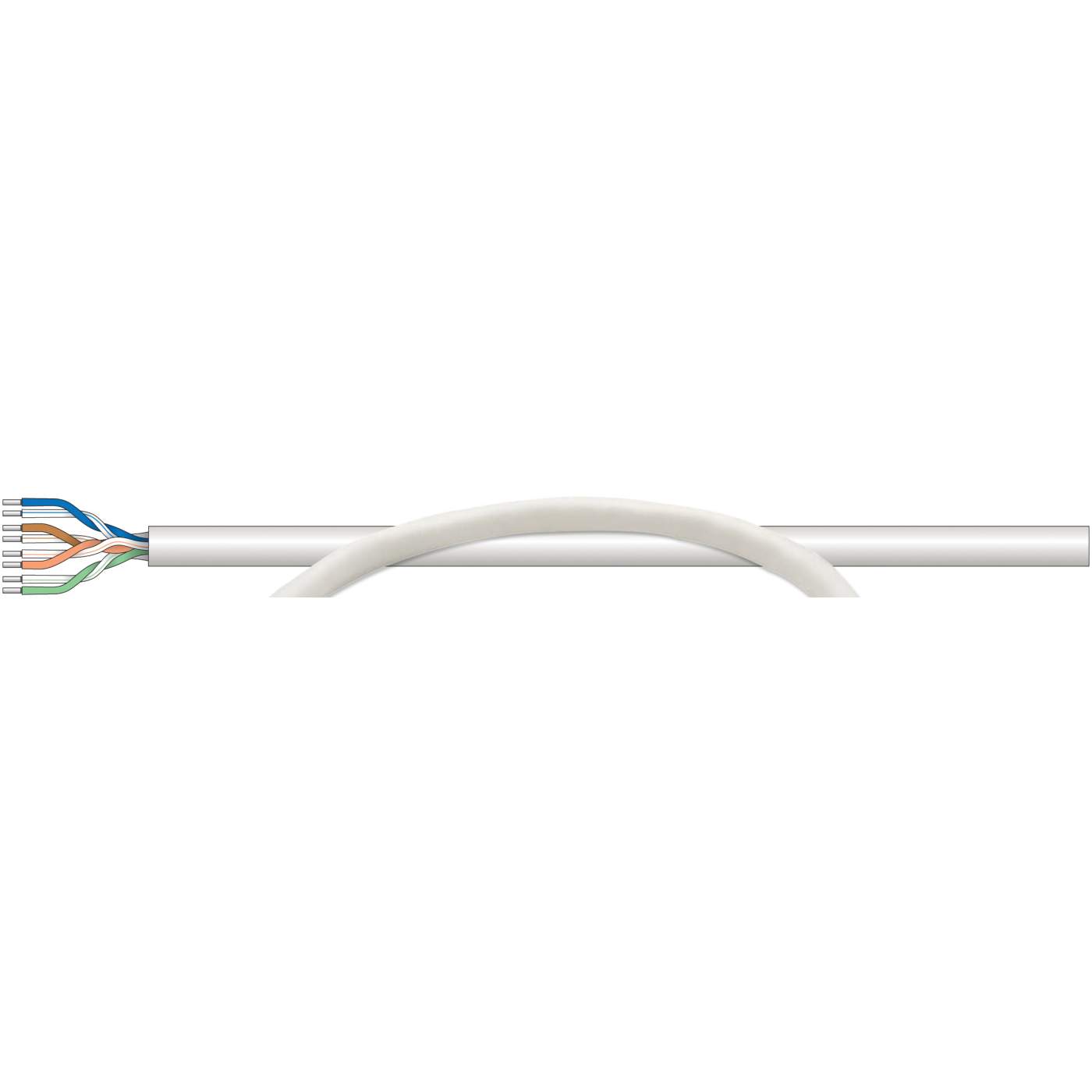

Cat5e (UTP) Bulk Cable

For Data, Voice and Video

The Intellinet Network Solutions Cat5e Bulk Cable enables high speed transmission of data, voice and video applications with up to 350 Mhz and beyond. The Cat5e Bulk Cable meets EIA/TIA and 3P certification standards and is flame retardant rated. i. e.CM In-wall rated. It is permitted in 1-2 family residential riser applications or in riser with raceway/fireproof shaft while not being permitted in plenums. A length usage log on the box tracks the remaining cable available for the next job.

• UTP Unshielded Twisted Pair
• Can be used in riser with raceway/fireproof shaft
• Standards tested, meets or exceeds current CAT5e proposed standards
• Standards tested to meet 3P certification standards

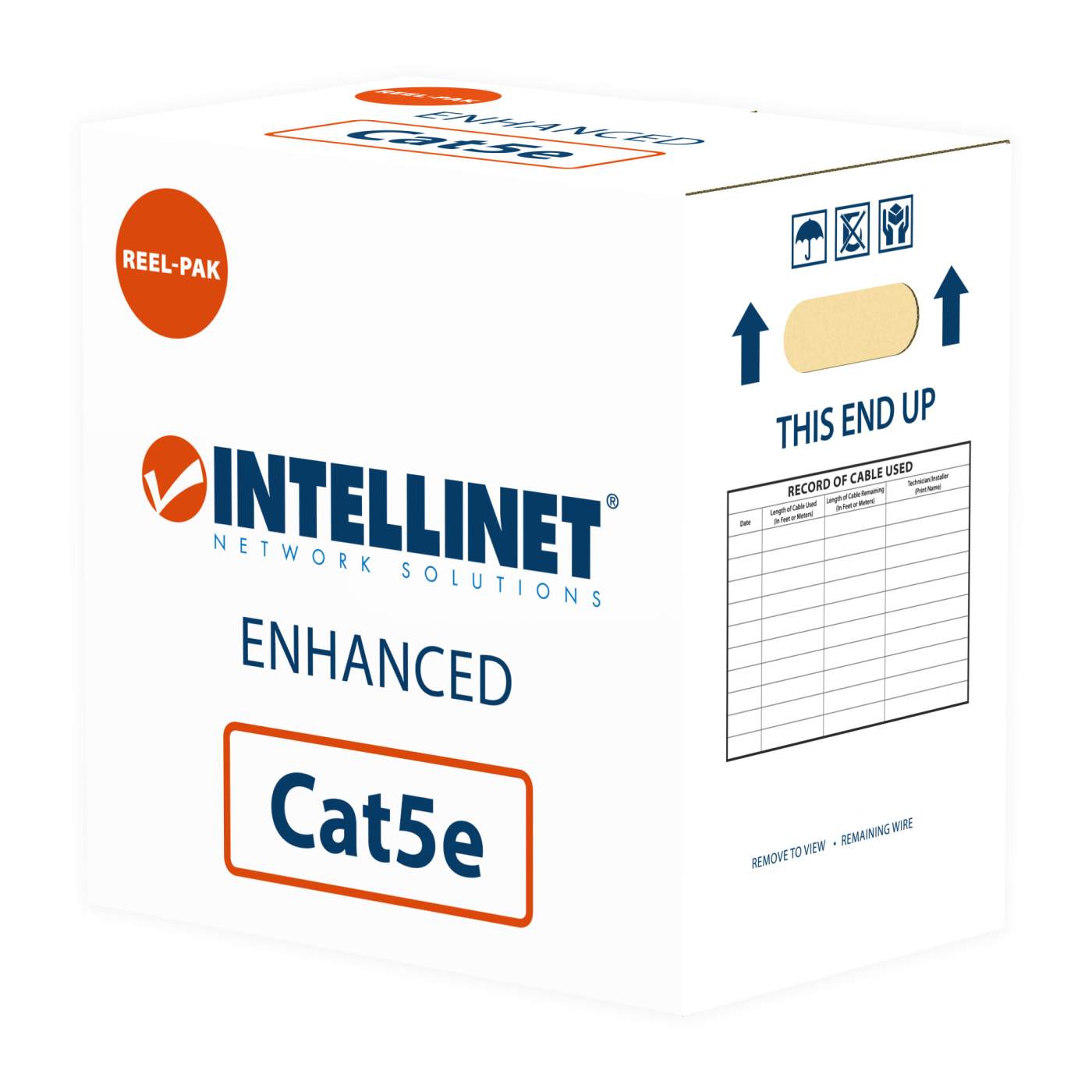

• Length usage log on box, track remaining cable available for next job
• Lifetime Warranty

General

• Gray colored

• Unshielded Twisted 4-Pair

• 24 AWG

• Solid Core

• PVC Jacket

• Jacket OD: 5.1 mm ±0.3 mm (0.2 in. ±0.01 in.)

• Rated to 350 MHZ to provide additional bandwidth and performance

• Meets or exceeds Cat 5e specifications

• Ideal for 10Base-T, 100Base-TX and 1000base-TX

• Flame Retardant Rating: CM
  In-wall rated; permitted in 1-2 family residential riser applications, or in riser with raceway/fireproof shaft; not permitted in plenums

• Jacket
  - Material: PVC
  - Outer diameter: 5.1 mm ±0.3 mm
  - Average thickness 0.48 mm
  - Min. point thickness 0.4 mm

• UL Approved

• 3P Certified

  Technical Specifications

• TIA Cat5e Channel Test, 350 MHz at 80 meters:

  - Return Loss (db) = 16.3
  - Attenuation (db/100) = 45.0
  - Near-End Crosstalk (db) = 30.1
  - Power Sum-NEXT (db) = 28.1
  - Equal Level-FEXT (db) = 12.9
  - Power Sum-ELFEXT (db) = 9.9

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B000WL104W
• EAN: 0766623325899
• UPC: 766623325899



• Physical Specifications

• Product net weight: 9.25 kg
• Product gross weight: 9.75 kg
• Dimensions: 305 m
• Packaging: White Box
