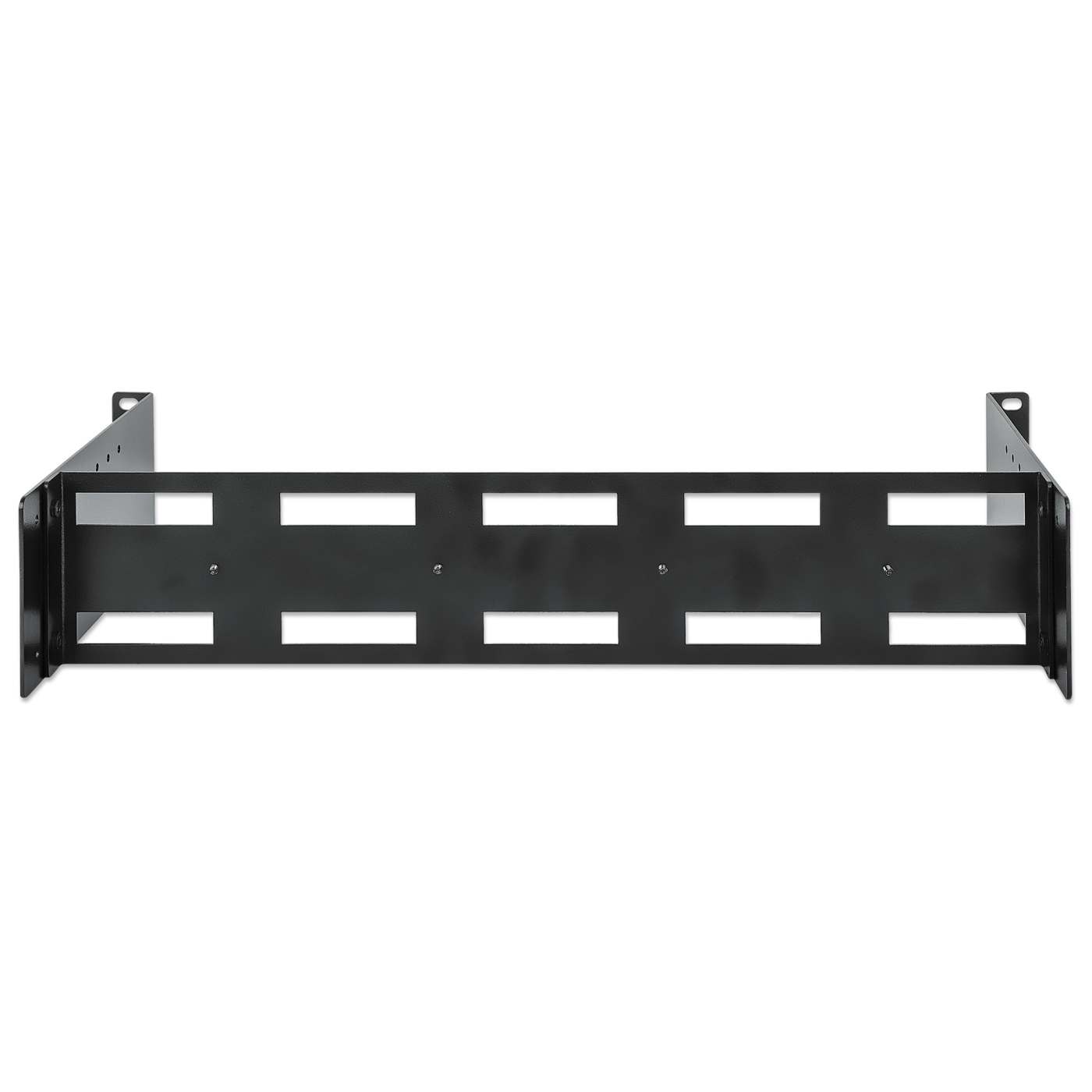

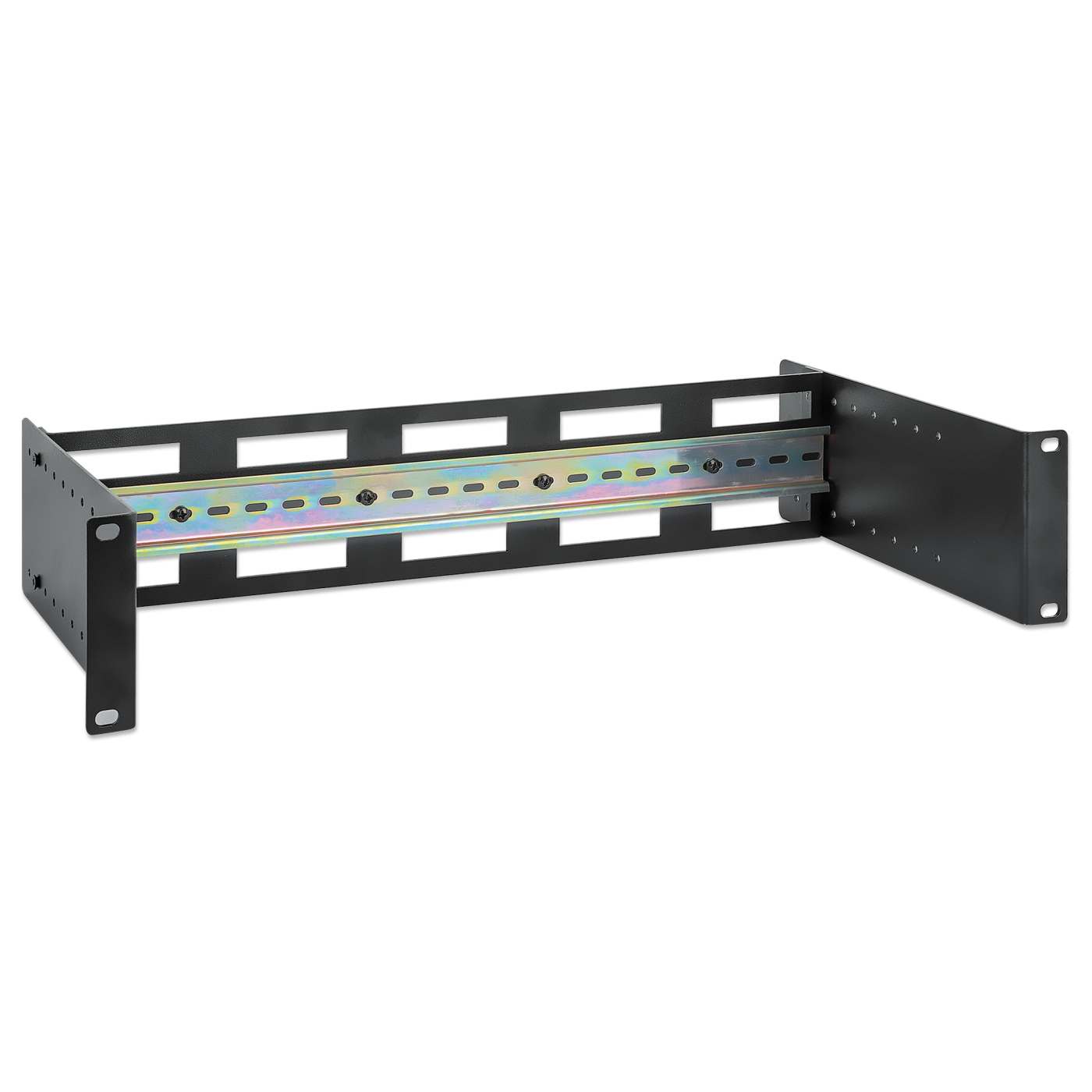

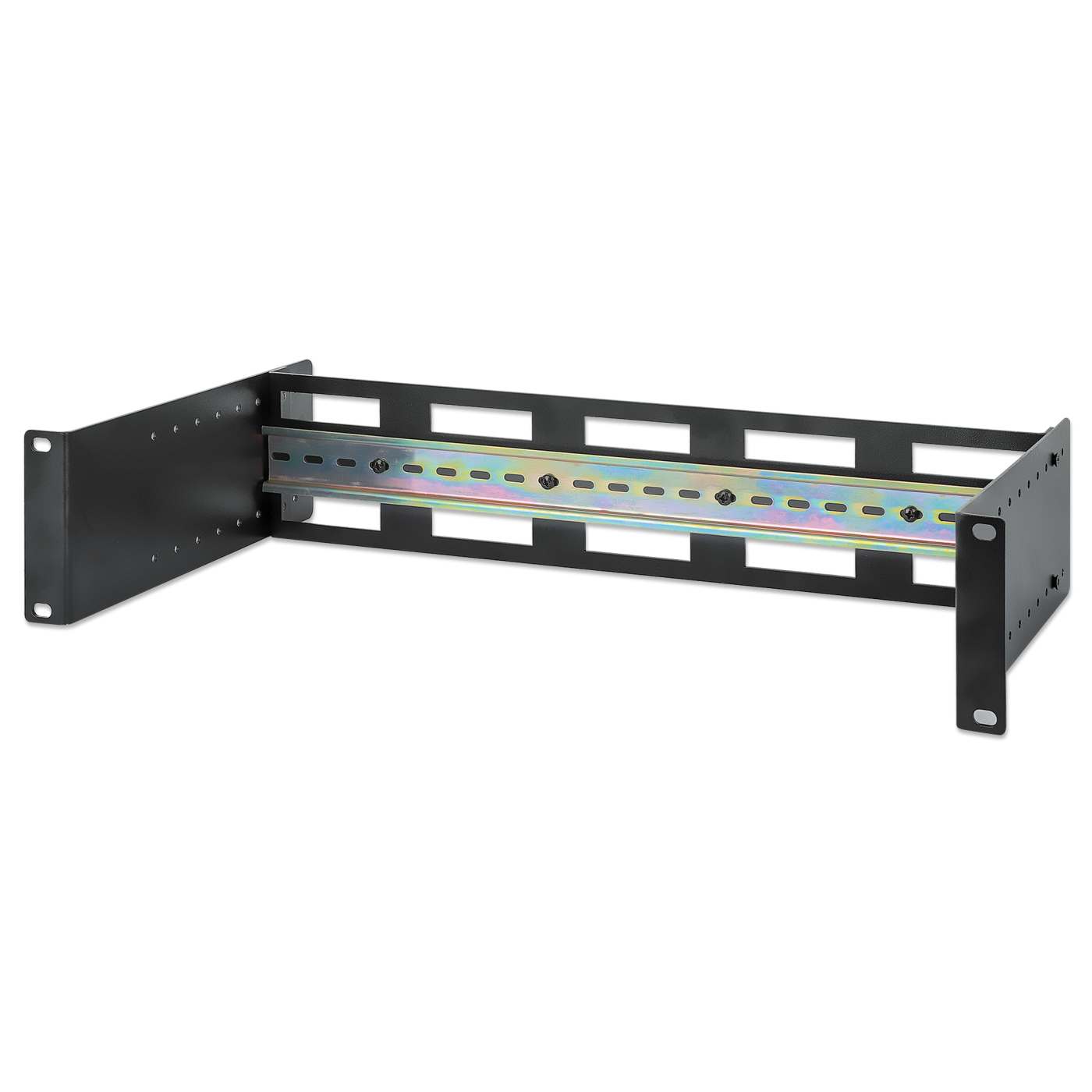

Adjustable 19" Rackmount DIN Rail Kit, 2U

Depth-Adjustable DIN Rail Rack-Mount Kit to Easily Mount Your Top Hat Equipment in a 19-inch Cabinet

The Adjustable 19" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.

Tailor Your Space with Depth Adjustment

With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs.

Compliant and Compatible

Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.

Durable Construction Built to Last

Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).

Everything You Need Included

We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19" mounting straight out of the box.

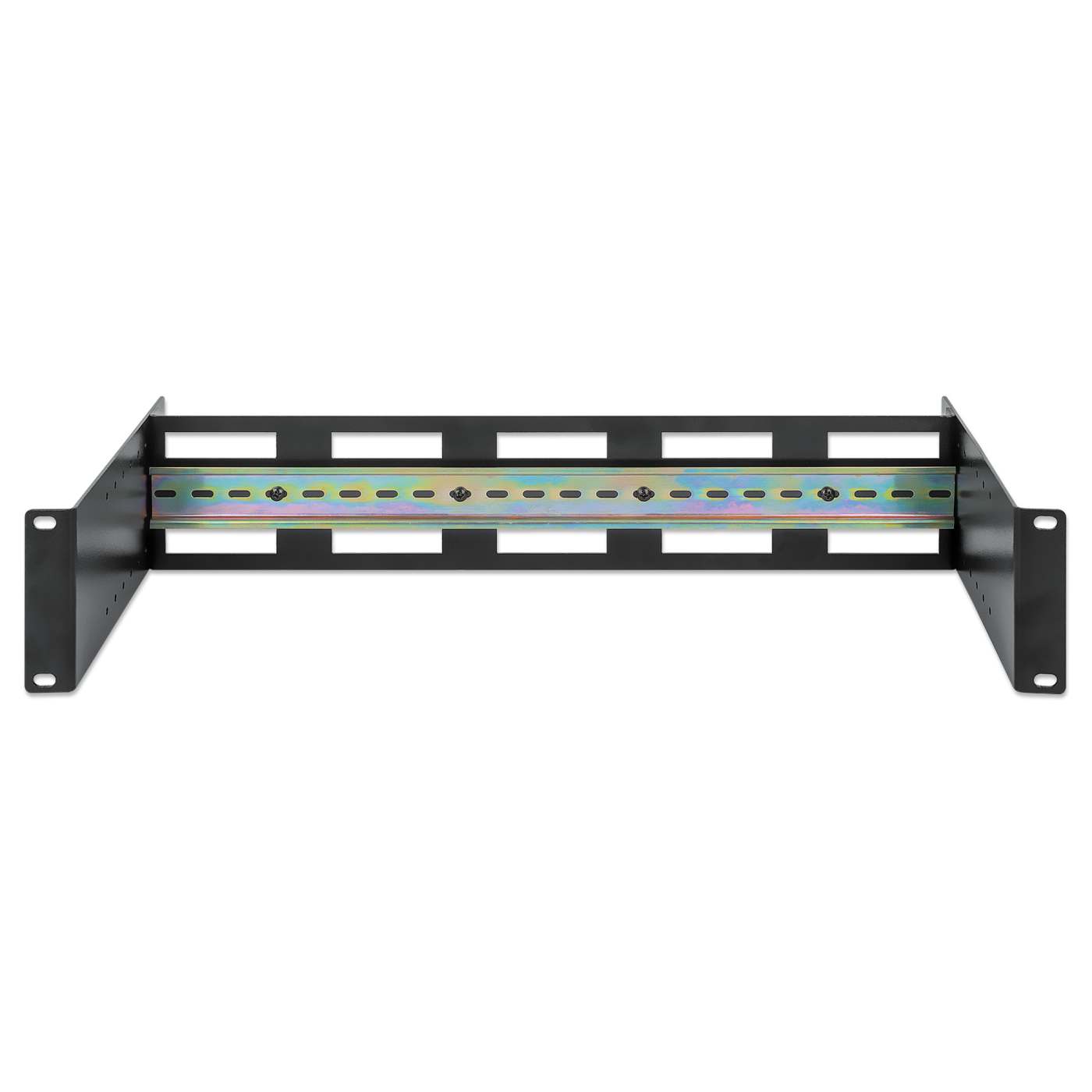

• Rack-mountable chassis with top hat DIN rail to easily install any 35 mm (0.79’’) equipment in a 19 in. network or server cabinet

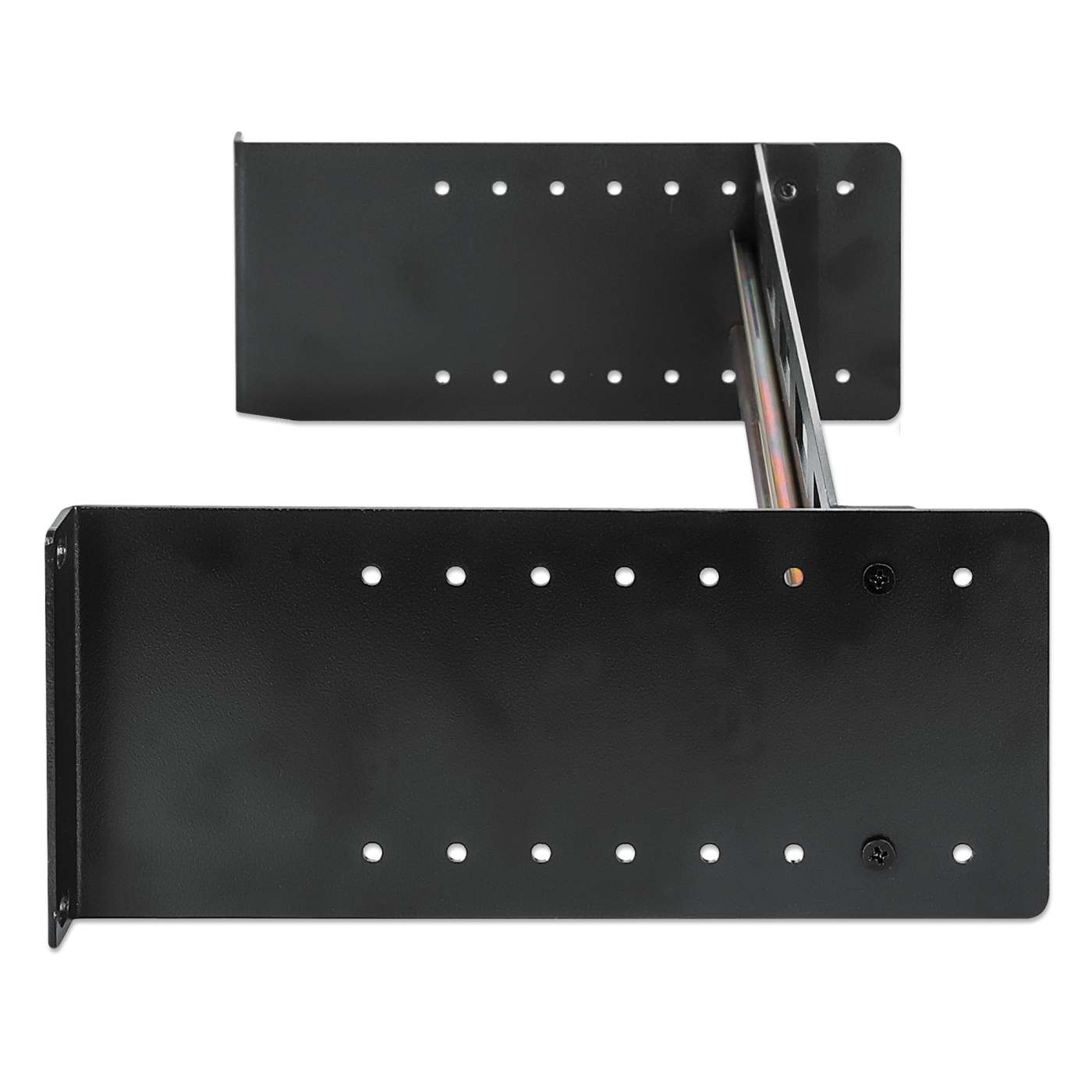

• Depth-adjustable on eight levels from 48 to 174 mm (1.89 to 6.85 in.) to accommodate a wide range of products

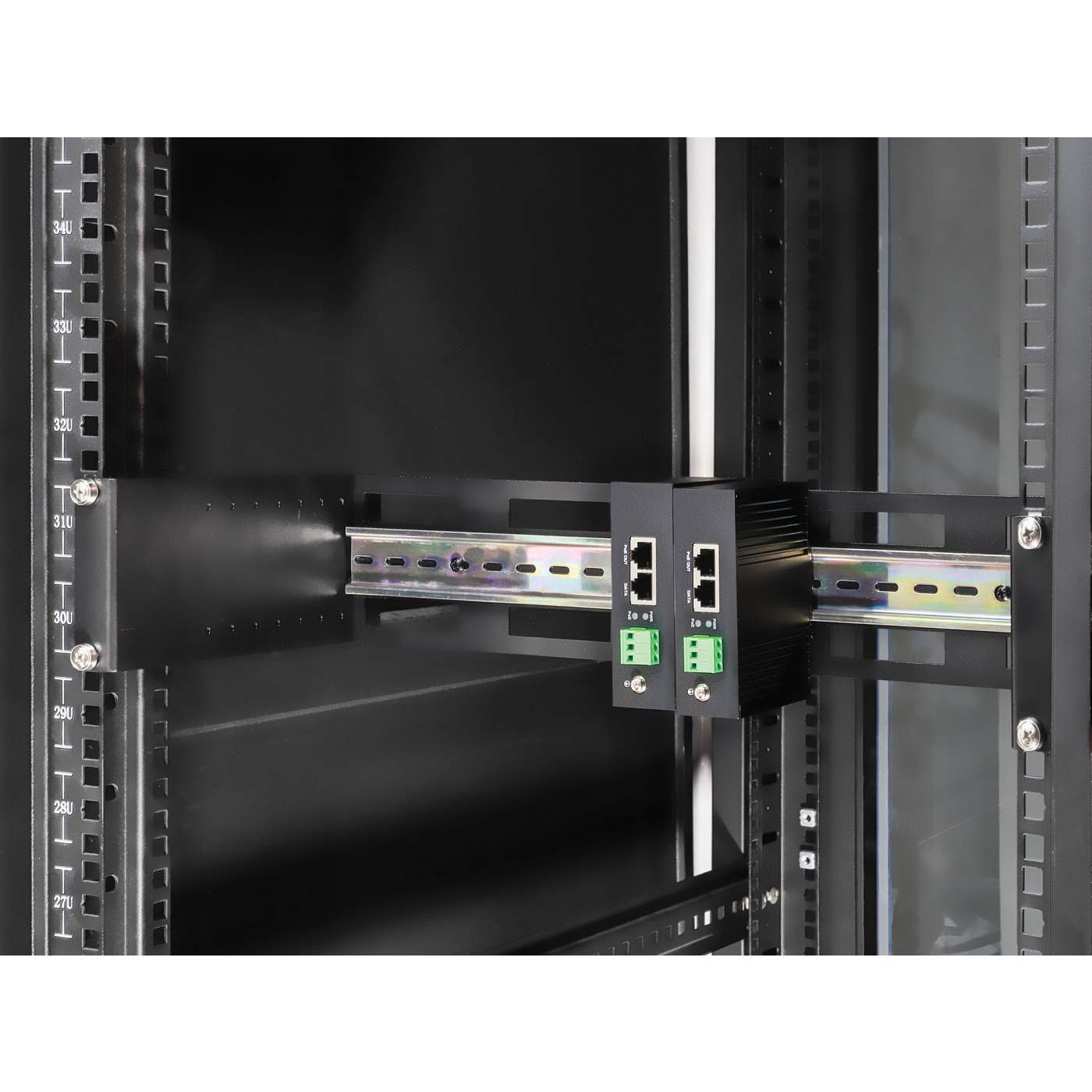

• Ideal for DIN-rail equipment like industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks and more
• IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
• DIN-rail in accordance with IEC/EN 60715
• Heavy-duty construction with anodized 2 mm thick aluminum
• Maximum load capacity of 9 kg (20 lbs.)
• Includes 19" mounting material with four M6x12 screws, four M6 cage nuts, and four M6 plastic washers
• Three-year warranty

Standards and Certifications

• RoHS

• ANSI/EIA 310-E

• IEC 60297-3

• IEC/EN 60715

  General

• Dimensions (D x W x H): 210 x 487 x 89 mm (8.27 x 19.17 x 3.5 in.); 2U

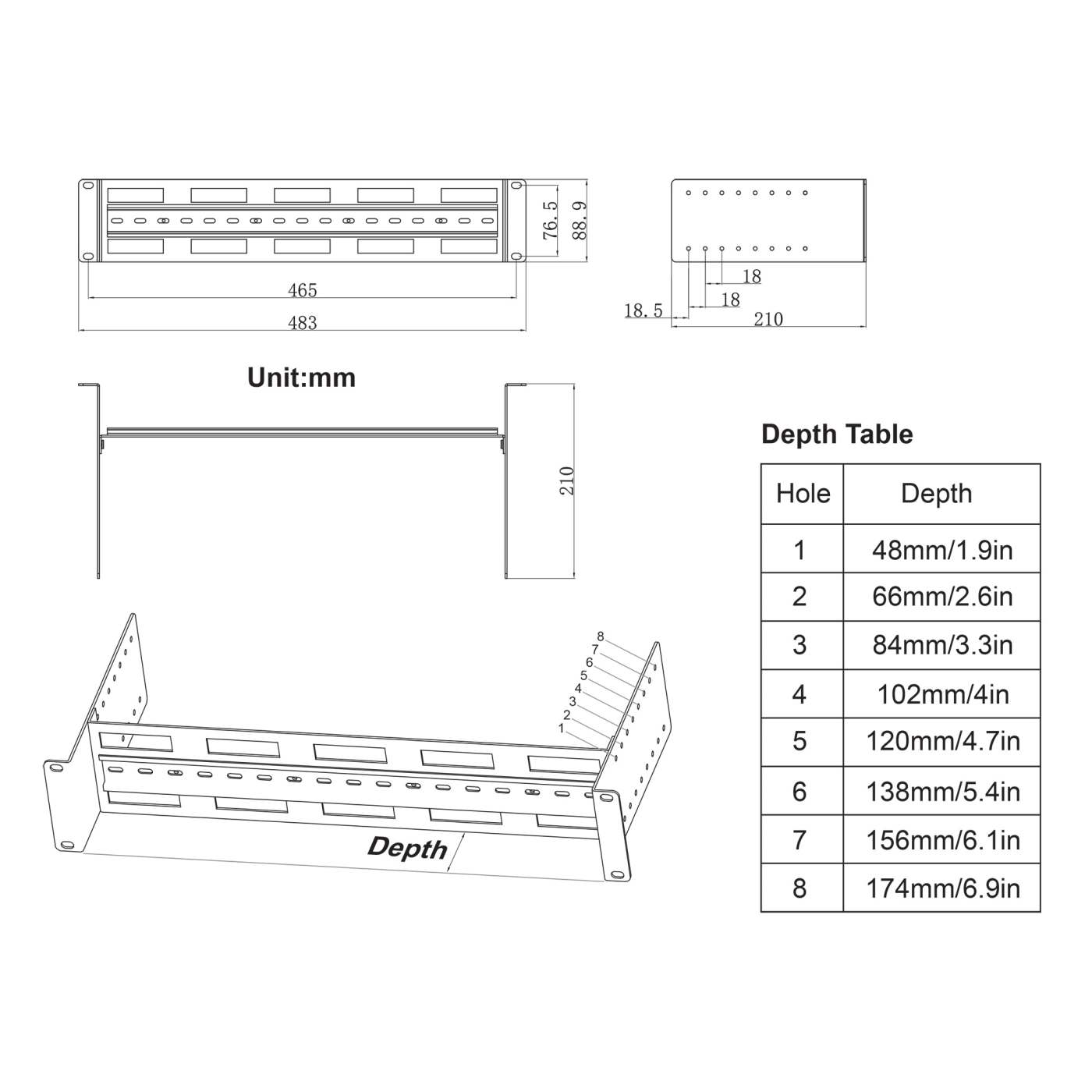

• Depth adjustment levels: 48/66/84/102/120/138/156/174 mm (1.9/2.6/3.3/4/4.7/5.4/6.1/6.9 in.)

• Net weight: 1.3 kg (2.87 lbs.)

• Gross weight: 1.55 kg (3.42 lbs.)

• Maximum load capacity: 9 kg (20 lbs.)

• Material: anodized aluminum, 2 mm

• Color: black

  Package Contents

• Adjustable 19" Rackmount DIN Rail Enclosure, 2U

• DIN rail (installed)

• Cage nut set for 19" rackmount equipment (4 x M6x12 screw, 4 x M6x12 cage nut, 4 x plastic washer)

• Four M4x8 flat head screws

• Additional SKUs

• Alphanumeric Part#: IRK-DIN-192U
• Amazon ASIN: B0CQ2PLNLG
• EAN: 0766623716345
• UPC: 766623716345



• Physical Specifications

• Product net weight: 1.3 kg
• Product gross weight: 1.48 kg
• Dimensions: 210 (L) x 481 (W) x 89 (H) [mm]
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download




• Manual
• Installation, Registration & Warranty Card     » Download
