5-in-1 Cable Tester

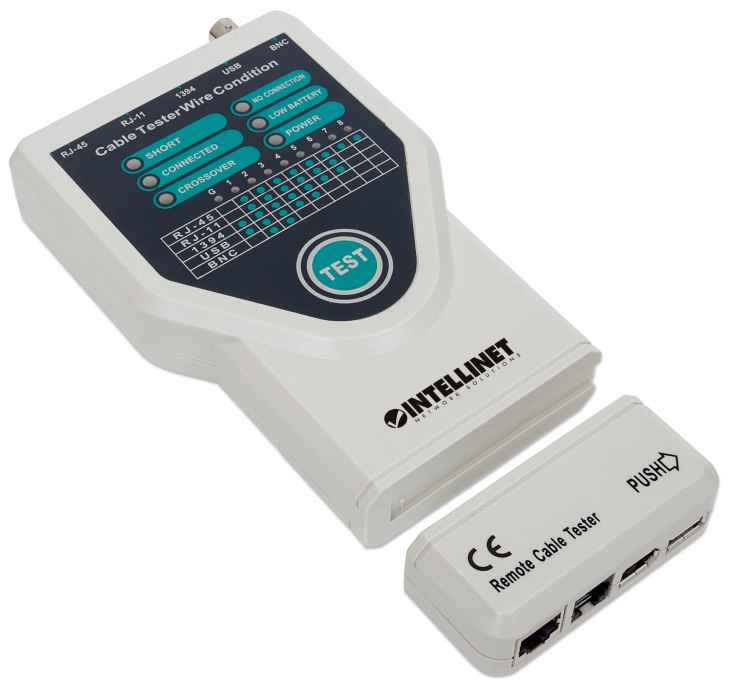

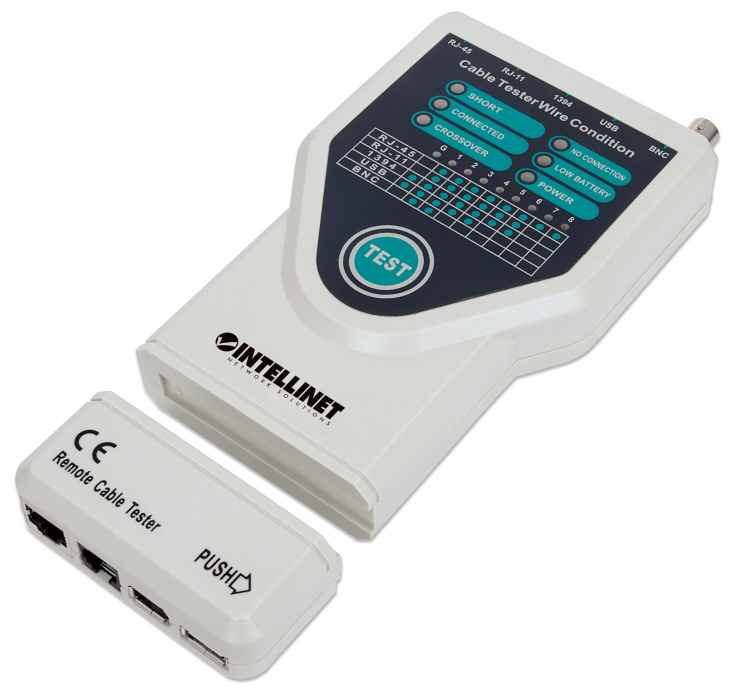

The Intellinet Network Solutions 5-in-1 Cable Tester is an affordable and versatile MIS tool that tests five common LAN and computer cables up to 600 ft. long: Ethernet (RJ45), 10Base, RJ11, FireWire (1394) and USB. It checks for continuity, crossover and shorting. Testing is completed with the press of a button, and LEDs indicate connections and faults of wires and pins. Designed for use with both shielded (STP) and unshielded (UTP) cables up to 180 m (600 ft.) long.

• Versatile cable tester for five commonly used network and computer cables
• For Cat5/6 network and ISDN connection tests
• USB AB- and IEEE1394 6-pin FireWire cable tester

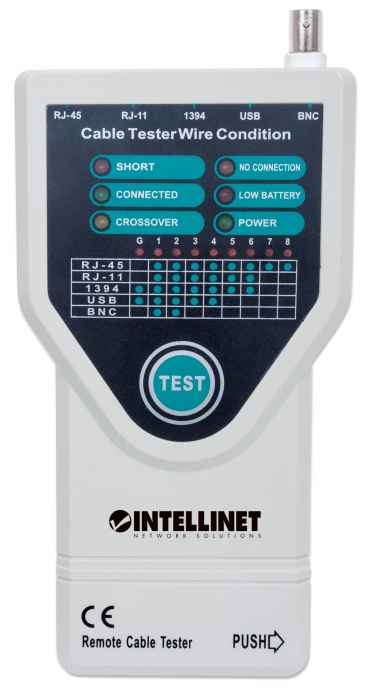

• Connection test with LED indicators for 8 single lines and screening
• Tests for: Short, Non-Parallel, No Connection
• Quality protective pouch
• Lifetime Warranty

• Open / Short wiring test

• Connected wires display

• No Connection / No Termination indicator

• Bad Connection / Non-Parallel Connection indicator

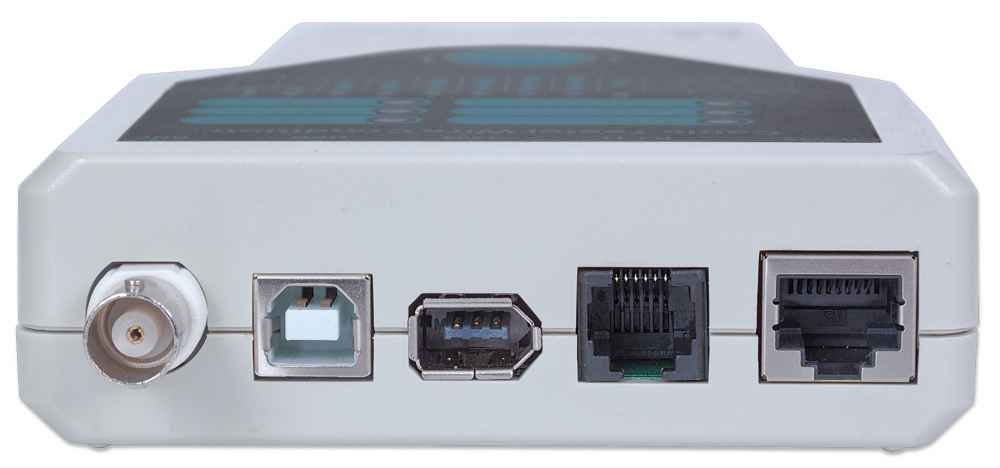

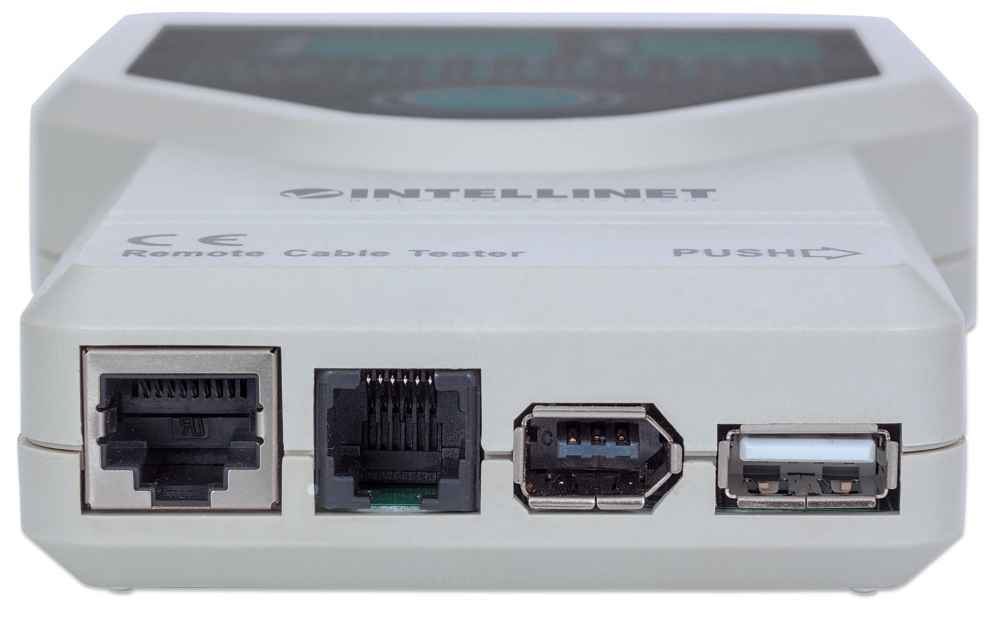

• Ethernet (RJ45), 10Base2 / BNC, RJ11, USB and FireWire testing options

  Package Contents

• Cable Tester

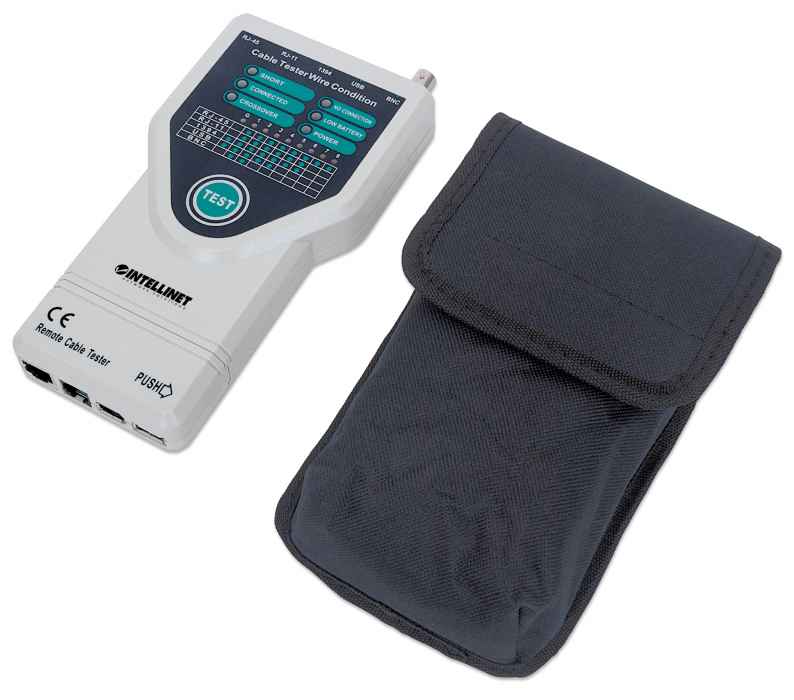

• Protective pouch

• Coaxial adapter

• Instructions

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: ICT-MF4
• Amazon ASIN: B018EAEF4E
• EAN: 0766623780094
• UPC: 766623780094



• Physical Specifications

• Product net weight: 0.35 kg
• Product gross weight: 0.4 kg
• Dimensions: 185 (L) x 31 (W) x 100 (H) [mm]
• Packaging: Retail Box

• Datasheet
• Datasheet     » Download




• Manual
• User Manual     » Download
