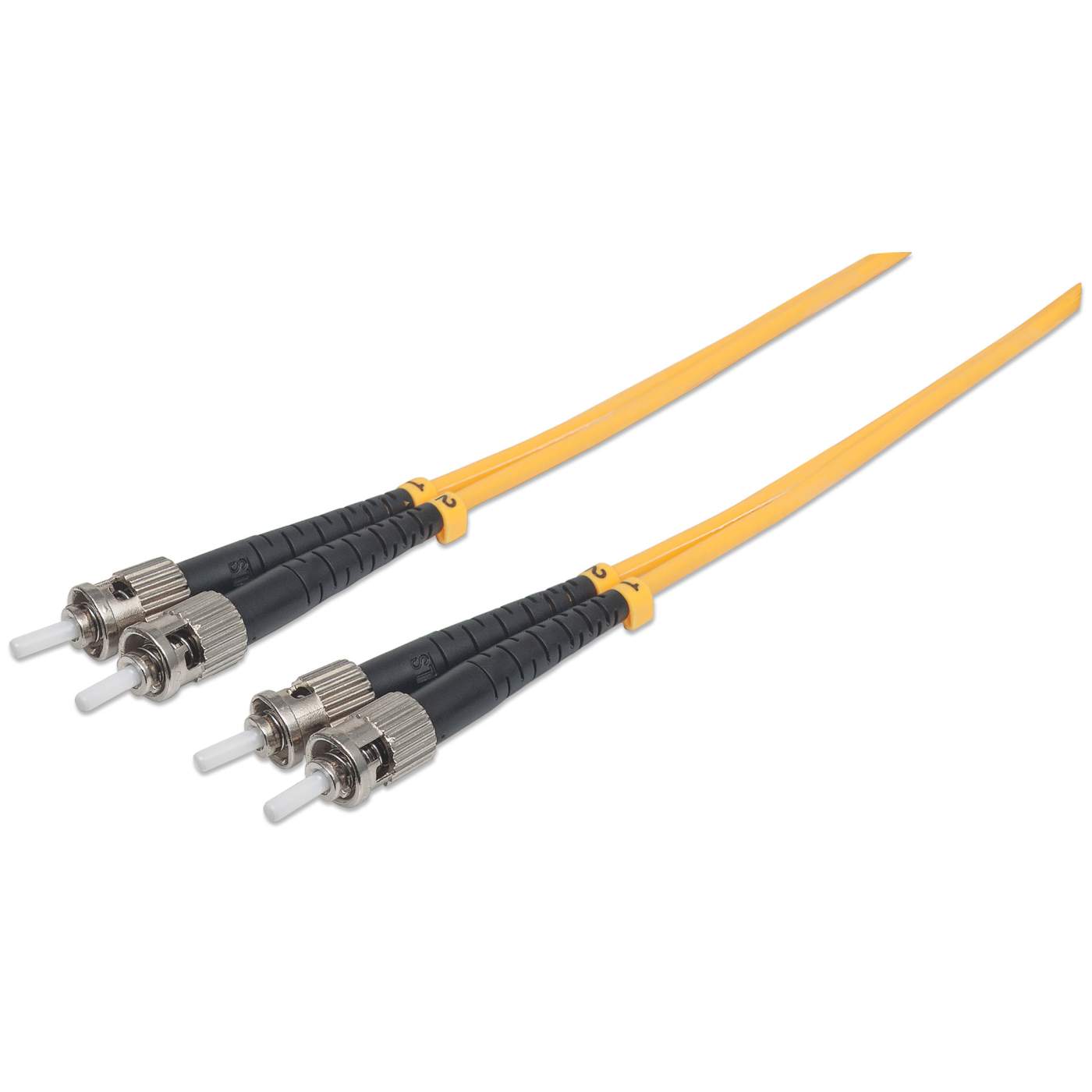

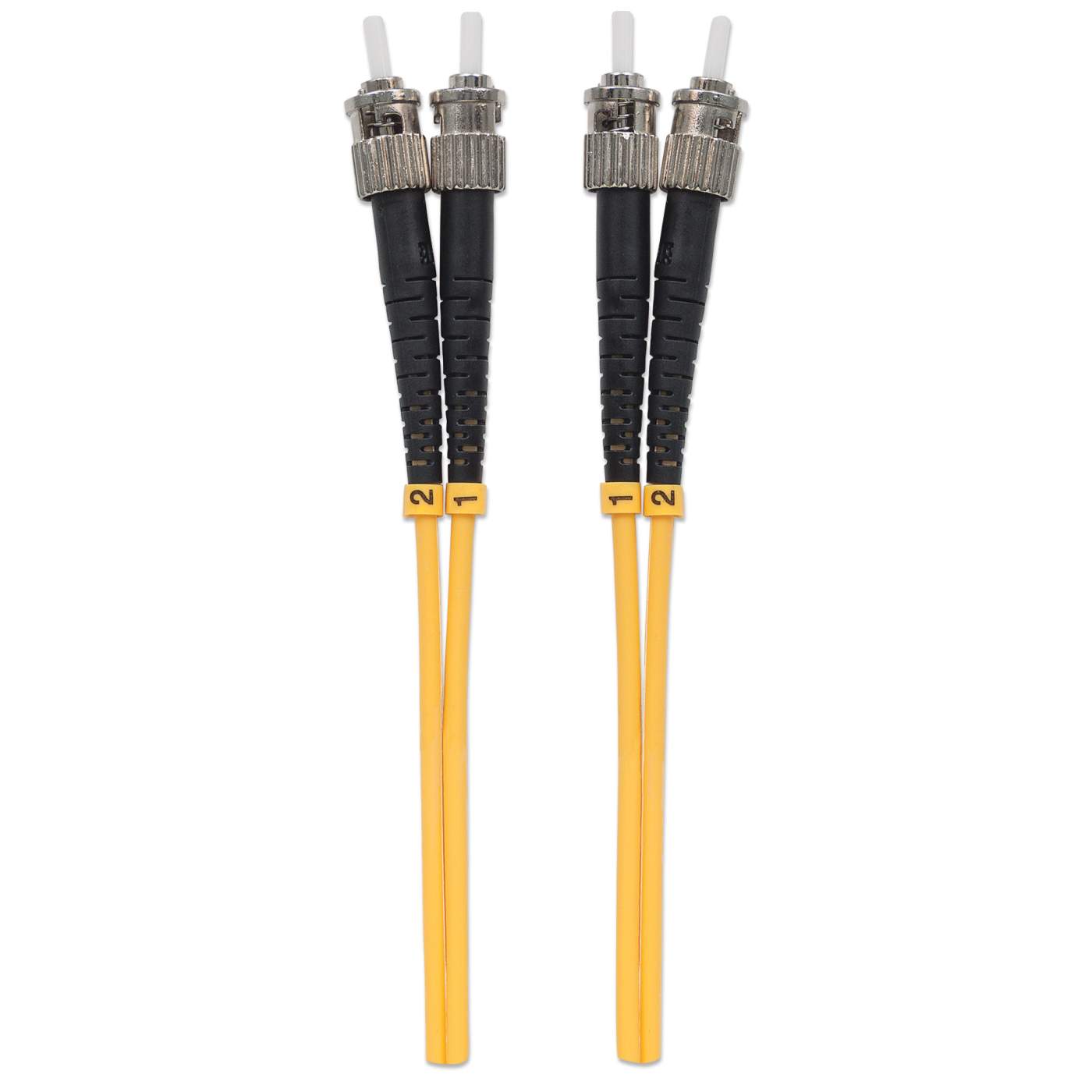

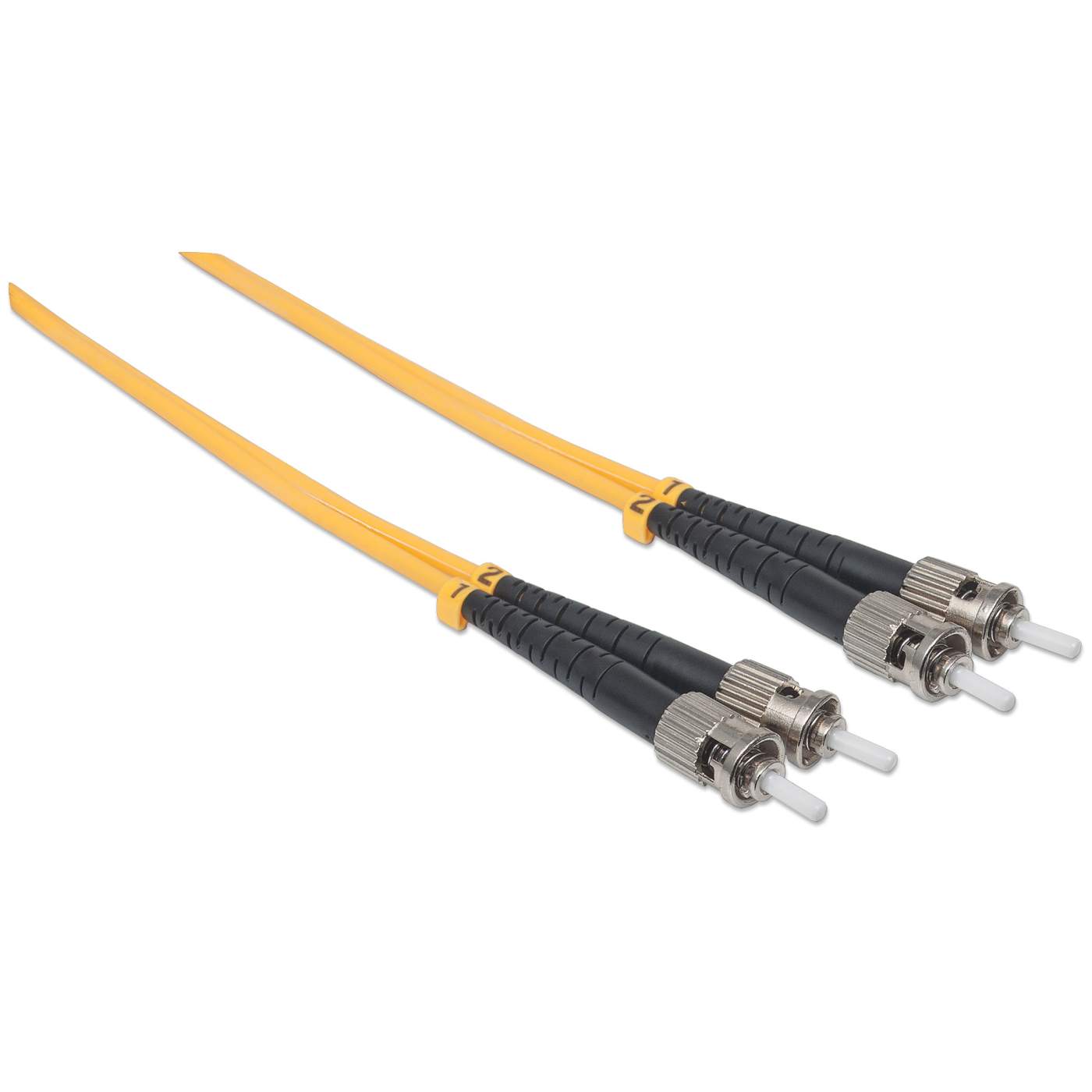

3 m ST to ST UPC Fiber Optic Patch Cable, 3.0 mm, Duplex, LSZH, OS2 Singlemode, Yellow
3 m ST to ST UPC Fiber Optic Patch Cable, 3.0 mm, Duplex, LSZH, OS2 Singlemode, Yellow
9/125 µm, 10 ft.
In stock
Buy at discounted prices
Qty | Discount | New unit price |
---|---|---|
5 | 5% off | $17.09 per unit |
10 | 10% off | $16.19 per unit |
20 | 15% off | $15.29 per unit |
50 | 20% off | $14.39 per unit |
Highlights
- Enjoy improved connectivity with UPC (Ultra Physical Contact) ST to ST fiber connectors, offering enhanced surface finish and reduced return loss for optimal performance.
- Versatile compatibility with single-mode fiber applications ensures seamless integration into various network setups.
- Experience reliable data transmission over extended distances thanks to high bandwidth support, ideal for networks requiring long-range connectivity.
- Minimize signal loss and achieve high data rates with this fiber cable, ensuring efficient and uninterrupted data transfer.
- Designed for the future, this cable is perfect for 10G Ethernet applications and beyond, providing the speed and reliability required for next-generation networks. Plus, rest assured with a lifetime warranty, ensuring long-term peace of mind for your network infrastructure.
[ view high resolution images ]
Share
Information carried in the form of light provides a vast array of features and benefits.
Superior Transmission Distance
It is not unusual for optical systems to go over 100 kilometers (km), or about 62 miles.
Enhanced Security
It is impossible to remotely detect a signal being transmitted within a fiber cable. The only way to do so is by actually accessing the optical fiber itself. This makes fiber extremely attractive to governmental bodies, banks and other businesses with major security concerns.
No Metallic Components
Fiber optic cable can be installed in areas with electromagnetic interference (EMI). This includes areas around utility lines, power-carrying lines and railroad tracks. Fiber is also ideal for areas of high lightning-strike incidence.
- High bandwidth supporting long distances
- Low signal loss and high data rate
- Perfect for use in 10 Gigabit Ethernet applications and beyond
- Lifetime Warranty
- Diameters:
- Core: 9 µm
- Cladding: 125 µm - Fiber type: single-mode

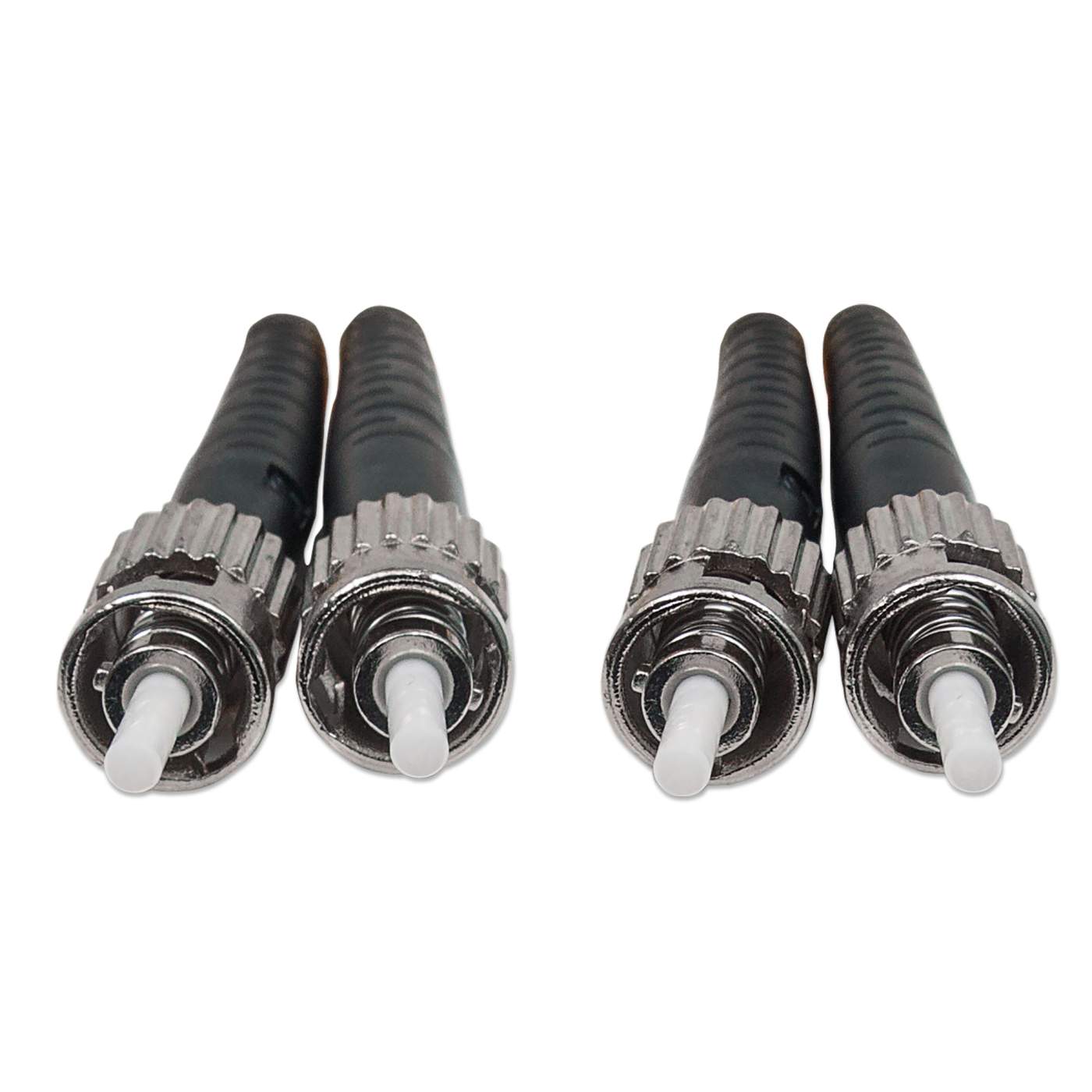

- Connectors: ST to ST
- Duplex
- Jacket material: LSZH
- Jacket OD: 3.0 mm
- Jacket color: yellow
- Ferrule Material: Ceramic
- Polishing: UPC
- Operation Temperature Range: -40°C to +75°C
- Bending radius: 30 mm
- Return loss: ≥55dB
- Insertion loss: ≤ 0.25 dB
Additional SKUs
- EAN: 0766623751278
- UPC: 766623751278
Physical Specifications
- Product net weight: 0.05 kg
- Product gross weight: 0.07 kg
- Dimensions: 3 m

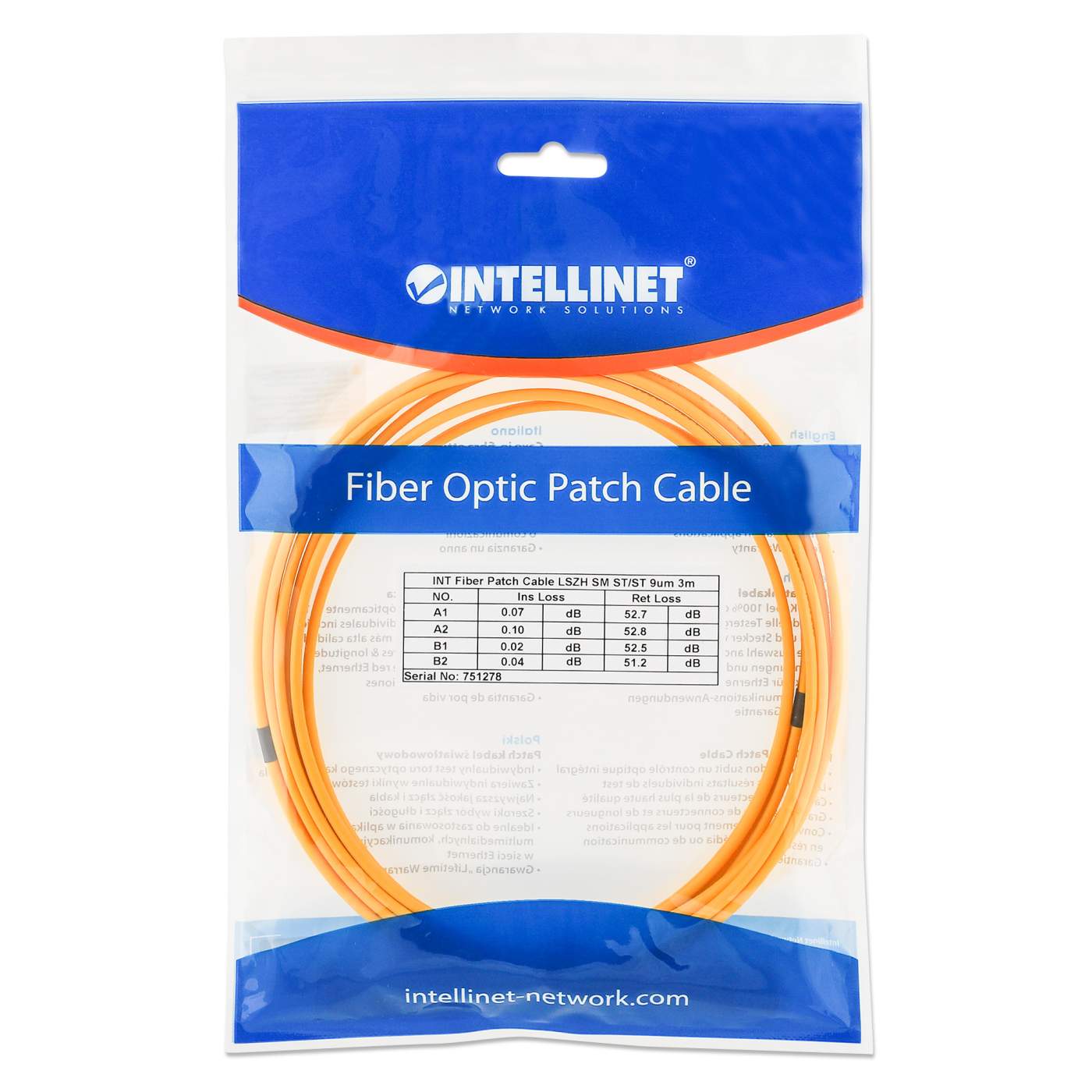

- Packaging: Bag
