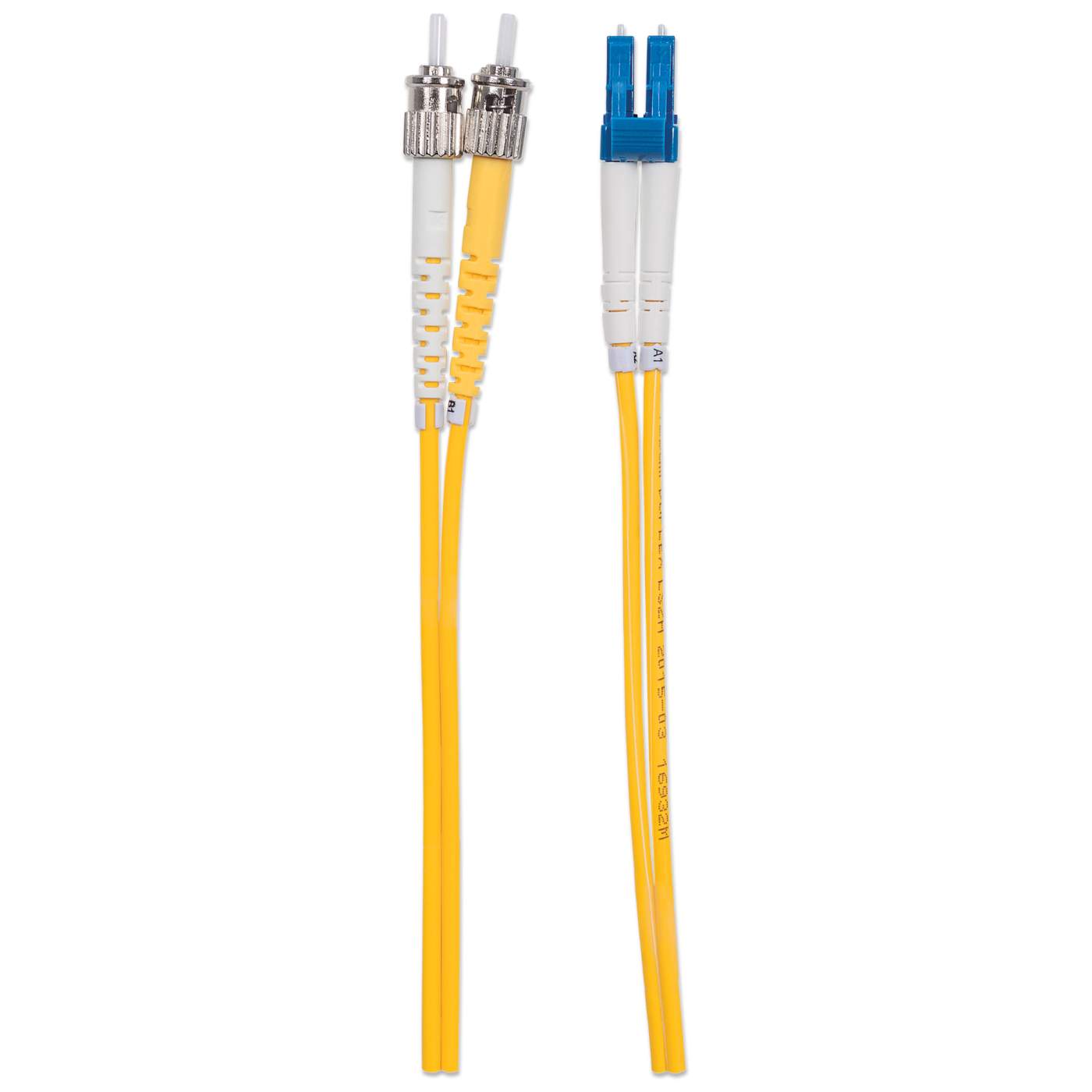

2 m LC to ST UPC Fiber Optic Patch Cable, 3.0 mm, Duplex, LSZH, OS2 Singlemode, Yellow
2 m LC to ST UPC Fiber Optic Patch Cable, 3.0 mm, Duplex, LSZH, OS2 Singlemode, Yellow
9/125 µm, 7 ft.
In stock
Regular price
$15.99 USD
Regular price
Sale price
$15.99 USD
Unit price
/
per
Buy at discounted prices
Qty | Discount | New unit price |
---|---|---|
5 | 5% off | $15.19 per unit |
10 | 10% off | $14.39 per unit |
20 | 15% off | $13.59 per unit |
50 | 20% off | $12.79 per unit |
Highlights
- UPC (Ultra Physical Contact) LC to ST fiber connectors ensure a superior surface finish and reduced return loss, optimizing data transmission quality.
- Compatibility with single-mode fiber applications expands versatility for various networking needs.
- High bandwidth capabilities enable seamless connectivity over extended distances, enhancing network performance.
- Minimal signal loss and high data rates guarantee efficient data transmission, maintaining optimal network efficiency.
- Tailored for 10G Ethernet applications and beyond, ensuring compatibility with modern networking standards for future-proof connectivity.
- Backed by a lifetime warranty, providing customers with confidence in the product's durability and reliability.
[ view high resolution images ]
Share
Information carried in the form of light provides a vast array of features and benefits
Superior Transmission Distance
It is not unusual for optical systems to go over 100 kilometers (km), or about 62 miles.
Enhanced Security
It is impossible to remotely detect a signal being transmitted within a fiber cable. The only way to do so is by actually accessing the optical fiber itself. This makes fiber extremely attractive to governmental bodies, banks and other businesses with major security concerns.
No Metallic Components
Fiber optic cable can be installed in areas with electromagnetic interference (EMI). This includes areas around utility lines, power-carrying lines and railroad tracks. Fiber is also ideal for areas of high lightning-strike incidence.
- UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss
- Compatible with single-mode fiber applications
- High bandwidth supporting long distances
- Low signal loss and high data rate
- Perfect for use in 10G Ethernet applications and beyond
- Lifetime Warranty
- Diameters:
- Core: 9 µm
- Cladding: 125 µm - Fiber type: single-mode
- Connectors: LC to ST
- Duplex
- Jacket material: LSZH
- Jacket OD: 3.0 mm
- Jacket color: yellow
- Ferrule Material: Ceramic
- Polishing: UPC
- Operation Temperature Range: -40°C to +75°C
- Bending radius: 30 mm
- Return loss: ≥55dB
- Insertion loss: ≤ 0.25 dB
Additional SKUs
- Amazon ASIN: B0072IIKBY
- EAN: 0766623750011
- UPC: 766623750011
Physical Specifications
- Product net weight: 0.06 kg
- Product gross weight: 0.08 kg
- Dimensions: 2 m
- Packaging: Bag
