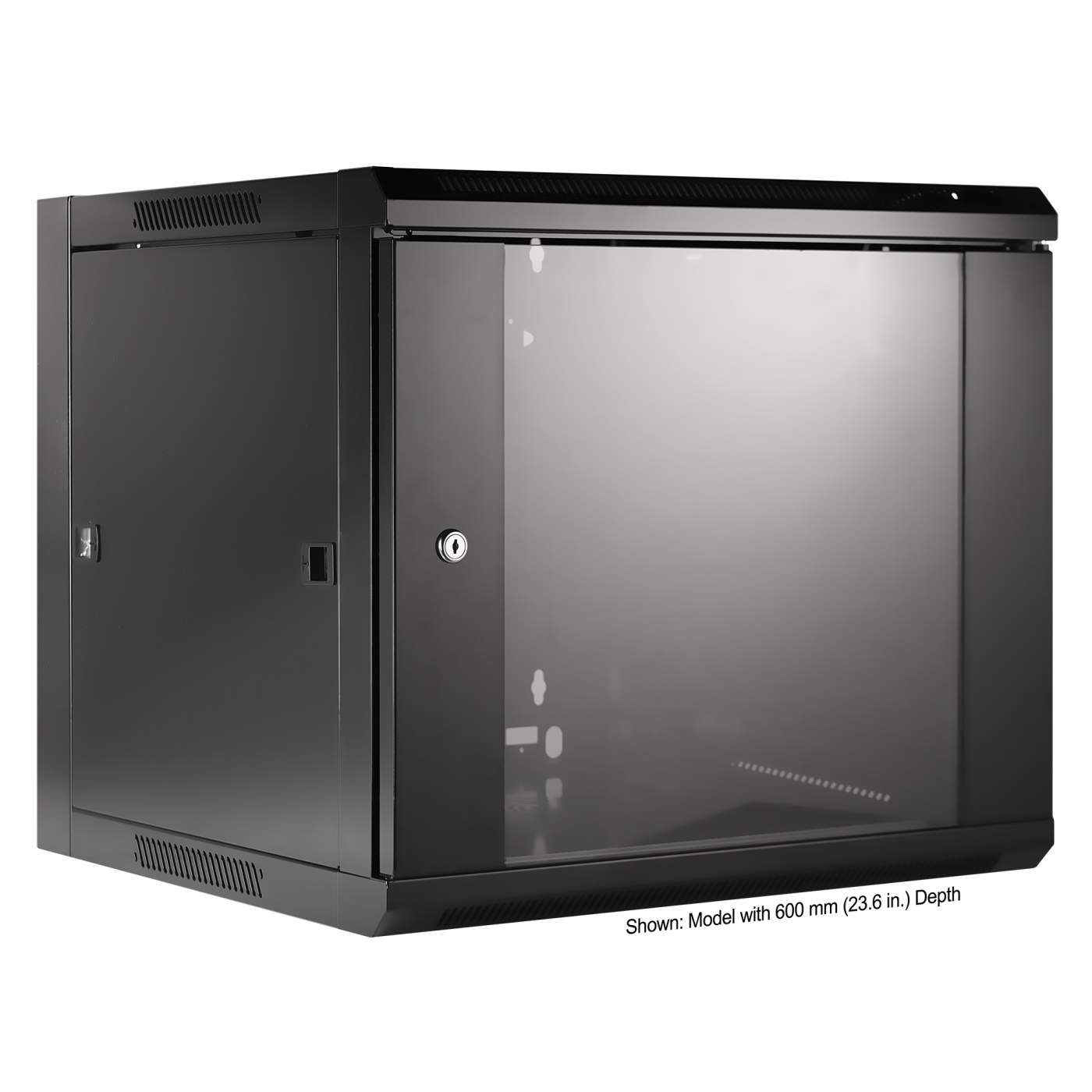

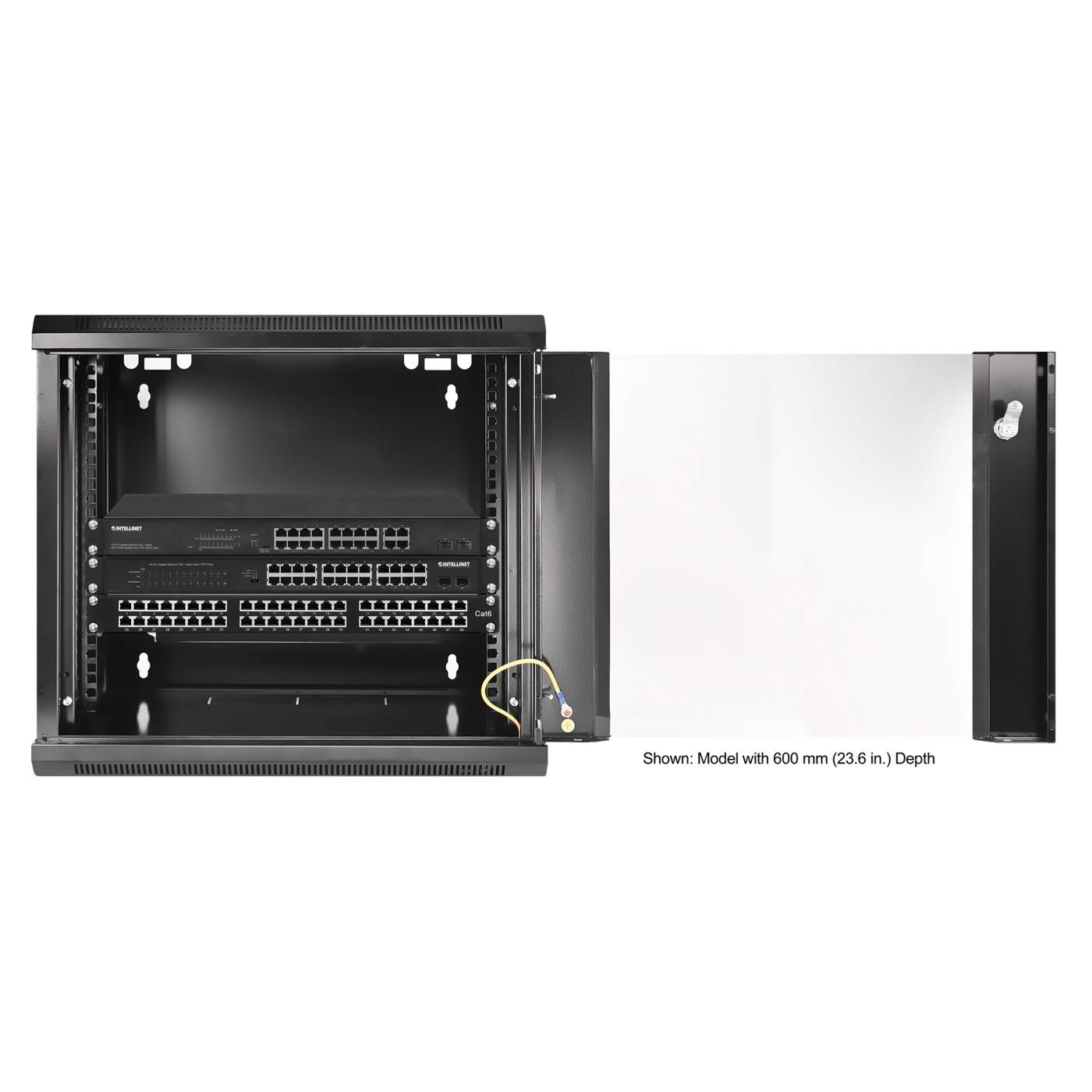

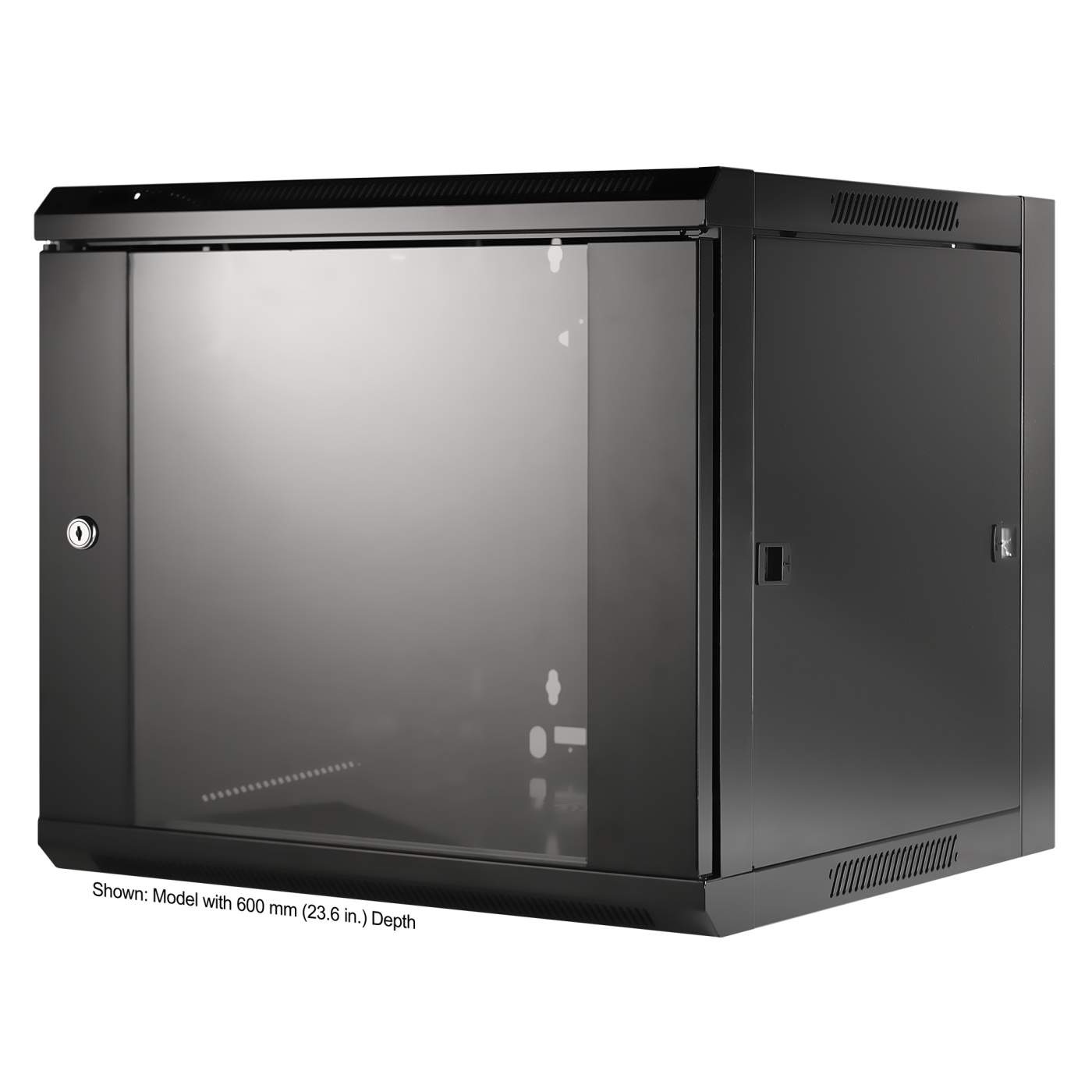

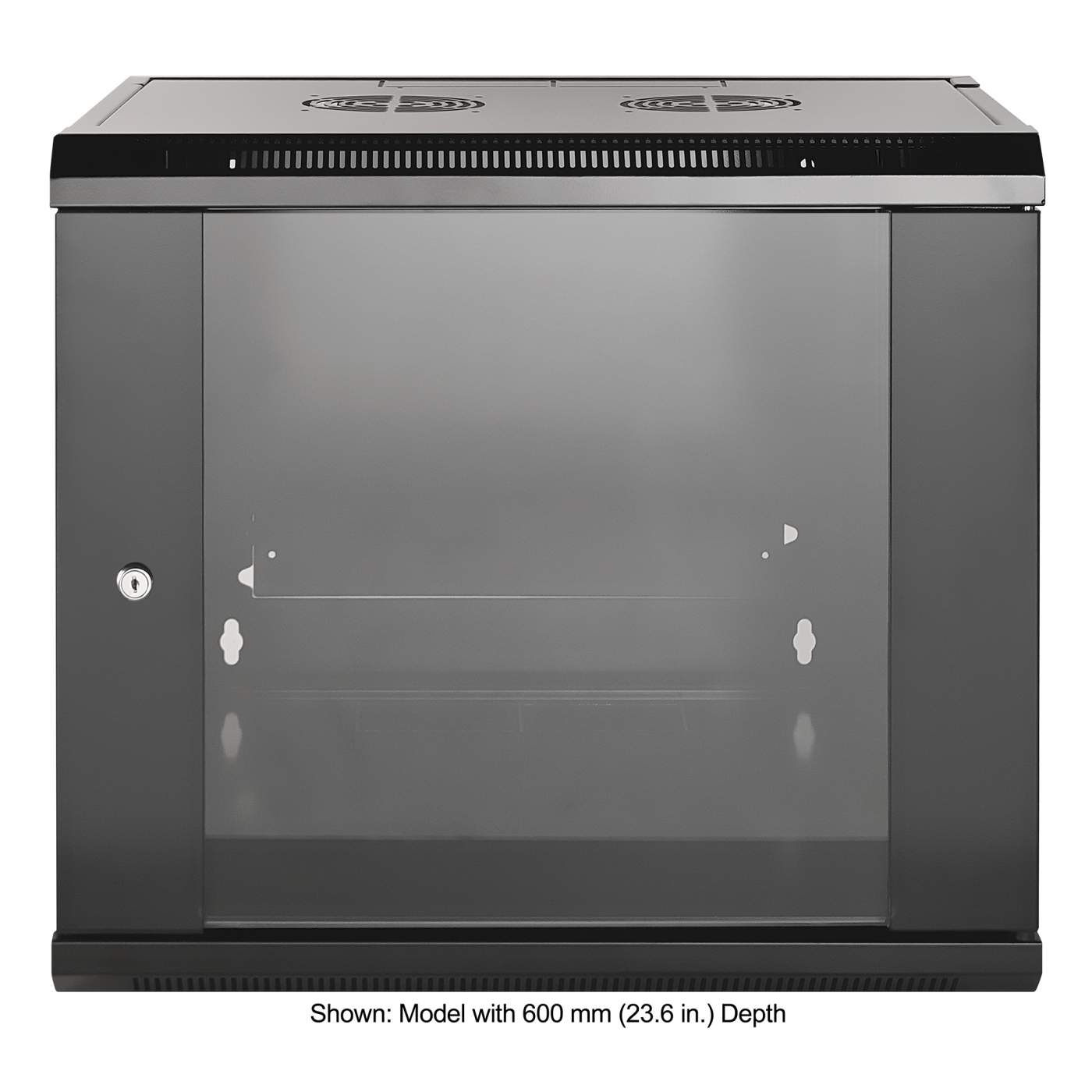

9U Wall Mount Cabinet Server Rack Enclosure - 450 mm - Glass Door

Intellinet Network Solutions wallmount cabinets offer you a flexible and comprehensive solution for your network installations. Top quality materials and workmanship include cold-rolled, galvanized steel frame and a tempered-glass door; while the flat-pack (unassembled) shipping* saves you space and money.

*Completely assembled versions are available in certain countries.

• Ideal for 19" rackmount applications
• Maximum static load of 60 kg
• Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)
• Tempered-glass door can be opened more than 180°

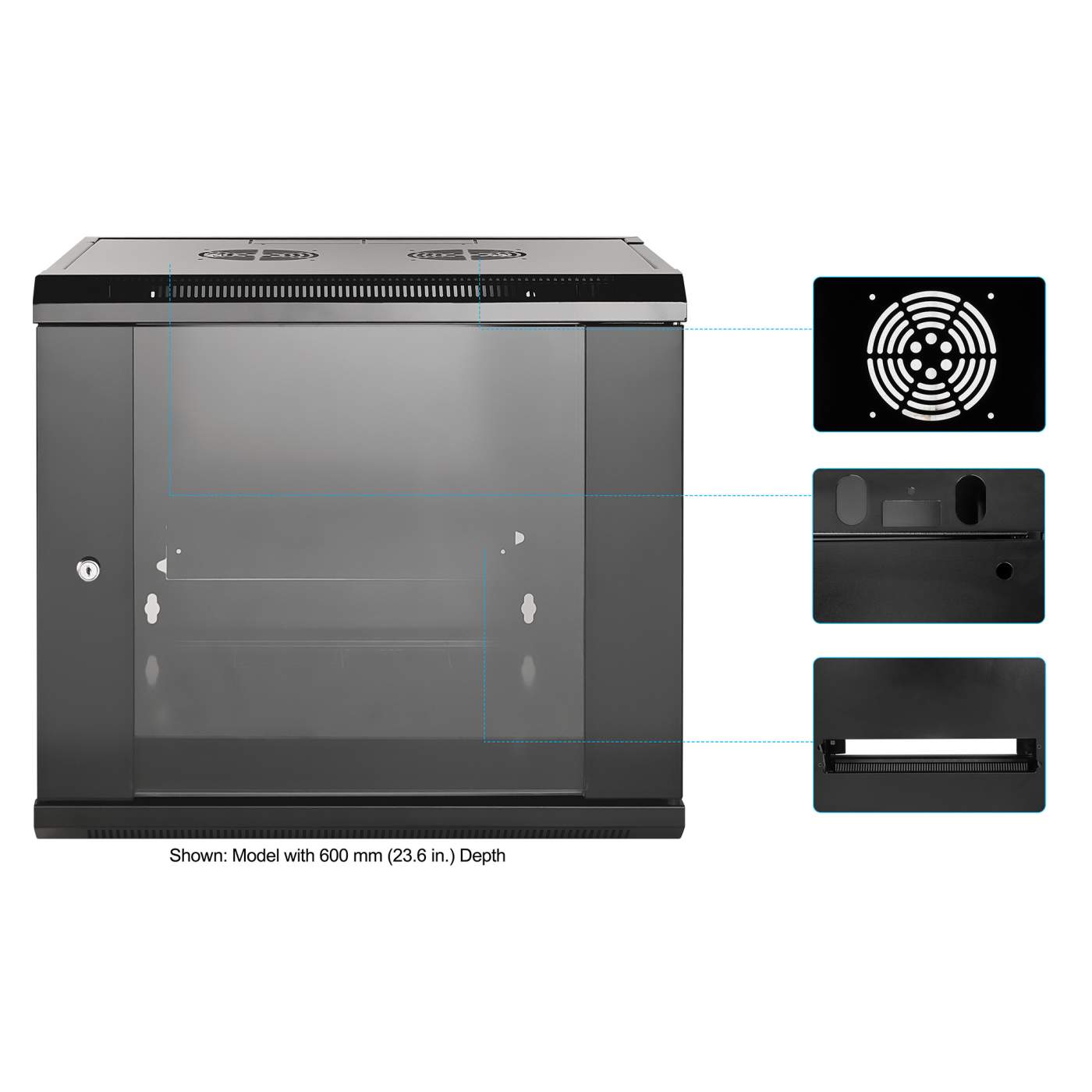

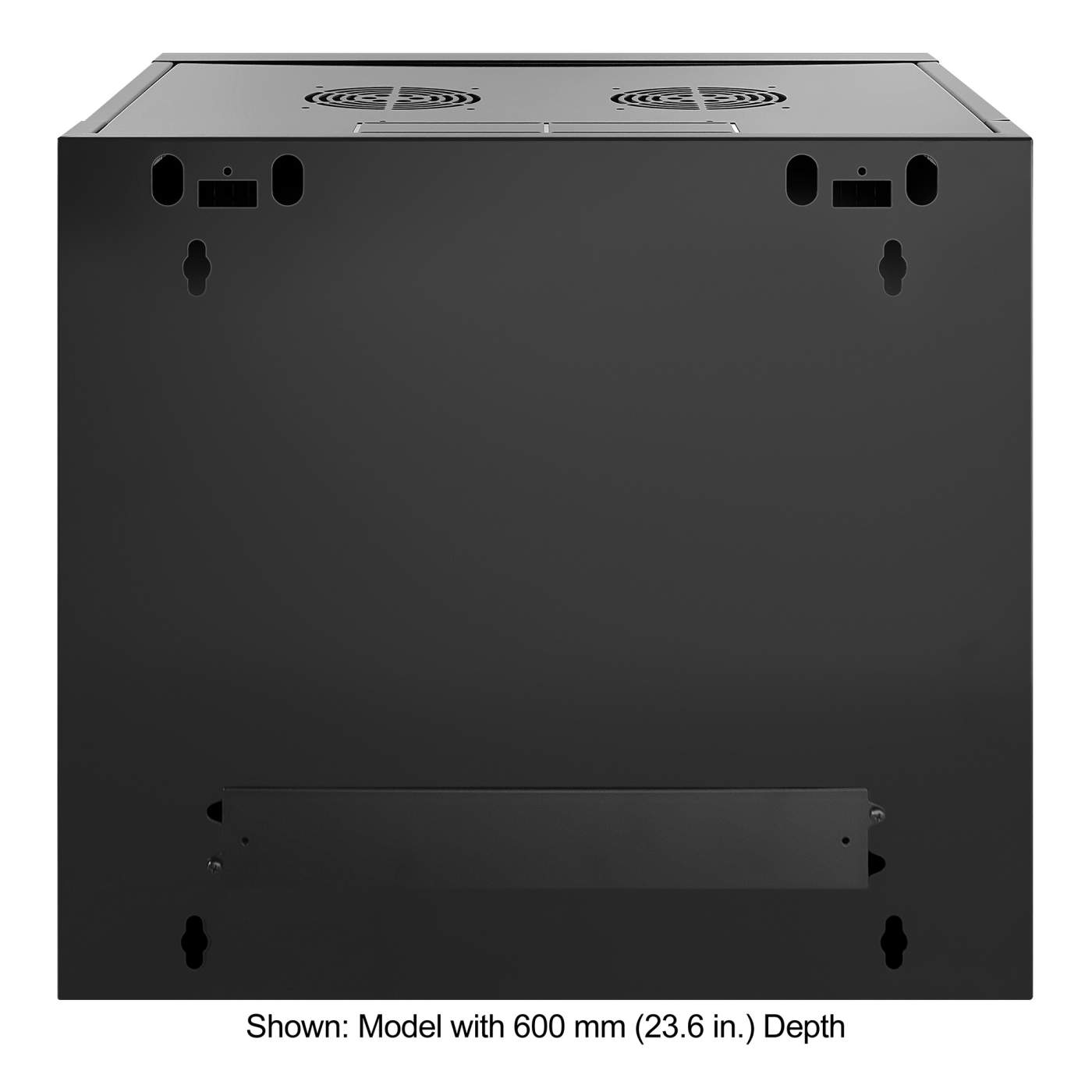

• Cable entry via rear or top panel
• Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
• Reversible Front door
• Easily removable side panels
• Ships flatpacked
• Three-Year Warranty

General

• 19"

• Height: 9U

• Color: Black RAL 9004

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Dimensions

• 500 (h) x 570 (w) x 450 (d) mm

• 19.7 (h) x 22.4 (w) x 17.7 (d) in.

• Usable depth: 270 mm (10.63 in.) to 350 mm (13.78 in.)

  Package Contents

• 2 depth-adjustable mounting rails

• Installation hardware including tool, 10x M6 Sets and 6x Keys

  There is a 2-piece set of spare rails available for this product by the model number shown:

• #712446

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: INC-WMF-18-9U
• Amazon ASIN: B00NYQQBB4
• EAN: 0766623711777
• UPC: 766623711777



• Physical Specifications

• Product net weight: 17.5 kg
• Product gross weight: 18 kg
• Dimensions: 500 x 570 x 450 (mm)
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download


• Technical Drawing     » Download


• Declaration of Conformity     » Download




• Manual
• Wallmount Assembly Guide
  Wallmount assembly guide.     » Download
