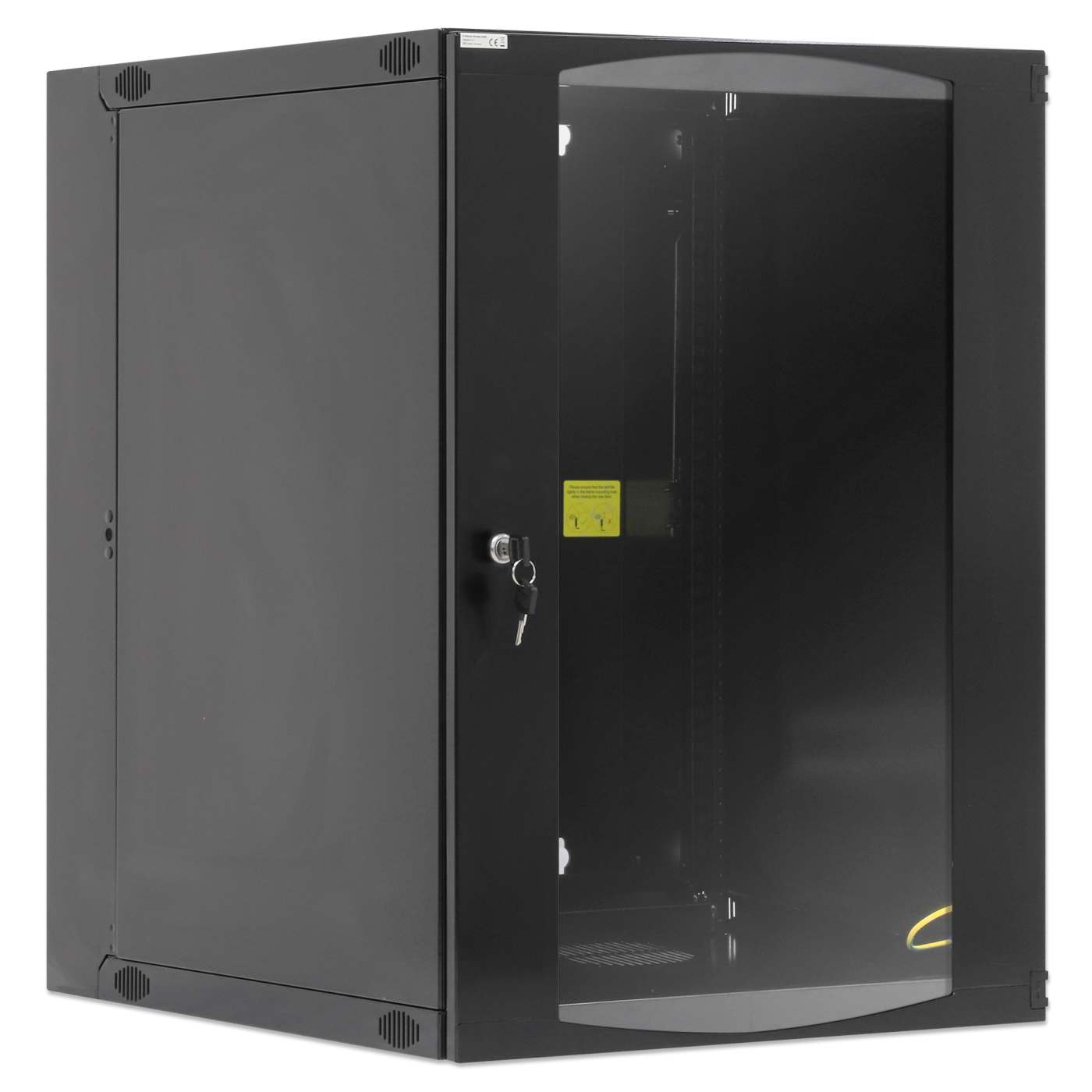

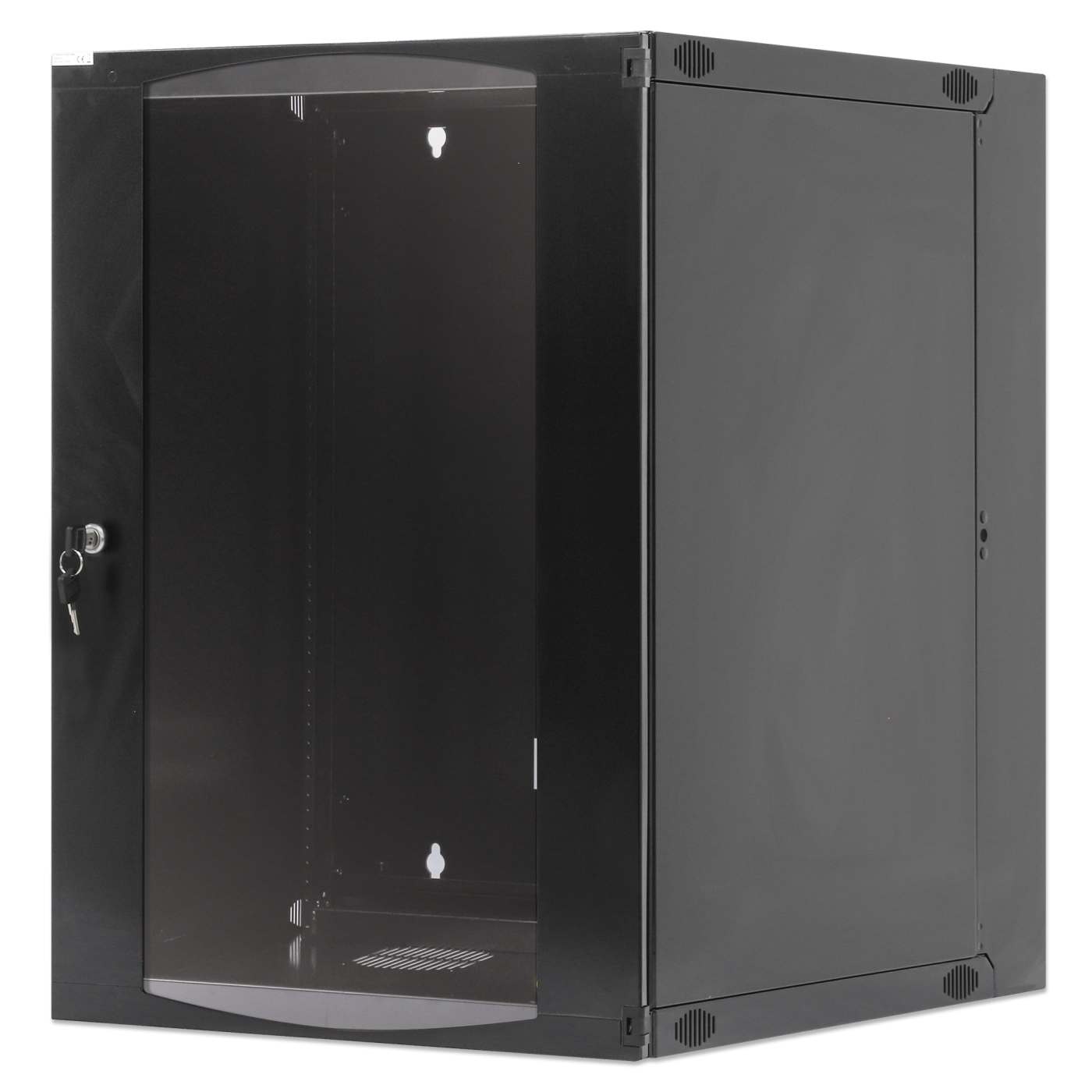

15U Swing Out Wall Mount Cabinet Server Rack Enclosure - 600 mm - Glass Door

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.
*Completely assembled versions are available in certain countries.

• Ideal for 19" rackmount applications
• Maximum static load of 30 kg
• Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)
• Cable entry via rear or top panel

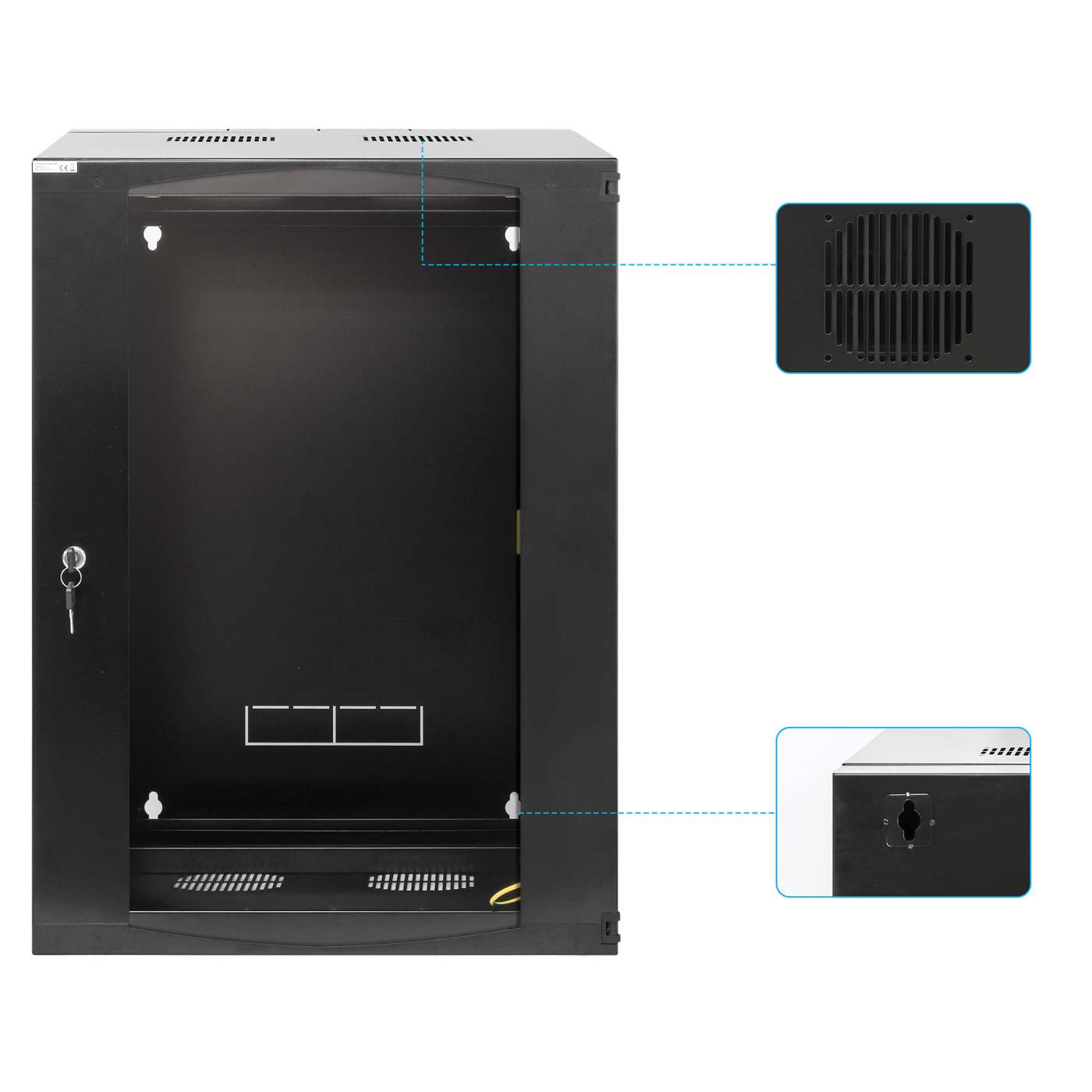

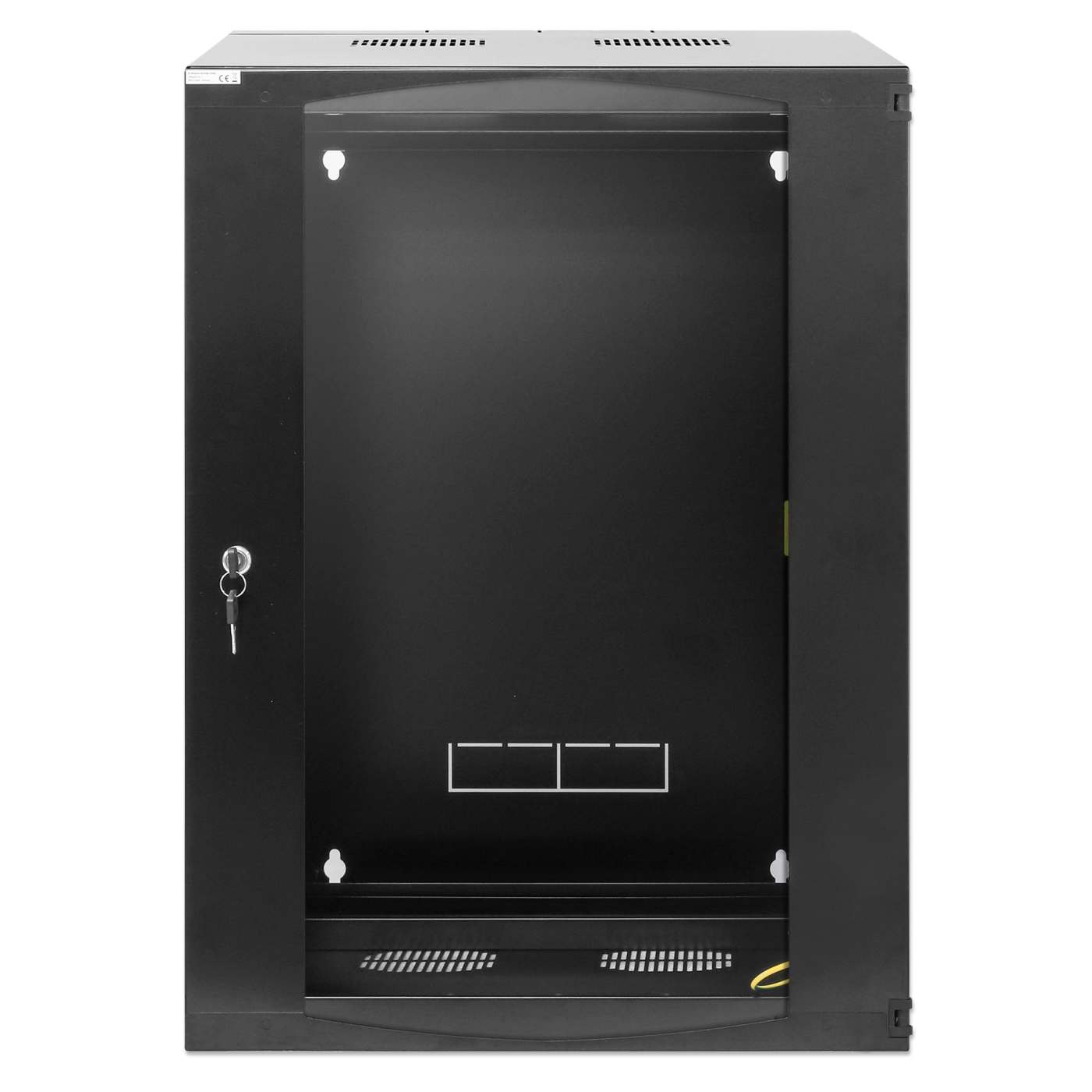

• 4MM toughened glass door

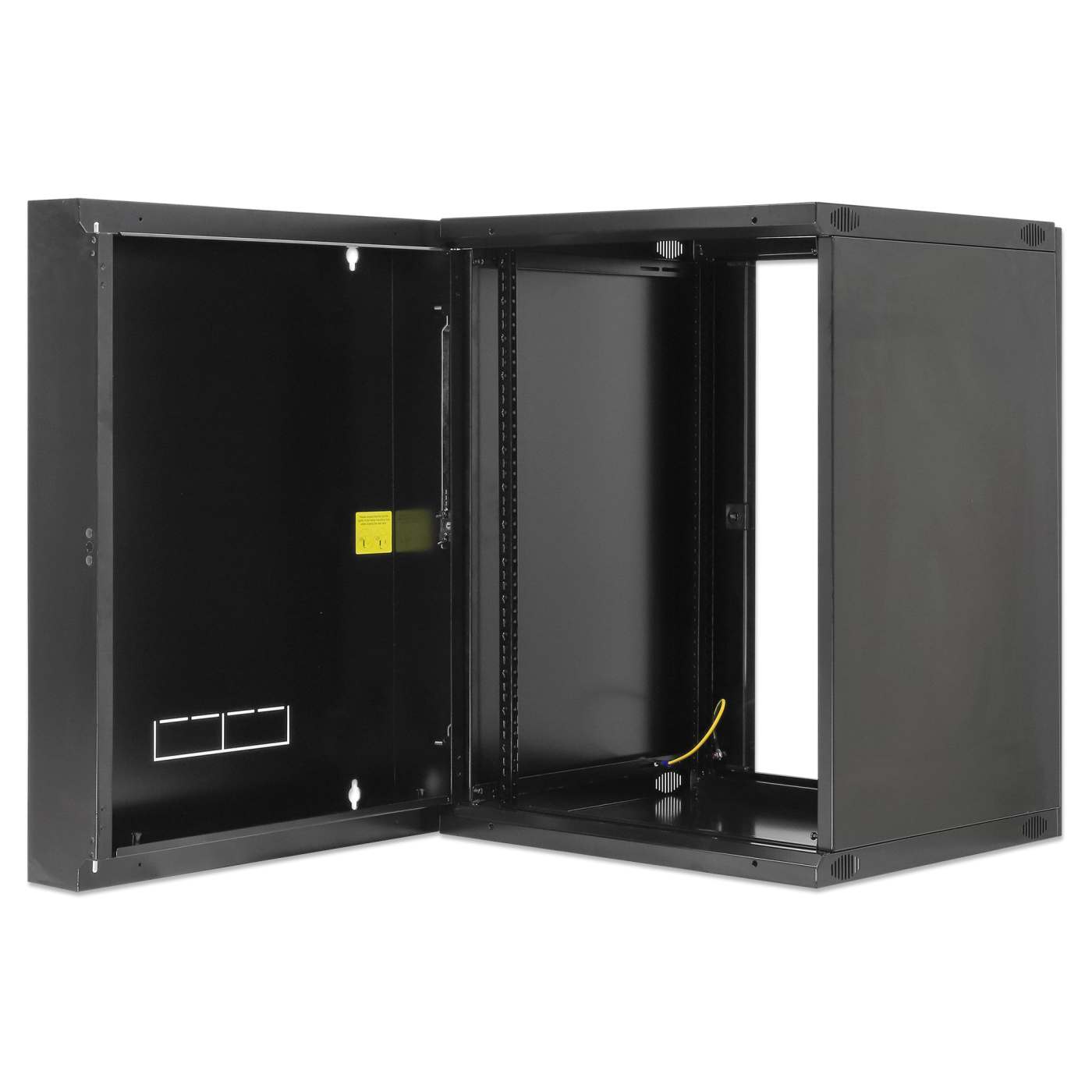

• Rear door for easy access to back of cabinet

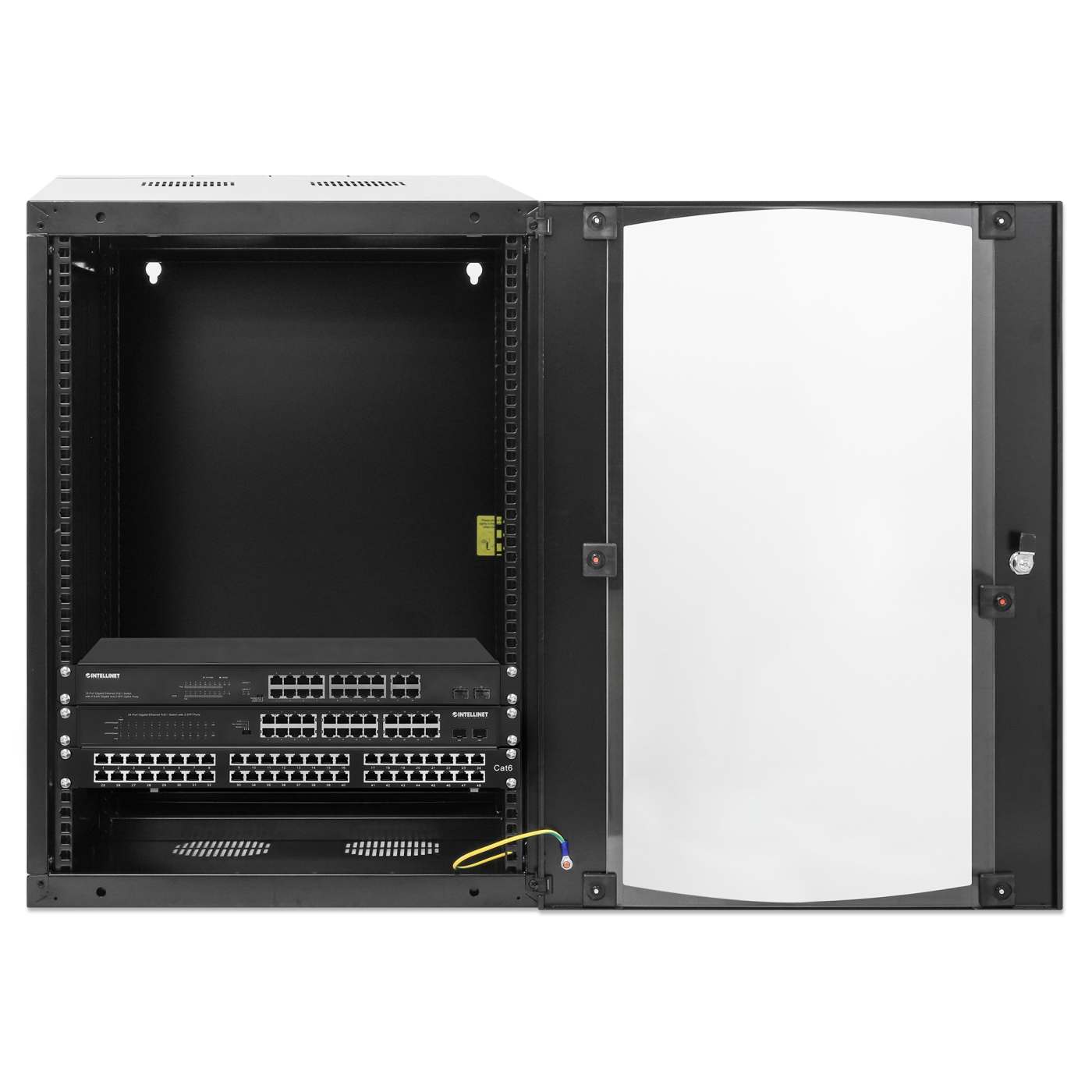

• Reversible Front door
• Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
• Ships Flatpacked
• Three-Year Warranty

General

• 19"

• Height: 15U

• Color: Black RAL7021

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Physical

• 725 (h) x 540 (w) x 600 (d) mm

• 28.54 (h) x 21.26 (w) x 23.62 (d) in.

• Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.)

• Maximum static load: 30 kg (66 lbs.)

  Package Contents

• 2 Rail frames

• Top, Bottom, Front, Back & Side Panels

• Installation hardware including 20x M6 Sets and 4x Keys

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: INC-WMDF-24-15U
• Amazon ASIN: B01C7IVAK6
• EAN: 0766623713887
• UPC: 766623713887



• Physical Specifications

• Product net weight: 26.5 kg
• Product gross weight: 29 kg
• Dimensions: 600 (D) x 540 (W) x 725 (H) [mm]
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download


• Technical Drawing     » Download




• Manual
• Double Section Assembly Guide
  Assembly guide for double section wallmount.     » Download


• Double Section Wallmount Assembly Guide
  Assembly instructions for Double Section Wall-mount Cabinet.     » Download


• Assembly Guide
  QIG with assembly instructions     » Download
