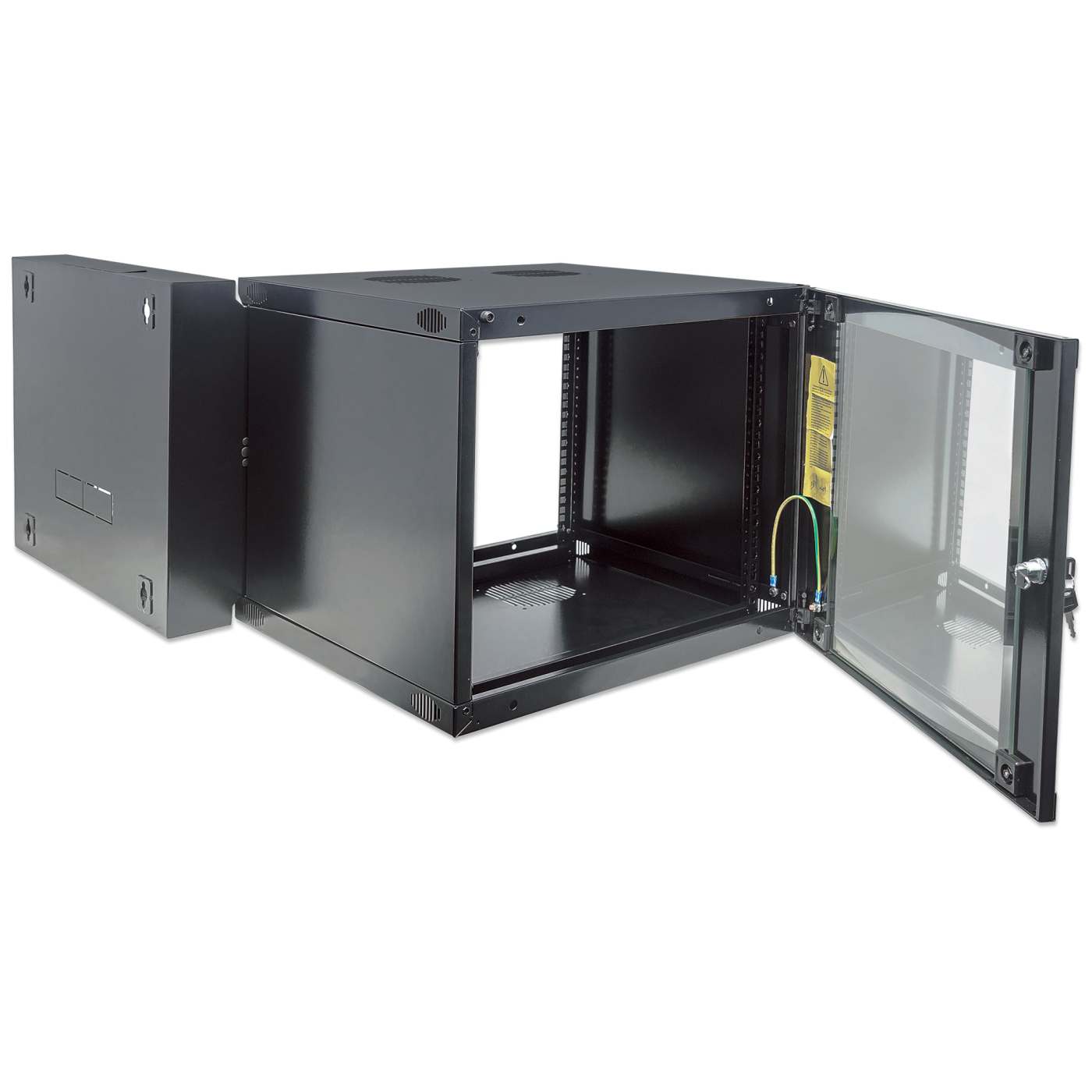

19" Double Section Wallmount Cabinet

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled)*, they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze.

*Completely assembled versions are available in certain countries.

• Ideal for 19" rackmount applications
• Maximum static load of 30 kg
• Usable depth: 385 mm (15.16 in.)
• Cable entry via rear or top panel
• 4MM toughened glass door
• Rear door for easy access to back of cabinet
• Reversible Front door
• Cold-rolled, galvanized SPCC steel with up to 1.5 mm thickness
• Ships Flatpacked
• Three-Year Warranty

General

• 19"

• Height: 12U

• Color: Black RAL7021

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Physical

• 593 (h) x 540 (w) x 600 (d) mm

• 23.35 (h) x 21.26 (w) x 23.62 (d) in.

• Usable depth: 385 mm (15.16 in.)

• Maximum static load: 30 kg (66 lbs.)

  Package Contents

• 2 Rail frames

• Top, Bottom, Front, Back & Side Panels

• Installation hardware including 10x M6 Sets and 4x Keys

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: INC-WMDF-24-12U
• Amazon ASIN: B01C7IV7RW
• EAN: 0766623713863
• UPC: 766623713863



• Physical Specifications

• Weight: 26.3 kg
• Dimensions: 600 (D) x 540 (W) x 593 (H) [mm]
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download


• Cabinet accessory compatibility chart EU
  Cabinet accessory chart for European Market

  English and German PDF Included     » Download


• Technical Drawing
  Packaging     » Download


• Rack & Cabinet Accessory Chart
  Easy guide to show which accessories are appropriate for our cabinet range.There are many other accessories available, please contact our sales team for additional information. USA Market.     » Download


• Technical Drawing     » Download




• Manual
• Double Section Wallmount Assembly Guide
  Assembly instructions for Double Section Wall-mount Cabinet.     » Download
