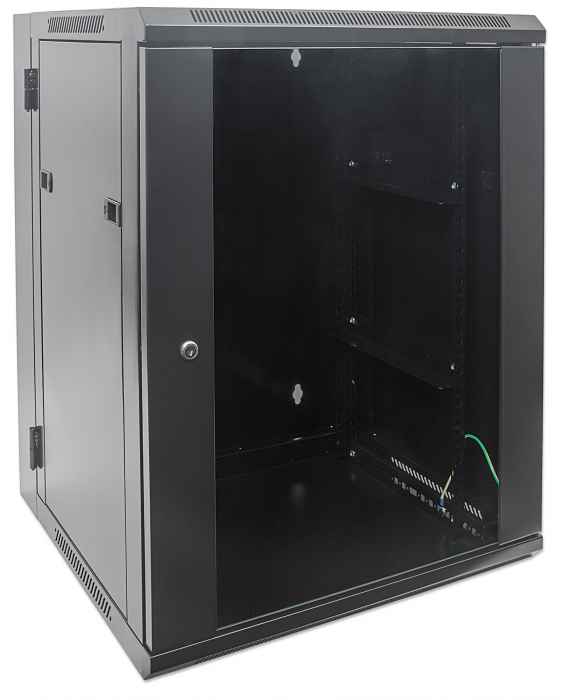

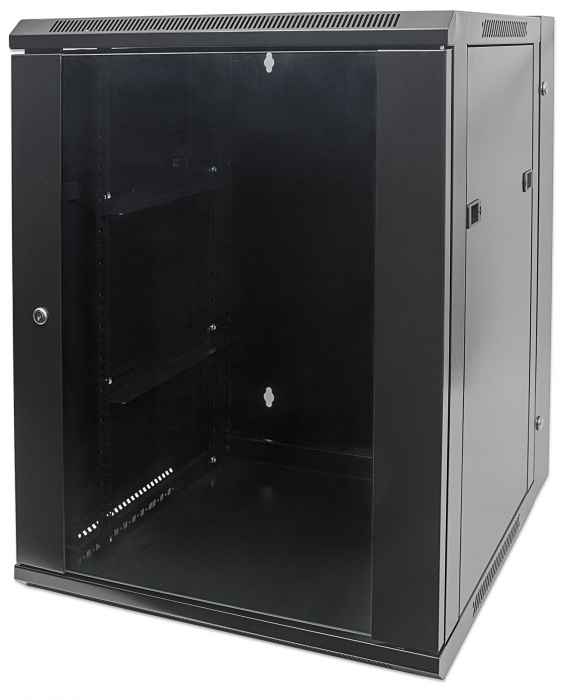

15U 19-Inch Swing-Out Wall Mount Network Cabinet, Hinged Back, 21.7" Deep, Lockable Glass Door, Black

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.

• Fits standard 19 in. rackmount equipment
• Max static load: 66 lb
• Distance between front and rear mounting rails: 10.31–14.53 in
• Maximum usable device depth: Up to 17.5 in (approx.)

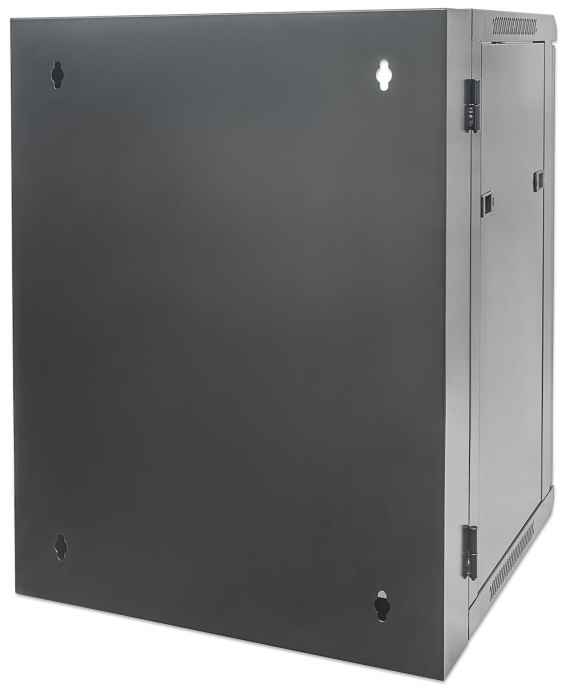

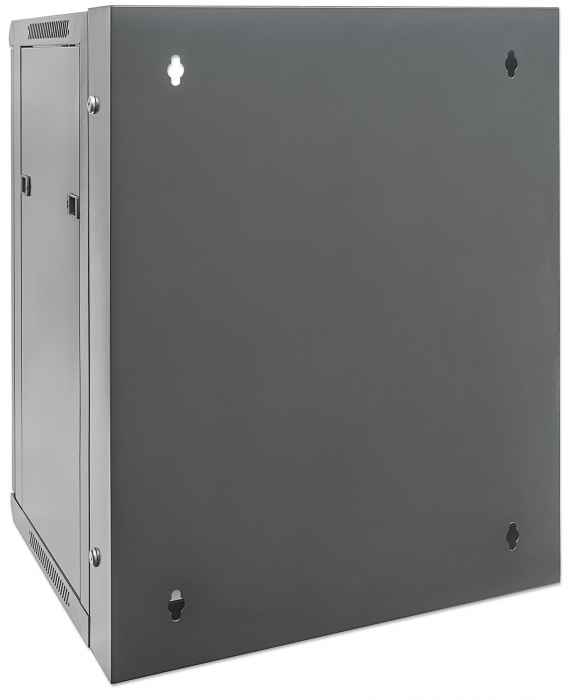

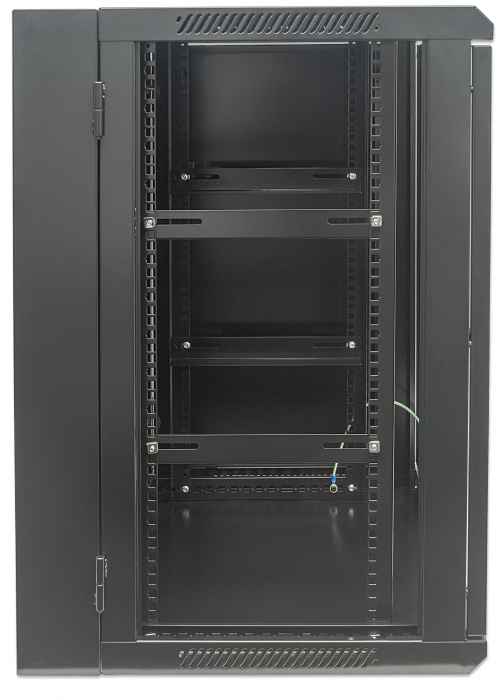

• Swing-out hinged-back design

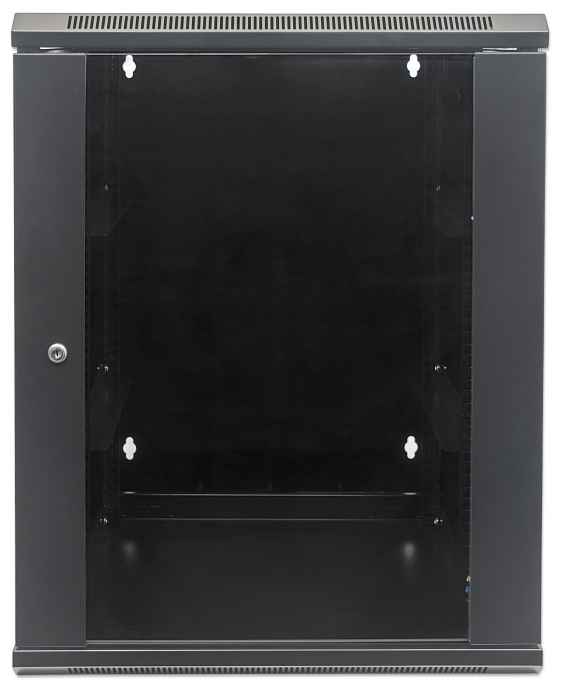

• Lockable tempered-glass front door
• Cable entry via top panel
• Cold-rolled SPCC steel construction
• Ships assembled
• 3-year warranty

General

• 19"

• Height: 15U

• Color: Black RAL 9004

• Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

  Physical

• 770 (h) x 600 (w) x 550 (d) mm

• 30.3 (h) x 23.6 (w) x 21.7 (d) in.

• Usable depth: 62 mm (2.44 in.) to 369 mm (14.53 in.)

• Maximum static load: 30 kg (66 lbs.)

  Package Contents

• Double section wall mount

• Installation hardware including tool, 20x M6 Sets and 6x Keys

Warning

This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: INC-WMDA-22-15U
• Amazon ASIN: B00NYQRLRW
• EAN: 0766623712019
• UPC: 766623712019



• Physical Specifications

• Product net weight: 27.5 kg
• Product gross weight: 31 kg
• Dimensions: 770 x 600 x 550 (mm)
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download


• Technical Drawing
  Cabinet     » Download




• Manual
• Double Section Wallmount Assembly Guide
  Assembly instructions for Double Section Wall-mount Cabinet.     » Download
