19" Double Section Wallmount Cabinet
19" Double Section Wallmount Cabinet
9U, 500 mm (19.7 in.) Depth, Assembled, Black
SKU: 711845 INC-WMDA-20-9U
Highlights
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg (66 lb.)
- Usable depth: 425 mm (16.73 in.)
Regular price
$296.99 USD
Regular price
Sale price
$296.99 USD
Unit price
/
per
Shipping calculated at checkout.
Request access to dealer pricing here.
Couldn't load pickup availability

[ view high resolution images ]

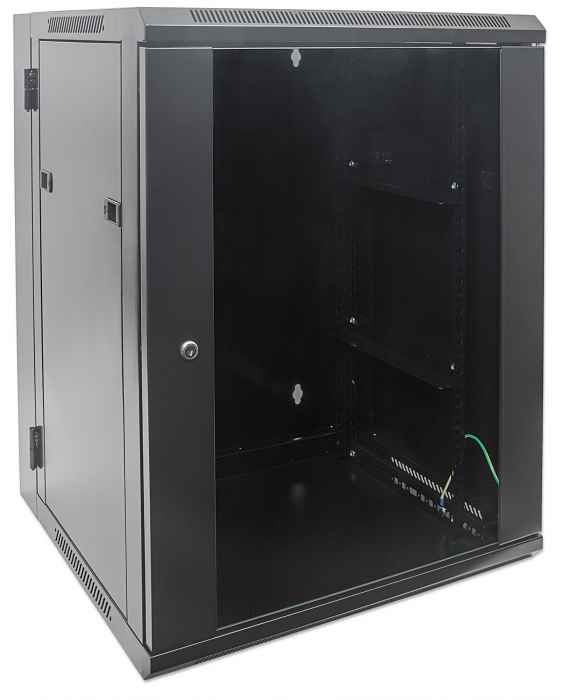

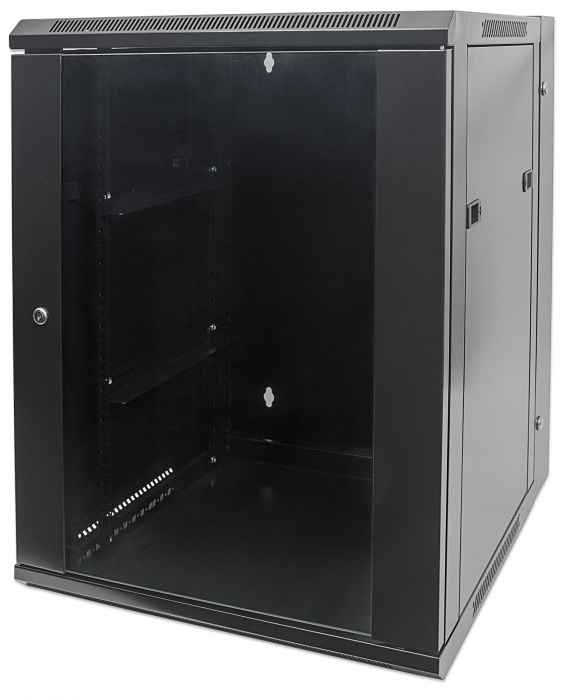

Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg (66 lb.)
- Usable depth: 425 mm (16.73 in.)

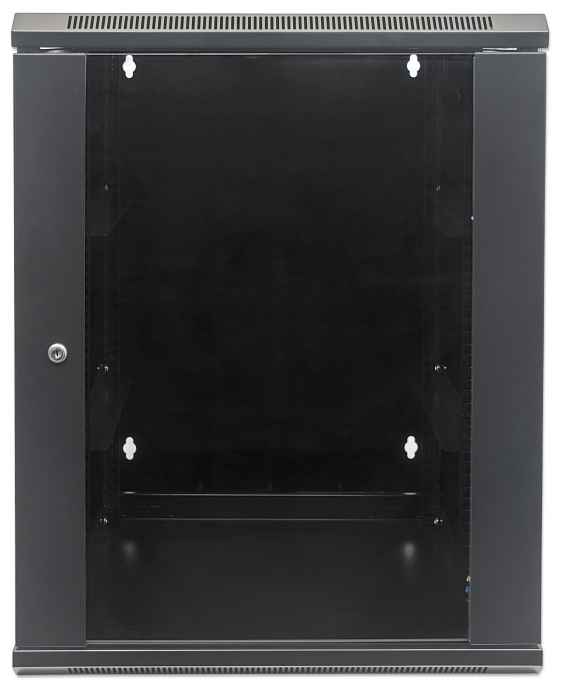

- Tempered-glass door can be opened more than 180°
- Cable entry via top panel

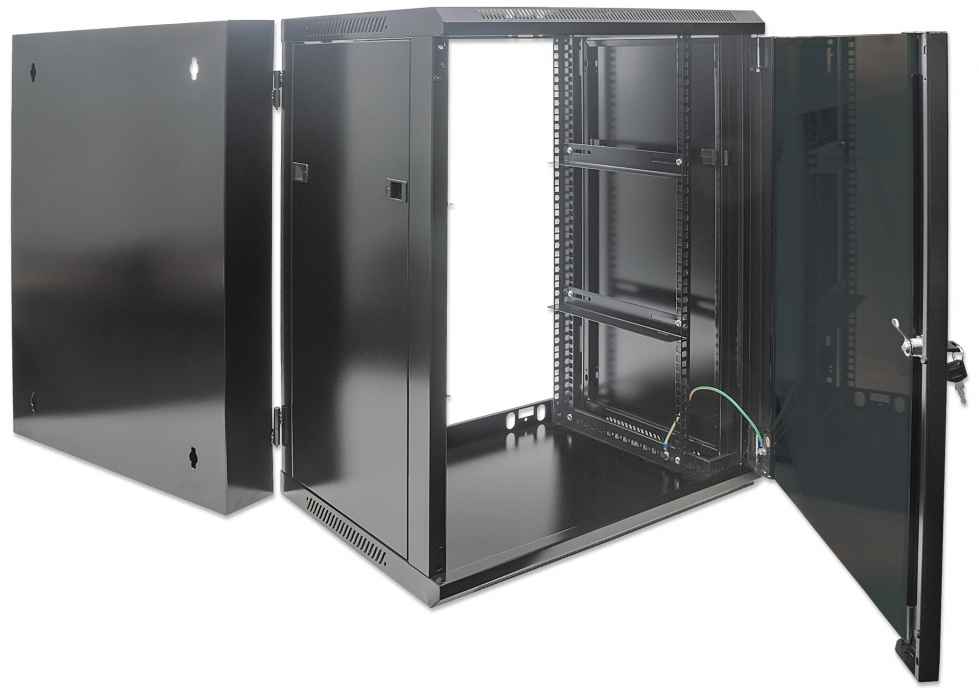

- Rear door for easy access to back of cabinet
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door
- Easily removable side panels
- Ships assembled
- Three-year warranty
- General
- 19"
- Height: 9U
- Color: Black RAL9005
- Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7
Physical - 500 (h) x 600 (w) x 550 (d) mm
- 19.7 (h) x 23.6 (w) x 21.7 (d) in.
- Usable depth: 425 mm (16.73 in.)
- Maximum static load: 30 kg (66 lbs.)
Package Contents - Double section wall mount
- Installation hardware including tool, 10x M6 Sets and 4x Keys
Additional SKUs
- Alphanumeric Part#: INC-WMDA-20-9U
- Amazon ASIN: B00NYQR1L8
- EAN: 0766623711845
- UPC: 766623711845
Physical Specifications
- Weight: 21 kg
- Dimensions: 500 x 600 x 550 (mm)
- Packaging: Brown Box
Warning
This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.- Datasheet
- Datasheet » Download
- Cabinet accessory compatibility chart EU
Cabinet accessory chart for European Market
English and German PDF Included » Download - Technical Drawing
Cabinet » Download - Rack & Cabinet Accessory Chart
Easy guide to show which accessories are appropriate for our cabinet range.There are many other accessories available, please contact our sales team for additional information. USA Market. » Download - Manual
- Double Section Wallmount Assembly Guide
Assembly instructions for Double Section Wall-mount Cabinet. » Download
