19" 1U Rackmount 8-Output Power Distribution Unit (PDU)

Rack mount 8-way 19" power strip - power up to eight devices in your network

Plug your networking, telecom, surveillance, AV or other electronics into this 8-outlet 19” PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features eight EU Type E/F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. The illuminated on/off switch provides one-touch control over all connected devices and has a protective hinged cover to prevent accidental shutdown.

• 8-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
• Built-in 2 m power cord with EU CEE 7/7 (Type E/F) plug

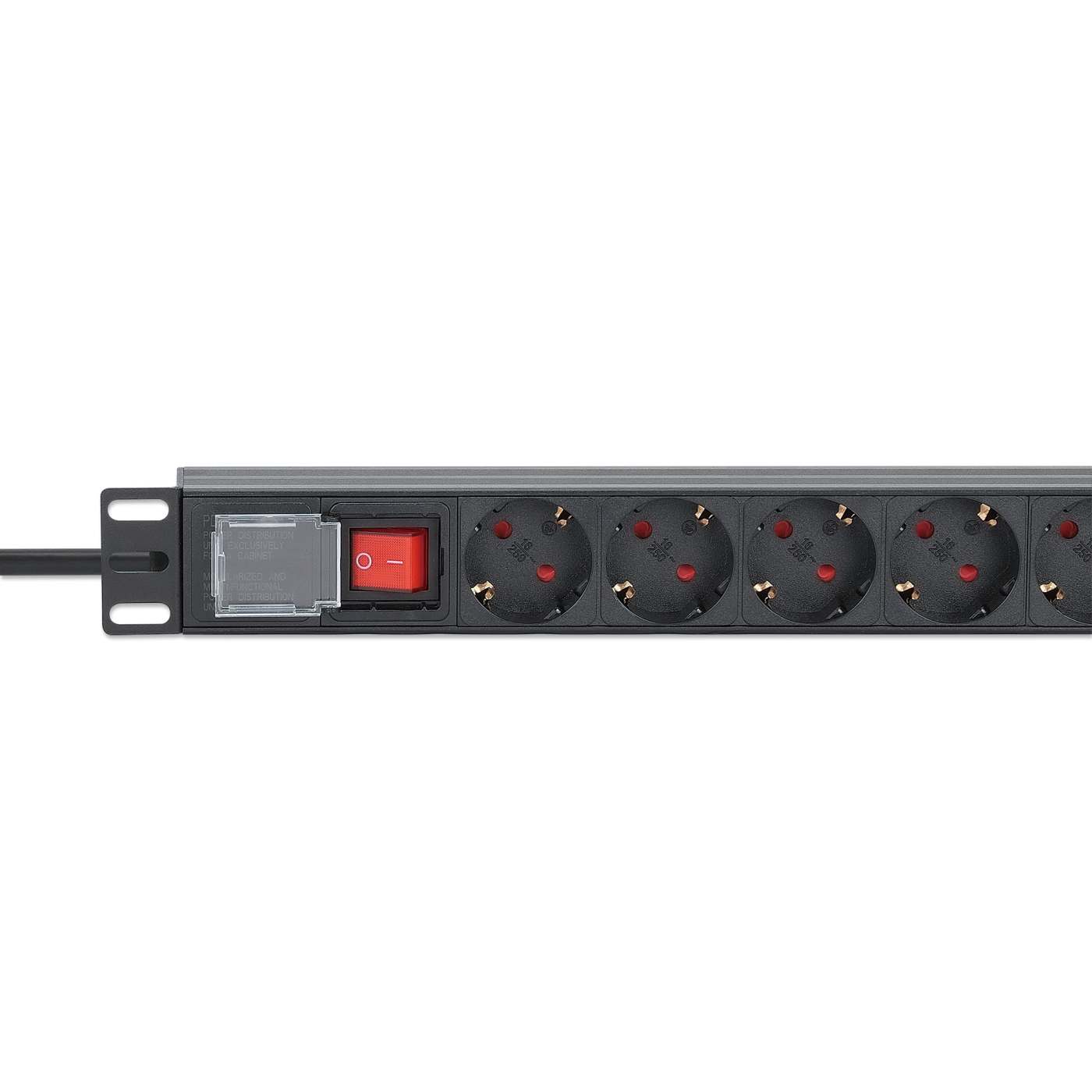

• Illuminated two-pole on/off safety switch with protective cover to prevent accidental shutdown
• Sockets with increased touch protection through contact shutters

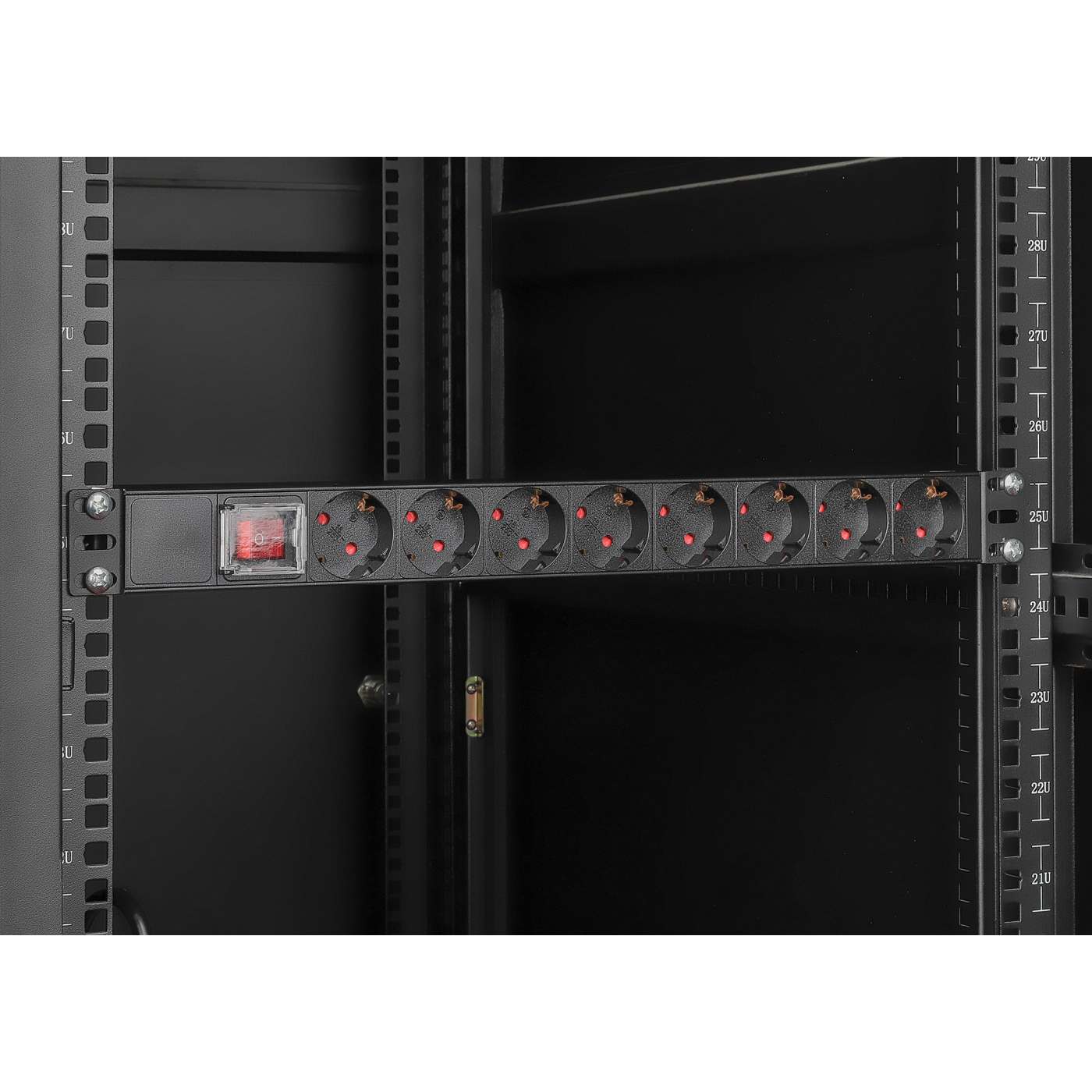

• Horizontal 1U 19" rack-mount installation
• Angled outlet orientation
• Durable aluminum construction
• Grounding point to protect equipment from external electrical surges
• Bracket installation style: frontal
• For indoor use only
• Three-year warranty

Standards and Certifications

• CE

• RoHS

• REACH

• IEC 60297

• IEC 60884

  Electrical

• AC input: 220.0 - 250.0 V; 50 - 60 Hz

• Operating voltage: 230.0 V

• Plug standard: EU CEE 7/7 (Type E/F); IEC 60884

• Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884

• Maximum load: 4,000.0 W

• Overload protection: 16.0 A maximum load current

  Physical

• Dimensions (L x W x H): 45 x 483 x 45 mm

• 1U rack mount

• Cable length: 2 m

• Cable type: H05VV-F 3G 1.5 mm²

• Socket angle: 35°

• Net weight: 800 g

• Gross weight: 900 g

• Housing: aluminum

  Package Contents

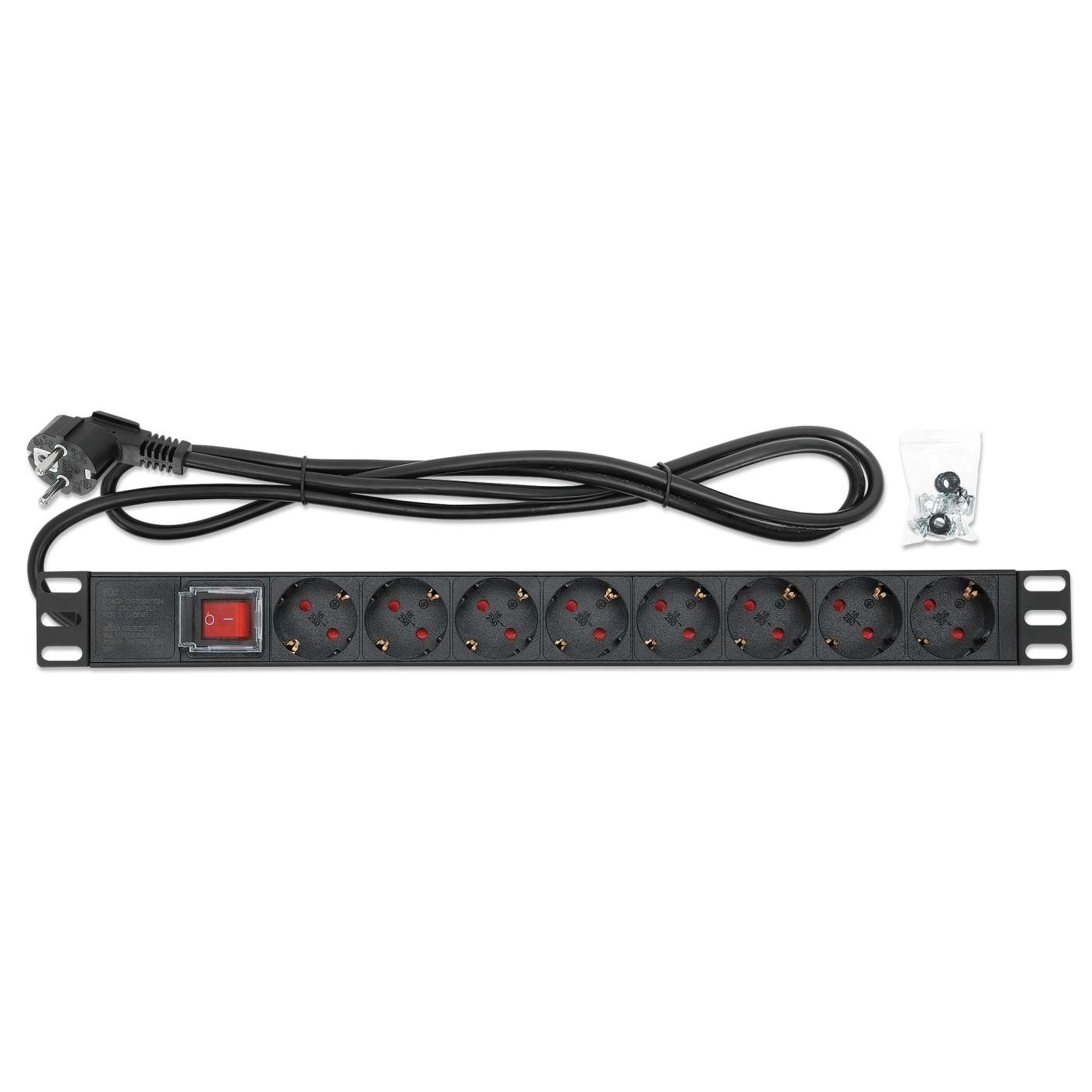

• 19" 1U Rack Mount 8-Output Power Distribution Unit (PDU)

  This product is part of a group; the complete list of variations follows:

• #714914 - 1U 6-Way with On/Off Switch

• #711432 - 1.5U 6-Way with Double Air Switch

• #713962 - 1.5U 6-Way with On/Off Switch and Surge Protection

• #715140 - 1U 7-Way with Surge Protection

• #714006 - 1.5U 7-Way with Surge Protection

• #714037 - 1U 8-Way

• #715126 - 1U 8-Way with On/Off Switch

• #713986 - 1U 8-Way with On/Off Switch and Overload Protection

• #715133 - 1U 9-Way with On/Off Switch

• #714044 - Vertical Rack Mount 12-Way with On/Off Switch and Overload Protection

• #711449 - Vertical Rack Mount 12-Way with Single Air Switch

• #714051 - 2U 15-Way with Double Air Switch

Warning

This product can expose you to chemicals including Bisphenol-A, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• EAN: 0766623715126
• UPC: 766623715126



• Physical Specifications

• Product net weight: 0.8 kg
• Product gross weight: 0.9 kg
• Dimensions: 45 (L) x 483 (W) x 45 (H) [mm]
• Packaging: Brown Box

• Datasheet
• Datasheet     » Download




• Manual
• Quick Instruction Guide     » Download
