1.5 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow
1.5 m LC to LC UPC Fiber Optic Patch Cable, 2.0 mm, Duplex, OFNR, Singlemode BIF, Yellow
9/125 µm, Bend Insensitive Fiber Cable G.657.A1, 4.9 ft
In stock
Buy at discounted prices
Qty | Discount | New unit price |
---|---|---|
5 | 5% off | $5.12 per unit |
10 | 10% off | $4.85 per unit |
20 | 15% off | $4.58 per unit |
50 | 20% off | $4.31 per unit |
Highlights
- Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
- UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
- OS2 Single Mode Fiber: Uses OS2 single mode fiber, providing superior performance and longevity for high-speed network connections.
[ view high resolution images ]
Share
Our cutting-edge fiber optic solutions provide unmatched connectivity.
Our versatile connectivity options ensure optimal performance in entrance facilities, telecommunications rooms, data centers, and even at the desk for interconnect and cross-connect applications. We use UPC (Ultra Physical Contact) fiber connectors for better surface finish and return loss, improving network quality.
Our OS2 single mode fiber products are ideal for high-speed network connections due to their performance and durability. Our fiber optics are ideal for 40G Ethernet and beyond due to low signal loss and high data rates. The bend-insensitive design reduces cable attenuation when bent or twisted, improving installation and maintenance efficiency.
Our cables, made from Corning optical fiber ultra-pure glass, have low attenuation and high bandwidth for high-speed, long-distance communication. Furthermore, our products have a lifetime warranty, protecting your investment for years. Choose our fiber optic solutions for long-lasting, high-performance connectivity.
- Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
- UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
- OS2 Single Mode Fiber: Uses OS2 single mode fiber, providing superior performance and longevity for high-speed network connections.
- Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
- Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
- Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
- Each cable ships with the test report included
- Lifetime Warranty

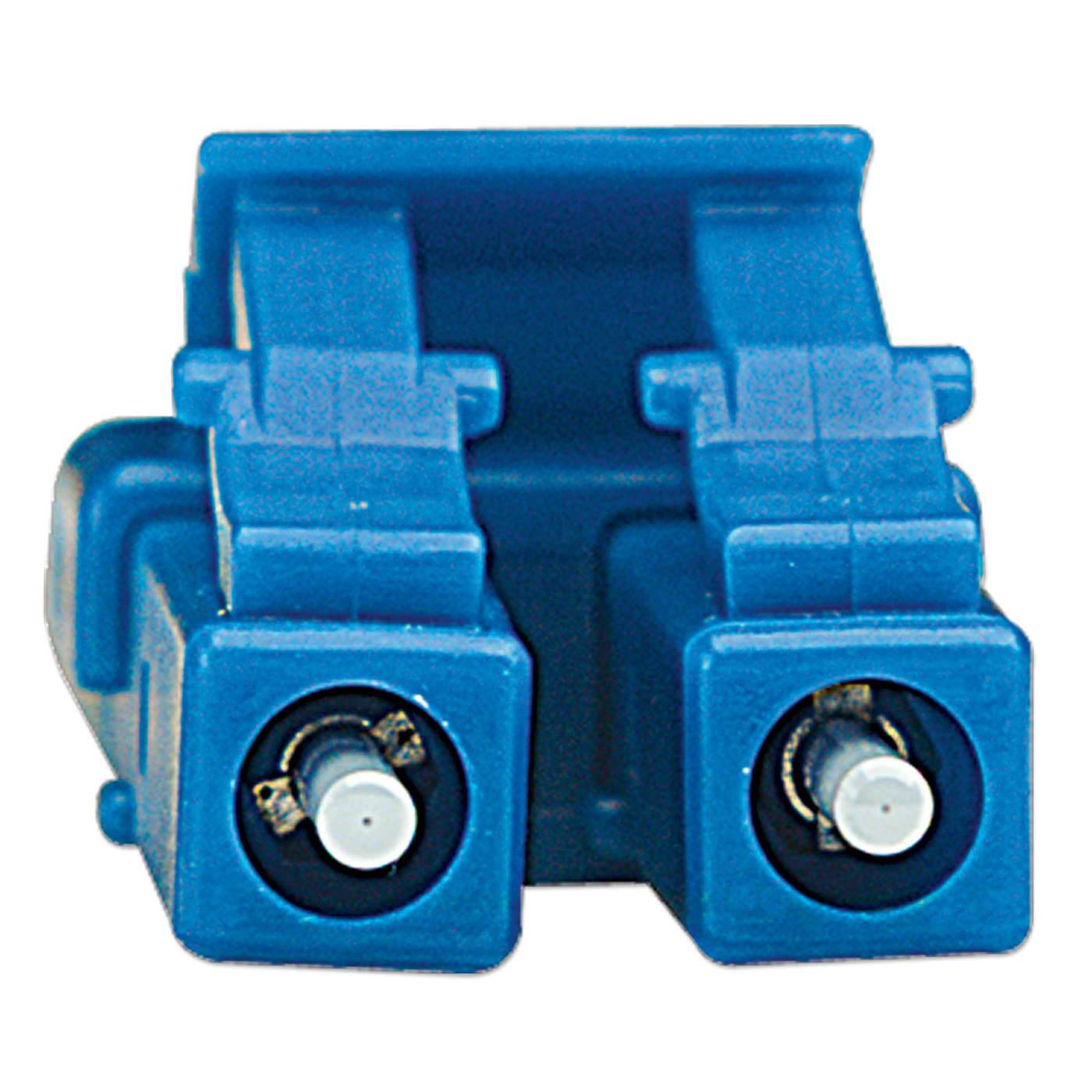

- Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Fiber grade: G.657.A1 (Compatible with G.652.D)
Bend Radius: 10.0mm
Fiber mode: Single Mode OS2 9/125μm
Wavelength: 1310/1550nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: ≤0.3dB (1310nm/1550nm), typical ≤0.2dB
Return loss: ≥55dB (1310nm/1550nm)
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.25dB/km
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -40°C +85°C
Additional SKUs
- EAN: 0766623751643
- UPC: 766623751643
Physical Specifications
- Product net weight: 0.05 kg
- Product gross weight: 0.06 kg
- Dimensions: 1.5 m
- Packaging: Bag
