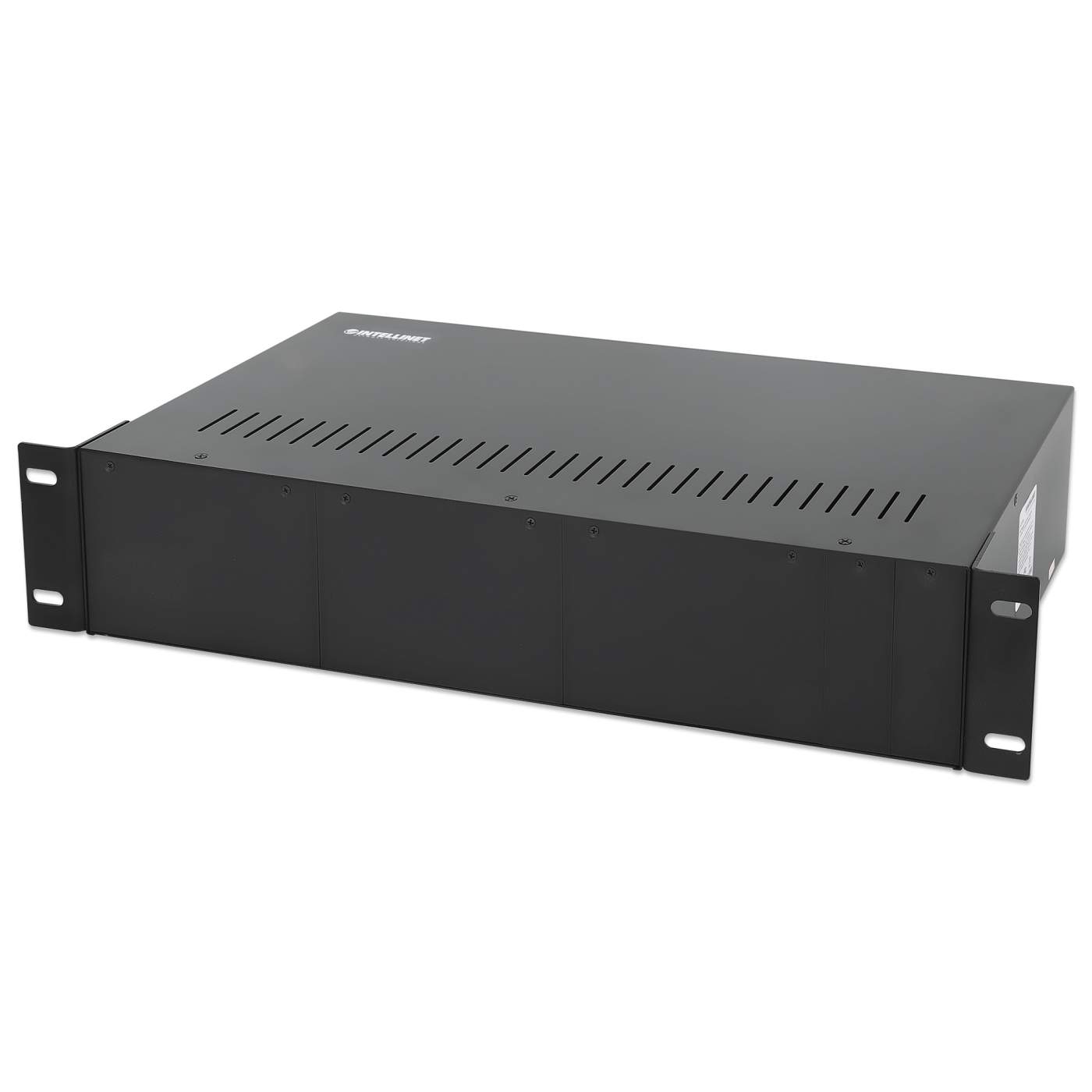

14-Slot Media Converter Chassis

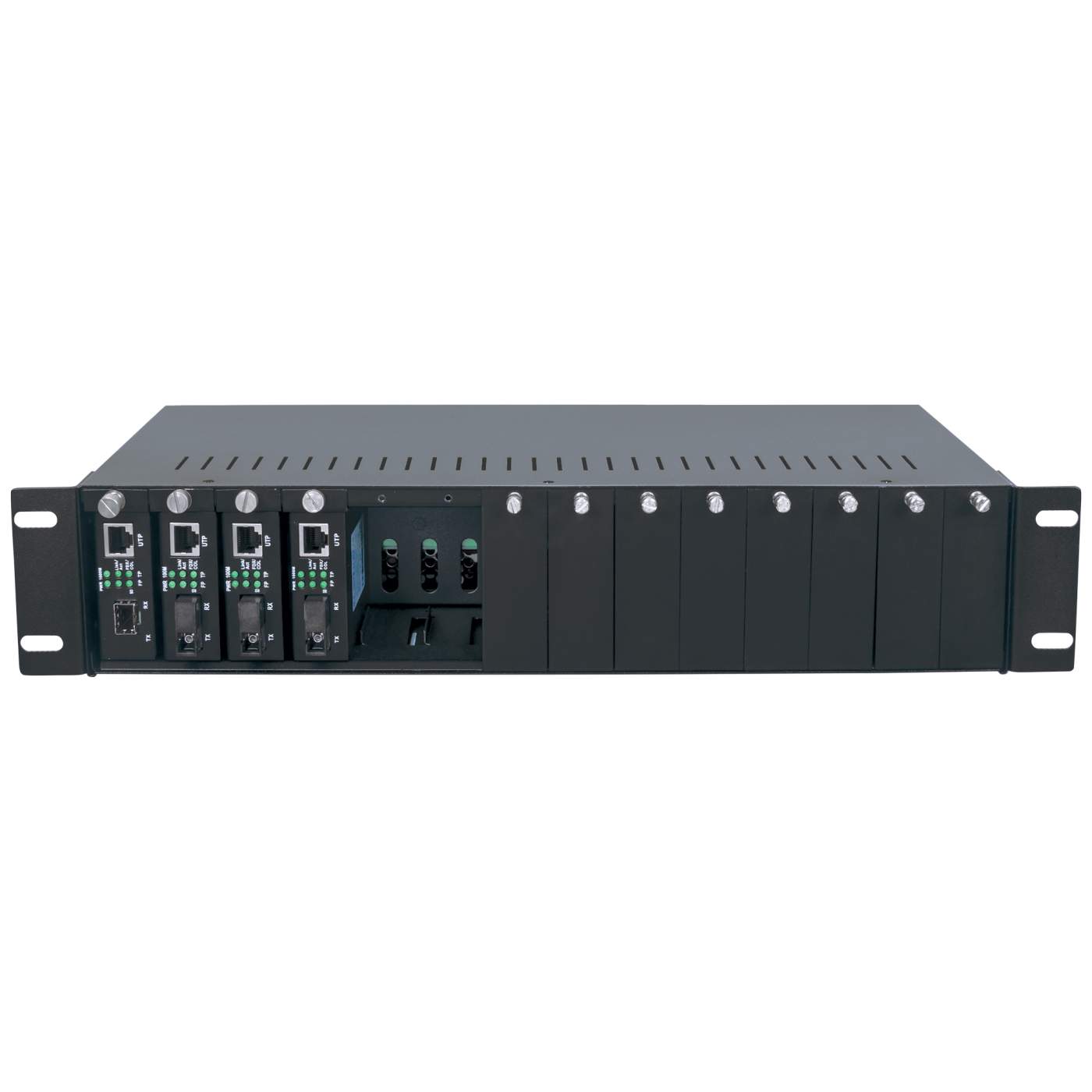

The Intellinet Network Solutions 507356 Media Converter Chassis accommodates up to 14 media converters in a single unit

Reliability and Functionality

The 507356 Media Converter Chassis allows hot-swapping the media converters, and provides strong redundancy due to its two integrated power supplies. Two high-volume cooling fans ensure a cool operating environment.

• High-quality 19" rackmount steel chassis
• Supports up to 14 stand-alone media converters

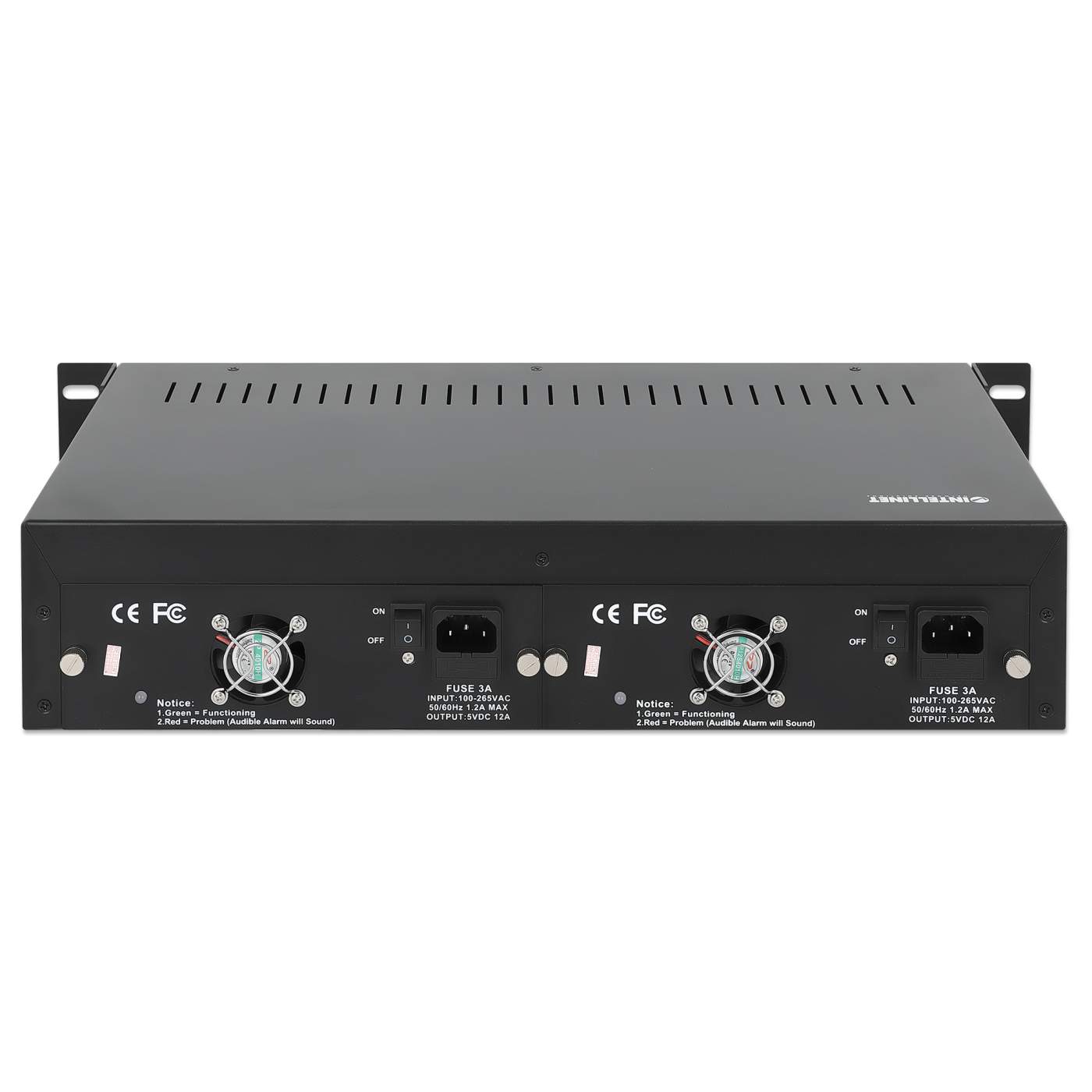

• Two internal 100 – 260V universal switching power supplies avoid network downtime and protect your converter investments
• Power supplies support load sharing, and circuit-breakers protect against over voltage and short circuits
• Two high-volume cooling fans ensure perfect ventilation
• Slot power isolation ensures each slot is electrically isolated from the next
• Three-Year Warranty

• Capacity: 14 slots for up to 14 media converters

• Occupies 2 height units (2U)

• Certifications: FCC Class A, CE

  Compatibility

• Fast Ethernet Media Converter 506502

• Fast Ethernet Media Converter 506519

• Fast Ethernet Media Converter 507332

• WDM Fast Ethernet Media Converter 510530

• WDM Fast Ethernet Media Converter 510547

• Gigabit Ethernet Media Converter 506533

• Gigabit Ethernet Media Converter 507349

• Gigabit Ethernet Media Converter 510493

• WDM Gigabit Ethernet Media Converter 545068

• WDM Gigabit Ethernet Media Converter 545075

  LEDs

• LED for each power supply

  Power

• Input: 100 – 260 VAC

• Output: 5 VDC

  Environmental

• Material: aluminum/steel

• Dimensions: 482 (L) x 231 (W) x 90 (H) mm / 19 (L) x 9.09 (W) x 3.54 (H) in.

• Weight: 4.7 kg (10.3 lbs.)

• Operating temperature: 0 – 50°C (32 – 122°F)

• Operating humidity: 5 – 95% RH, non-condensing

• Storage temperature: -20 – 85°C (-4 – 185°F)

  Package Contents

• Media Converter Chassis with 2 integrated power supplies

• 14 media converter carries brackets

• Installation instructions

Warning

This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Alphanumeric Part#: IMCC-14
• Amazon ASIN: B01AW2LSEM
• EAN: 0766623507356
• UPC: 766623507356



• Physical Specifications

• Product net weight: 4.96 kg
• Product gross weight: 5.7 kg
• Dimensions: 482 (L) x 231 (W) x 90 (H) [mm]
• Packaging: Brown Box
