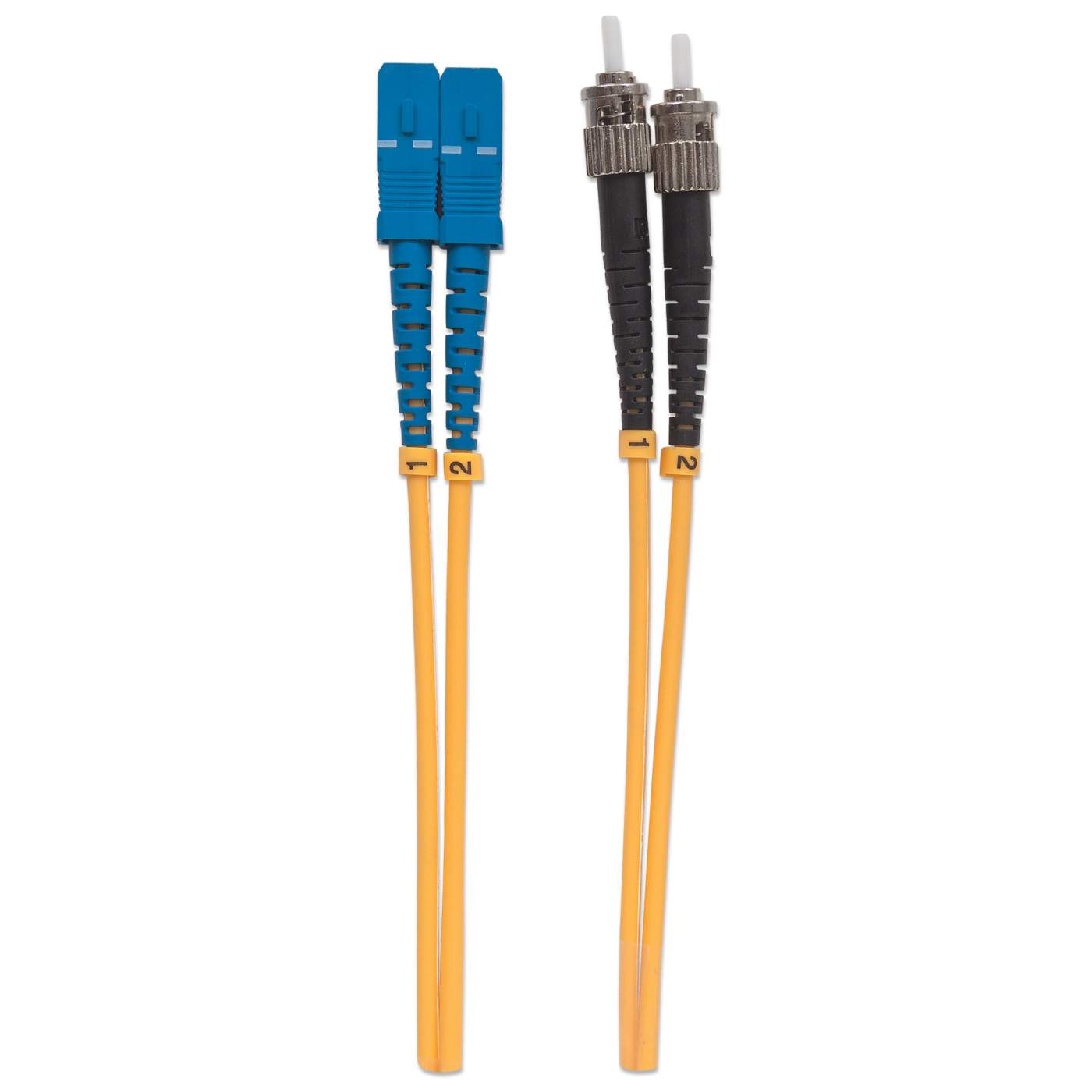

10 m ST to SC UPC Fiber Optic Patch Cable, 3.0 mm, Duplex, LSZH, OS2 Singlemode, Yellow
10 m ST to SC UPC Fiber Optic Patch Cable, 3.0 mm, Duplex, LSZH, OS2 Singlemode, Yellow
9/125 µm, 33 ft.
In stock
Buy at discounted prices
Qty | Discount | New unit price |
---|---|---|
5 | 5% off | $21.84 per unit |
10 | 10% off | $20.69 per unit |
20 | 15% off | $19.54 per unit |
50 | 20% off | $18.39 per unit |
Highlights
- Achieve optimal connectivity with UPC (Ultra Physical Contact) ST to SC fiber connectors, ensuring a superior surface finish and reduced return loss for seamless data transmission.
- Seamlessly integrate into single-mode fiber applications, enhancing compatibility and versatility for various networking needs.
- Experience reliable performance over extended distances with high bandwidth support, catering to the demands of modern networking infrastructures.
- Minimize signal loss and maximize data rates with our fiber cables, guaranteeing efficient and uninterrupted data transfer for your critical operations.
- Future-proof your network with fiber cables perfect for 10G Ethernet applications and beyond, ensuring scalability and performance for evolving technological requirements. Plus, enjoy peace of mind with our lifetime warranty, providing long-term protection for your investment.
[ view high resolution images ]
Share
Information carried in the form of light provides a vast array of features and benefits.
Superior Transmission Distance
It is not unusual for optical systems to go over 100 kilometers (km), or about 62 miles.
Enhanced Security
It is impossible to remotely detect a signal being transmitted within a fiber cable. The only way to do so is by actually accessing the optical fiber itself. This makes fiber extremely attractive to governmental bodies, banks and other businesses with major security concerns.
No Metallic Components
Fiber optic cable can be installed in areas with electromagnetic interference (EMI). This includes areas around utility lines, power-carrying lines and railroad tracks. Fiber is also ideal for areas of high lightning-strike incidence.
- High bandwidth supporting long distances
- Low signal loss and high data rate
- Perfect for use in 10 Gigabit Ethernet applications and beyond
- Lifetime Warranty
- Diameters:
- Core: 9 µm
- Cladding: 125 µm - Fiber type: single-mode
- Connectors: ST to SC
- Duplex
- Jacket material: LSZH
- Jacket OD: 3.0 mm
- Jacket color: yellow
- Ferrule Material: Ceramic
- Polishing: UPC
- Operation Temperature Range: -40°C to +75°C
- Bending radius: 30 mm
- Return loss: ≥55dB
- Insertion loss: ≤ 0.25 dB
Additional SKUs
- EAN: 0766623751308
- UPC: 766623751308
Physical Specifications
- Product net weight: 0.13 kg
- Product gross weight: 0.13 kg
- Dimensions: 10 m
- Packaging: Bag
Warning
This product can expose you to chemicals including BPA, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.- Datasheet
- Datasheet » Download
