PoE Injectors Explained: Add Power to Your Network
Power over Ethernet Explained
What Is a PoE Injector and When Do You Need One?
A network switch does not have to provide Power over Ethernet for you to connect PoE-powered equipment. A PoE injector adds electrical power to an existing Ethernet connection, allowing compatible access points, cameras, IP phones and other devices to receive power and data over the same network cable.
The Basics
What Does a PoE Injector Actually Do?
A PoE injector sits between a standard Ethernet switch and a PoE-compatible powered device. It receives a normal data connection from the switch, adds electrical power and sends the combined power-and-data connection to the device.
This makes an injector especially useful when your existing switch already provides the network performance you need but does not have built-in PoE ports. Rather than replacing the entire switch, you can add PoE only to the connections that require it.
A typical setup is straightforward. An Ethernet cable runs from a standard LAN port on the network switch to the injector's data input. The injector connects to AC power, adds electrical power to the connection and sends power and data through a second Ethernet cable to the powered device.
Why Use a PoE Injector?
PoE is useful because devices such as wireless access points and network cameras are often installed where convenient electrical outlets are not available. By carrying electrical power and network data through the same Ethernet cable, the device can be positioned based on where it works best rather than where an AC outlet happens to be located.
An injector can also make sense when only one or a few devices require PoE. If the rest of the network is already working with a non-PoE switch, adding an injector to individual connections can extend the usefulness of that infrastructure without changing every switch port.
Add Power
Add PoE to a network connection without replacing a non-PoE switch.
Power + Data
Carry network traffic and electrical power over the same Ethernet connection.
Flexible Placement
Position compatible equipment where an AC outlet may not be nearby.
Standardized Power
IEEE PoE standards help compatible devices receive the appropriate amount of power.
Run an Ethernet cable from a standard LAN port on your non-PoE switch to the injector's data input.
Connect the injector to AC power. The unit combines electrical power with the Ethernet data connection.
A second Ethernet cable carries both power and data from the injector to the compatible powered device.
Simple way to think about it: a PoE injector turns an ordinary Ethernet connection into a power-and-data connection for a compatible PoE device.
Install compatible access points in locations where network cabling is available but a nearby power outlet is not.
Deliver network connectivity and power to compatible surveillance cameras over a single Ethernet run.
Add PoE to individual voice-network connections when the existing switch does not provide powered ports.
Keep an existing non-PoE switch while adding powered equipment only where the network requires it.
Understanding Power Levels
PoE, PoE+ and PoE++ Are Not the Same
IEEE PoE standards define different power levels. Matching the injector to the powered device matters because equipment such as phones, access points, cameras and other network devices can have very different power requirements.

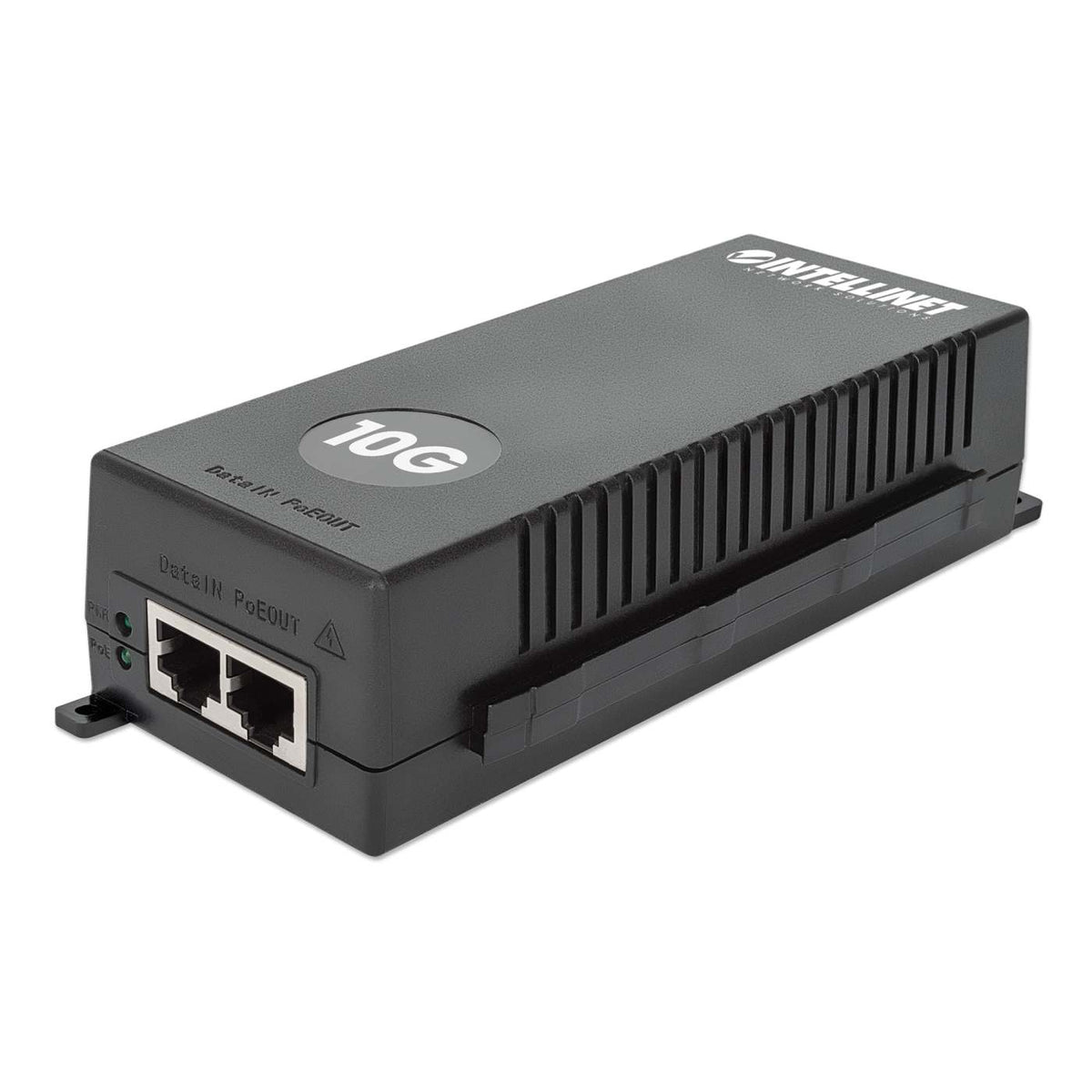

For the 10G 30W injector: Model 561884 supports IEEE 802.3af and IEEE 802.3at devices and provides a maximum PoE power budget of 30 W.
A PoE injector does not increase the data capability of the cable. For a 10G connection, use cabling rated for the required 10GBASE-T distance and installation.
Solid-copper Ethernet cabling is preferred for PoE installations. Copper-clad aluminum has greater electrical resistance, which can increase power loss and heat compared with equivalent solid-copper conductors.
For 10G installations: Model 561884 supports Cat6, Cat6a and Cat8 cabling for 10GBASE-T, while lower data rates can use the appropriate supported cable category for that Ethernet standard.
Detects compatible IEEE 802.3af/at powered devices before supplying PoE.
Built-in protection helps protect connected networking equipment from electrical faults.
Protection is included against current overload and high-voltage conditions.
Choosing the Right Approach
PoE Injector or PoE Switch?
Both can provide Power over Ethernet, but they solve different network requirements. The better fit depends largely on how many devices need PoE and whether the existing switch needs to be replaced.
A PoE Injector Makes Sense When...
A PoE Switch Makes Sense When...
Important: Choosing a PoE injector means checking both sides of the specification: the PoE standard and wattage must match the device's power requirements, while the injector's Ethernet speed must support the network connection you want to maintain.
Quick Answers
Common PoE Injector Questions
Does a PoE injector replace a network switch?
No. An injector is used alongside the network switch. It receives data from a switch port, adds PoE power and sends the combined connection to a compatible powered device.
Can I use a PoE injector with a non-PoE switch?
Yes. That is one of the main reasons to use an injector. It allows a standard non-PoE Ethernet switch port to support a compatible PoE-powered device.
Does a PoE injector carry both power and data?
Yes. The output connection from the injector carries network data and electrical power over the Ethernet cable to a compatible powered device.
How far can PoE run?
Standard Ethernet connections are generally designed around a maximum channel distance of 328 ft. Model 561884 supports power and data connections up to 328 ft.
Can the 30W injector be used with Wi-Fi 6 or Wi-Fi 7 access points?
It can be used with compatible IEEE 802.3af/at access points whose power requirements fit within its PoE+ output. Its multigigabit Ethernet support also includes 2.5G, 5G and 10G connections.
A PoE injector can be a straightforward way to add powered network equipment without rebuilding the rest of the network. By matching the injector's power standard, wattage and Ethernet speed to the connected device, you can add PoE where it is needed while continuing to use existing switching infrastructure.
