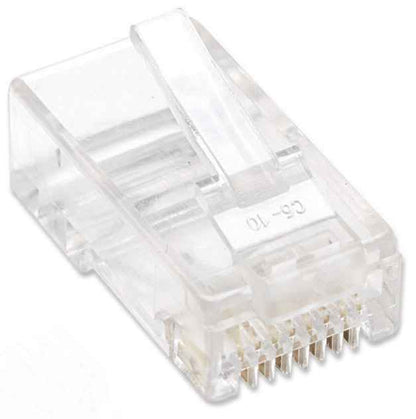

100-Pack Cat5e RJ45 Modular Plugs

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide customers with options for Cat5 and Cat5e cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

• Cat5e RJ45 modular plug
• 15 µ gold plated contacts
• Three-prong terminal for solid wire
• Supports 24 to 26 AWG
• Fits round cable
• For unshielded twisted pair applications
• Standard 8P8C design, compatible with all network RJ45 connections
• Fully compatible with Category 3, 4, 5 and 5e applications
• Lifetime Warranty

Standards

• Category 5 (ANSI/TIA/EIA-568-A)

• Category 5e (TIA/EIA-568-B)

  Material

• Insulator: polycarbonate rated UL 94V-2

• Contacts: phosphor bronze

  Contact Plating

• 15-micron gold

  Package Contents

• 100 Cat5e RJ45 Modular Plugs in jar

Warning

This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

---

• Additional SKUs

• Amazon ASIN: B07FM87YSD
• EAN: 0766623502399
• UPC: 766623502399



• Physical Specifications

• Weight: 0.21 kg

• Datasheet

• Datasheet     » Download


• Declaration of Conformity     » Download
